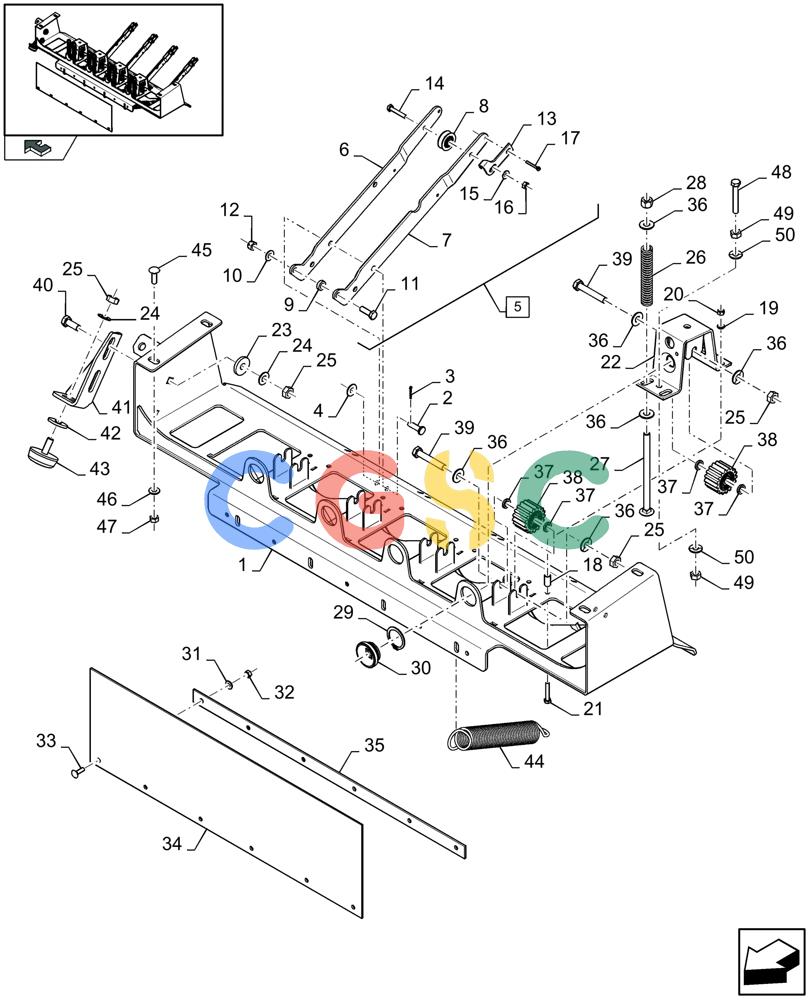

| 1. |
87665389
|
[1] |
MOUNTING PLATE
|
ZED
|
| 1. |
87692037
|
[1] |
MOUNTING PLATE
|
ZED
|
| 2. |
335040
|
[4] |
CLEVIS PIN,M8 x 28mm OAL
|
ZED
|
| 3. |
9512667
|
[4] |
COTTER PIN,M2 x 20mm OAL
|
CUR
|
| 4. |
378243
|
[4] |
WASHER,8.4mm ID x 21mm OD x 1.6mm Thk
|
NH
Superseded by part number: 63707, 63707, 86625263
|
| 5. |
87731161
|
[4] |
ARM
|
ZED
(6 TO 17)
|
| 6. |
87719626
|
[1] |
ARM
|
ZED
|
| 7. |
87719628
|
[1] |
ARM
|
ZED
|
| 8. |
87521132
|
[1] |
ROPE GUIDE ROLLER,31.5mm OD x 12mm L
|
ZED
Superseded by part number: 47508395
|
| 9. |
441178
|
[1] |
WASHER
|
ZED
Superseded by part number: 87571452
|
| 10. |
322358
|
[1] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 11. |
43127
|
[1] |
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
|
NH
|
| 12. |
86629542
|
[1] |
NUT,M8 x 1.25, Cl 8.8
|
ZED
|
| 13. |
84032625
|
[1] |
SCRAPER BLADE
|
ZED
, Serial Range: -C867
|
| 13. |
84283348
|
[1] |
SCRAPER
|
ZED
, Start Serial: D868
|
| 14. |
86977789
|
[1] |
BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8
|
ZED
|
| 15. |
322357
|
[1] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 16. |
353308
|
[1] |
NUT,M6 x 1.0, Cl 8
|
NH
|
| 17. |
130004
|
[1] |
COTTER PIN,2.9mm OD x 31.4mm OAL
|
WIN
, Serial Range: -C719
|
| 17. |
130005
|
[1] |
COTTER PIN,M3.2 x 32
|
ZED
, Start Serial: D720
|
| 18. |
9838894
|
[8] |
SPACER,6.83mm ID x 10.29mm OD x 19mm L
|
ZED
|
| 19. |
86588450
|
[8] |
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
|
ZED
|
| 22. |
87528187
|
[4] |
BRACKET
|
ZED
Superseded by part number: 87528185
|
| 23. |
9839231
|
[2] |
WASHER,11mm ID x 32mm OD x 5mm Thk
|
ZED
|
| 24. |
140045
|
[3] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 25. |
100016
|
[11] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 26. |
9838888
|
[8] |
SPRING
|
ZED
Superseded by part number: 858027
|
| 27. |
84018757
|
[8] |
BOLT,M10 x 1.5 x 160mm, CL 4.6
|
ZED
|
| 28. |
412141
|
[8] |
NUT,M10 x 1.5, Cl 8
|
ZED
Superseded by part number: 190003888452
|
| 29. |
370004
|
[4] |
SNAP RING,M35 x 1.5mm Thk, External
|
NH
Superseded by part number: 11068376
|
| 30. |
87331610
|
[4] |
GUIDE
|
ZED
|
| 32. |
9706755
|
[6] |
NUT,M6, Cl 8
|
NH
Superseded by part number: 86500688
|
| 33. |
9706703
|
[6] |
CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd
|
NH
|
| 34. |
84019645
|
[1] |
COVER
|
ZED
|
| 34. |
84019642
|
[1] |
COVER
|
ZED
|
| 35. |
84019644
|
[1] |
COVER PLATE
|
ZED
|
| 35. |
84019641
|
[1] |
COVER PLATE
|
ZED
|
| 36. |
378244
|
[32] |
WASHER,10.5mm ID x 24mm OD x 2mm Thk
|
NH
|
| 37. |
87391155
|
[16] |
SPACER,10.5mm ID x 16mm OD x 3mm L
|
ZED
|
| 38. |
87382295
|
[8] |
GEAR
|
ZED
|
| 39. |
120070
|
[8] |
BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8
|
NH
|
| 40. |
43139
|
[2] |
BOLT,M10 x 1.5 x 25mm, Cl 8.8
|
NH
Superseded by part number: 11106231
|
| 41. |
87713018
|
[1] |
STOP
|
ZED
|
| 42. |
140042
|
[1] |
WASHER,11mm ID x 34mm OD x 3mm Thk
|
GI
|
| 43. |
190029
|
[1] |
STOP,M10 x 1.0 x 20mm OD, Rubber
|
ZED
Superseded by part number: 84440416
|
| 44. |
87729344
|
[4] |
TENSION SPRING
|
ZED
|
| 45. |
120041
|
[4] |
CARRIAGE BOLT,M10 x 20mm, Cl 8.8
|
NH
, Start Serial: D722
|
| 48. |
120062
|
[1] |
BOLT,Hex, M8 x 70mm, Cl 8.8
|
NH
, Start Serial: D722 Superseded by part number: 7120024
|
| 49. |
9706690
|
[1] |
NUT,M8 x 1.25, Cl 8
|
NH
, Start Serial: D722 Superseded by part number: 43362
|
