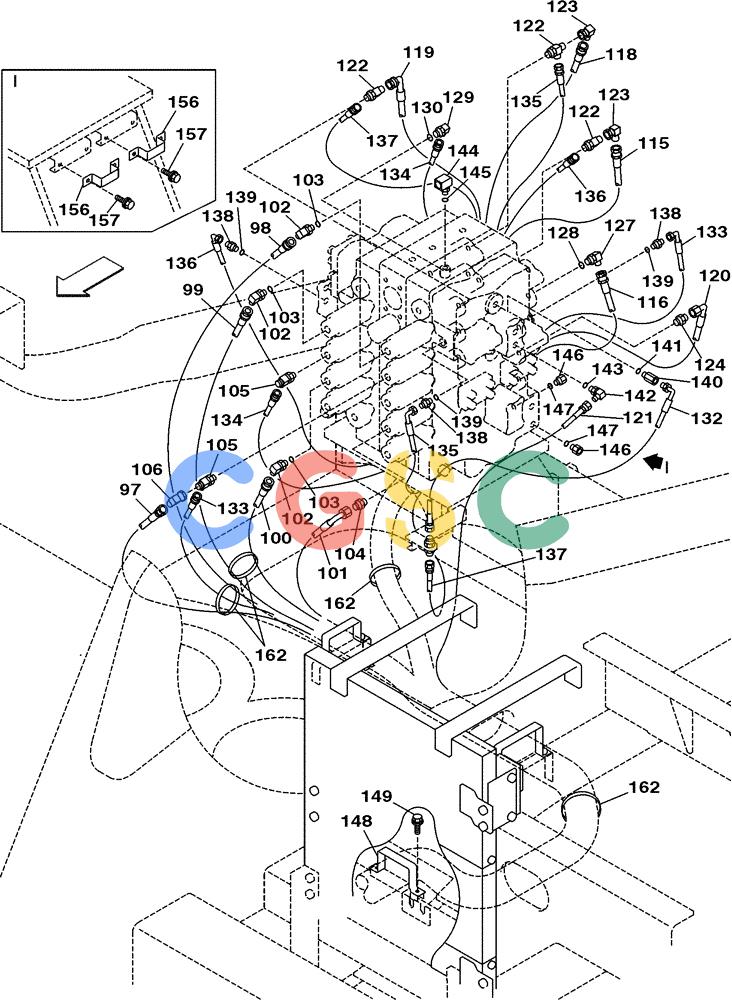

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (08-059-01[01]) - HYDRAULIC CIRCUIT - PILOT CONTROL LINES WITH LOAD HOLD New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
1013 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 97. | KRJ4970 | [1] | HOSE | SUM |
| 98. | 159063A1 | [1] | HOSE | SUM |
| 99. | KRJ4762 | [1] | HOSE | SUM |
| 101. | KRJ3894 | [1] | HOSE | SUM |
| 102. | 150916A1 | [3] | ELBOW,90º, 3/8" O-Ring x 3/8" | SUM |
| 103. | 154475A1 | [1] | O-RING | SUM |
| 104. | KAJ2851 | [1] | ADAPTER | SUM |
| 105. | 163422A1 | [2] | TEE | SUM |
| 106. | 153526A1 | [2] | ELBOW | SUM |
| 115. | 159064A1 | [1] | HOSE | SUM |
| 118. | KRJ4763 | [1] | HOSE | SUM |
| 119. | KRJ4764 | [1] | HOSE | SUM |
| 121. | 159714A1 | [1] | HOSE,3450.00 mm | SUM |
| 129. | 150913A1 | [1] | ELBOW,90º, 1/4" O-Ring x 1/4" | SUM |
| 130. | 154467A1 | [1] | O-RING,10.8mm ID x 2.4mm Width | SUM |
| 132. | 161659A1 | [1] | HYDRAULIC HOSE | SUM |
| 133. | 161482A1 | [1] | HOSE ASSY. | SUM1650 mm (65 in) |
| 134. | 153483A1 | [1] | HOSE ASSY. | SUM |
| 135. | 161166A1 | [1] | HOSE ASSY. | SUM |
| 137. | 162251A1 | [1] | HOSE | SUM |
| 138. | 152127A1 | [3] | HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT | SUM |
| 140. | 162554A1 | [1] | FITTING | SUM |
| 144. | KHJ0719 | [1] | ELBOW | SUM |
| 146. | NSS | [2] | NOT SERVICED SEPARATELY | CON |
| 148. | 159036A1 | [1] | CLAMP | SUM |
| 149. | 166350A1 | [2] | BOLT | SUM |
| 156. | 159025A1 | [2] | CLAMP | SUM |
| 162. | 150071A1 | [4] | MOUNTING CLIP | SUM |
| 170. | KHJ11460 | [1] | ADAPTER | SUM |
