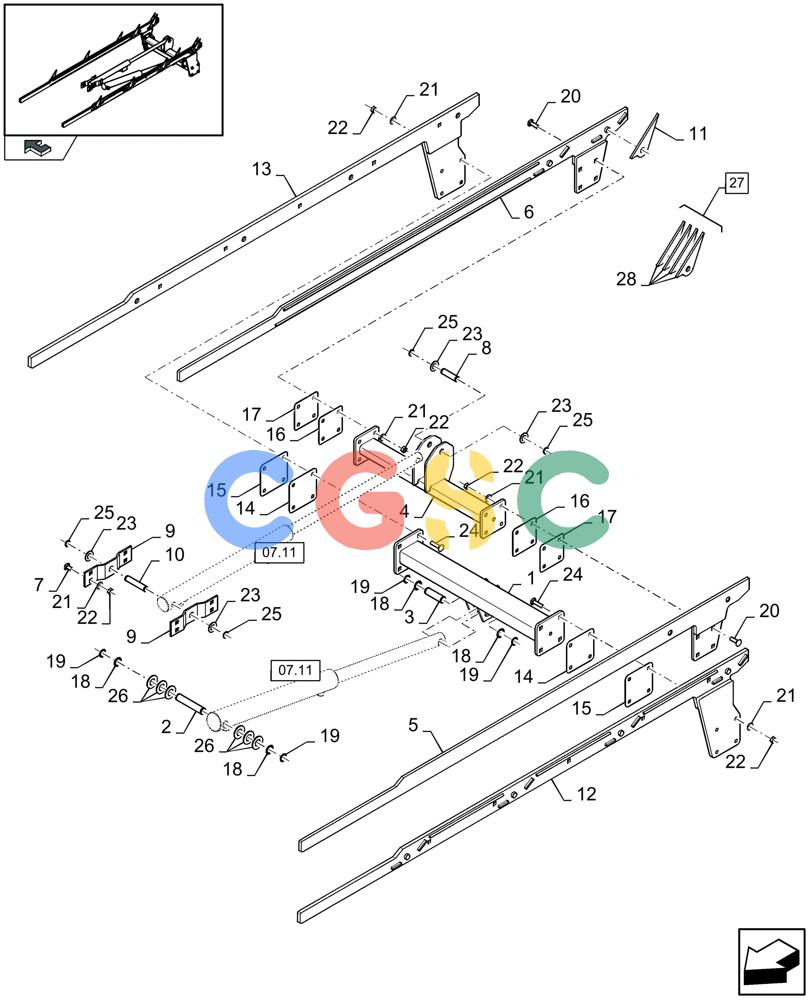

凯斯零件查询(LB333P) - BIG RECTANGULAR BALER 'PACKER CUTTER' (9/08-12/12) (16.02[01]) - STANDARD AND PARTIAL BALE EJECTION MECHANISM Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
797 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84122078
|
[1] |
CROSSRAIL
|
ZED
|
| 1. |
84122076
|
[1] |
CROSSRAIL
|
ZED
|
| 2. |
87557179
|
[1] |
SHAFT
|
ZED
|
| 3. |
87557177
|
[1] |
SHAFT
|
ZED
|
| 4. |
84122074
|
[1] |
CROSSRAIL
|
ZED
|
| 4. |
84122072
|
[1] |
CROSSRAIL
|
ZED
|
| 5. |
84123726
|
[1] |
LATH
|
ZED
, Serial Range: -C721 Superseded by part number: 84160355
|
| 5. |
84160355
|
[1] |
LATH
|
ZED
, Start Serial: D722
|
| 6. |
84123730
|
[1] |
LATH
|
ZED
, Serial Range: -C721 Superseded by part number: 84160359
|
| 6. |
84160359
|
[1] |
LATH
|
ZED
, Start Serial: D722
|
| 7. |
374895
|
[6] |
CARRIAGE BOLT,M12 x 1.75 x 25mm, Cl 8.8
|
NH
|
| 8. |
87491174
|
[1] |
SHAFT
|
ZED
|
| 9. |
87675257
|
[2] |
BRACKET
|
ZED
|
| 10. |
87675259
|
[1] |
SHAFT
|
ZED
|
| 11. |
84123375
|
[12] |
TOOTH
|
ZED
, Serial Range: -C699 Superseded by part number: 84145759
|
| 11. |
84145759
|
[12] |
TOOTH
|
ZED
L= 143, Start Serial: D700
|
| 12. |
84123724
|
[1] |
LATH
|
ZED
, Serial Range: -C721 Superseded by part number: 84160343
|
| 12. |
84160343
|
[1] |
LATH
|
ZED
, Start Serial: D722
|
| 13. |
84123728
|
[1] |
LATH
|
ZED
, Serial Range: -C721 Superseded by part number: 84160357
|
| 13. |
84160357
|
[1] |
LATH
|
ZED
, Start Serial: D722
|
| 14. |
84122083
|
[2] |
SHIM
|
ZED
2.1 MM
|
| 15. |
84122085
|
[2] |
SHIM
|
ZED
1.23 MM
|
| 16. |
84122087
|
[2] |
SHIM
|
ZED
2.03 MM
|
| 17. |
84122089
|
[2] |
SHIM
|
ZED
|
| 18. |
338206
|
[4] |
WASHER,26mm ID x 35mm OD x 2mm Thk
|
ZED
|
| 19. |
370002
|
[4] |
CIRCLIP,M25, External
|
NH
|
| 20. |
328754
|
[8] |
CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8
|
NH
|
| 21. |
140046
|
[22] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 22. |
9706685
|
[22] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 23. |
378247
|
[4] |
WASHER,21mm ID x 39mm OD x 3mm Thk
|
ZED
|
| 24. |
334682
|
[8] |
CARRIAGE BOLT,Sht Nk, M12 x 1.75 x 50mm, Cl 8.8, Full Thd
|
ZED
|
| 25. |
370024
|
[4] |
CIRCLIP,M20, Ext
|
NH
|
| 26. |
140022
|
[6] |
WASHER,26mm ID x 44mm OD x 4mm Thk
|
ZED
, Start Serial: D722
|
| 27. |
84293221
|
[1] |
KIT
|
ZED
(28)
|
| 28. |
84145761
|
[4] |
TOOTH
|
ZED
L= 214.7
|
