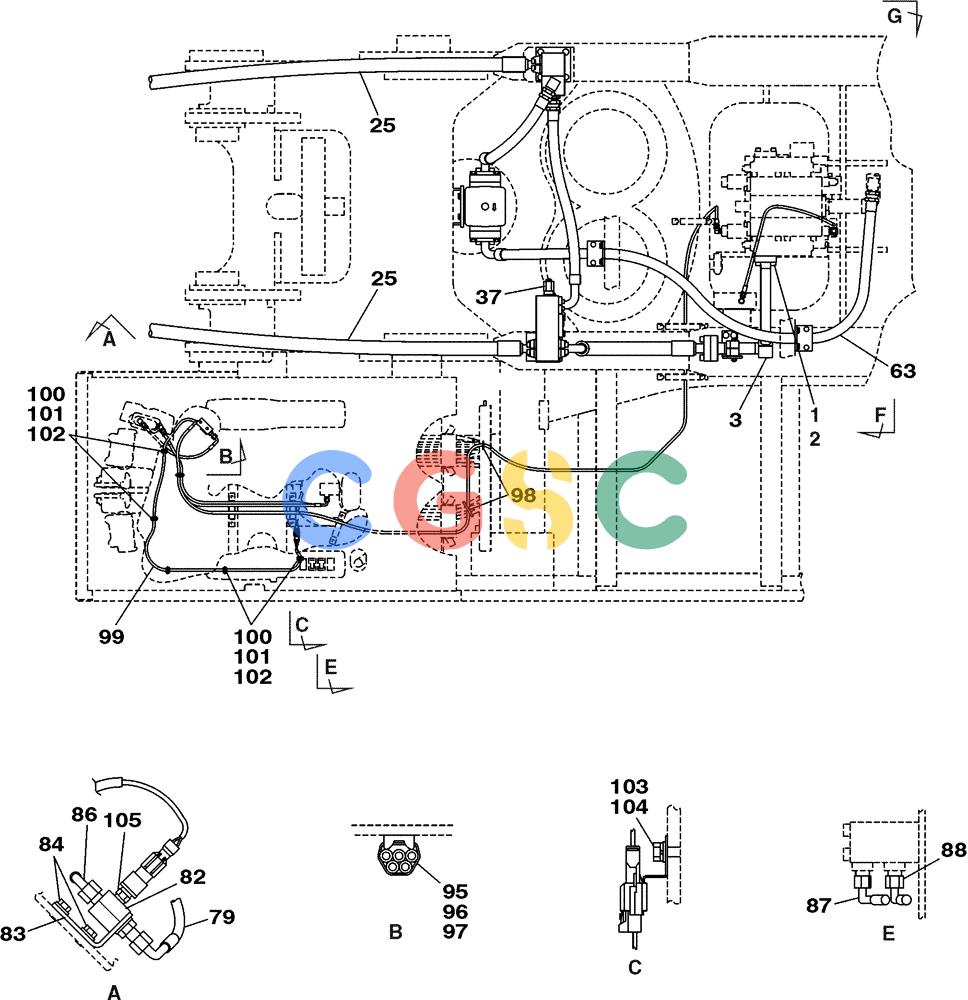

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (08-061-02[01]) - HYDRAULICS SINGLE ACTING CIRCUIT/HAMMER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
558 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 164450A1 | [1] | O-RING | SUM |
| 2. | 862-14040 | [4] | HEX SOC SCREW,M14 x 40mm, Cl 12.9 | CAS |
| 3. | KUJ0247 | [1] | TUBE ASSY.,34.7 mm ID x 42.7 mm OD | SUM |
| 25. | KUJ0453 | [2] | HYDRAULIC HOSE,38.10 mm ID x 2580.00 mm | SUM |
| 37. | 162656A1 | [1] | VALVE | SUM |
| 63. | KUJ0441 | [1] | HYDRAULIC HOSE,31.80 mm ID x 2520.00 mm | SUM |
| 79. | 161483A1 | [1] | HOSE ASSY. | SUM |
| 82. | KHJ11470 | [1] | ADAPTER | SUM |
| 83. | KHJ2127 | [1] | BRACKET | SUM |
| 84. | 166345A1 | [2] | BOLT | SUM Superseded by part number: 105R008Y016R |
| 86. | KTJ1786 | [1] | HOSE | SUM |
| 87. | 164236A1 | [1] | HOSE ASSY. | SUM1000 mm (39-3/8 in) |
| 88. | 159019A1 | [1] | HOSE ASSY. | SUM900 mm (35-1/2 in) |
| 95. | 150860A1 | [1] | COLLAR | SUM |
| 96. | 840-168 | [1] | SCREW,Pan, M6 x 1 x 8mm, Cl 4.8 | CAS |
| 97. | 150496A1 | [1] | MOUNTING CLIP | SUM250 mm (10 in) |
| 97A. | 150067A1 | [1] | MOUNTING CLIP | SUM150mm |
| 98. | 150071A1 | [2] | MOUNTING CLIP | SUM |
| 99. | KHR3350 | [1] | HARNESS | SUM |
| 103. | 165405A1 | [1] | CLIP | SUM |
| 104. | 156559A1 | [1] | BOLT,High Strength, Hex, M6 x 12mm, W/ LW | SUM |
| 105. | 159899A1 | [1] | PRESSURE SWITCH | SUM Superseded by part number: KHJ11450, KHR24010 |
| 106. | 827-10090 | [2] | BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9 | CAS Superseded by part number: 828-10090 |
