纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (08-061-06[01]) - HYDRAULICS MULTIFUNCTION AUXILIARY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
624 次

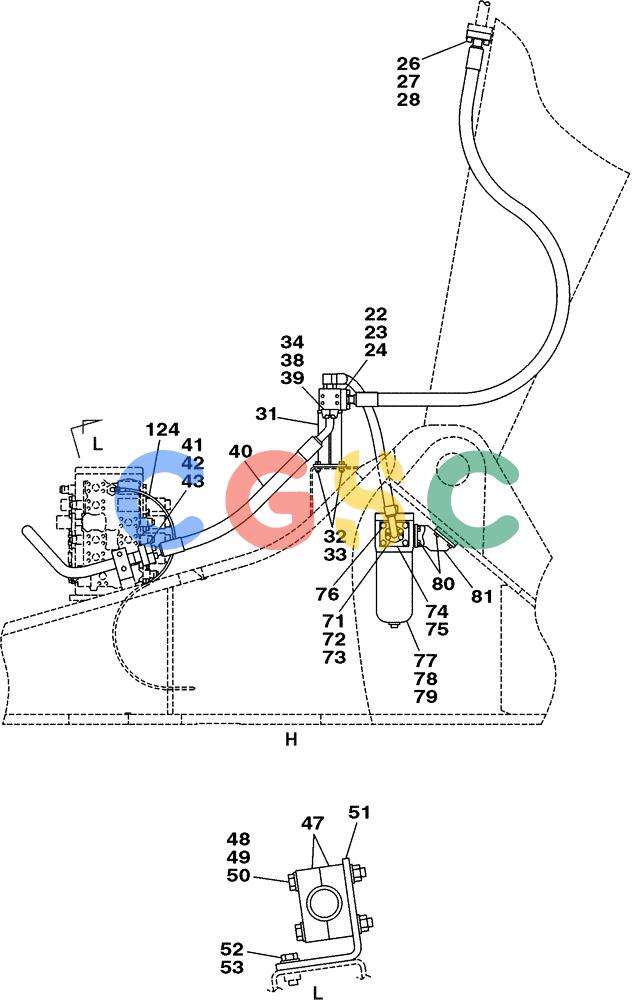

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 22. | 164450A1 | [1] | O-RING | SUM |
| 23. | 150124A1 | [2] | FLANGE | SUM |
| 24. | 862-14040 | [4] | HEX SOC SCREW,M14 x 40mm, Cl 12.9 | CAS |
| 26. | 168211A1 | [2] | O-RING | SUM |
| 27. | KTJ0169 | [4] | FLANGE | SUM |
| 28. | 862-16050 | [8] | HEX SOC SCREW,M16 x 50mm, Cl 12.9 | CASM16 x 50; 12.9 Superseded by part number: 9817243 |
| 31. | KUJ0263 | [1] | BRACKET | SUM |
| 32. | 627-12040 | [4] | BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd | CAS Superseded by part number: 337563 |
| 33. | 150811A1 | [4] | WASHER | SUMM12 Superseded by part number: 86625255 |
| 40. | KUJ0262 | [1] | HYDRAULIC HOSE,38.10 mm ID x 1140.00 mm | SUM |
| 47. | KUJ0112 | [2] | PIPE CLAMP | SUM |
| 48. | 827-12090 | [2] | BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9 | CASM12 x 90; 10.9 Superseded by part number: 412605 |
| 50. | 829-1412 | [2] | NUT,M12, Cl 10 | CAS Superseded by part number: 337475 |
| 51. | KUJ0113 | [1] | BRACKET | SUM |
| 72. | 157856A1 | [2] | CLAMP BRACKET | SUM |
| 73. | 862-10030 | [4] | HEX SOC SCREW,M10 x 30mm, Cl 12.9 | CAS Superseded by part number: 87016471 |
| 74. | 154721A1 | [1] | O-RING,99.4mm ID x 3.1mm Width | SUM |
| 75. | KUJ0155 | [1] | COUPLING FLANGE | SUM |
| 76. | 627-16050 | [4] | BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd | CAS Superseded by part number: 412398 |
| 77. | KUJ0159 | [1] | FILTER | SUM |
| 78. | KUJ0160 | [1] | FILTER, ELEMENT | SUM |
| 79. | 159706A1 | [1] | INDICATOR | SUM |
| 80. | 166352A1 | [8] | BOLT | SUM |
| 81. | KUJ0119 | [1] | BRACKET | SUM |
| 124. | KHJ1932 | [1] | HOSE | SUM |
