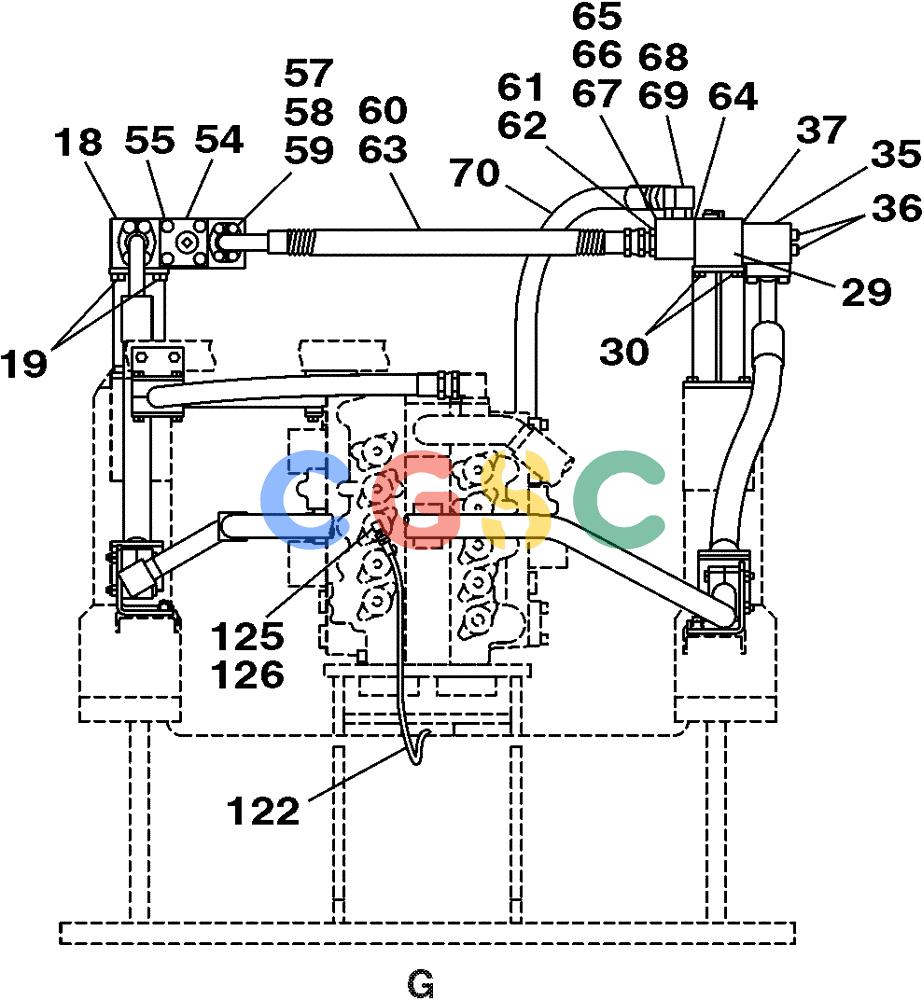

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (08-061-07[01]) - HYDRAULICS MULTIFUNCTION AUXILIARY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
230 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 18. | KSJ2740 | [1] | MANIFOLD | SUM |
| 19. | 166373A1 | [4] | BOLT,Sems, M16 x 40mm | SUM |
| 29. | KSJ2755 | [1] | VALVE | SUM Superseded by part number: KHJ17380 |
| 30. | 166352A1 | [4] | BOLT | SUM |
| 35. | KUJ0156 | [1] | MANIFOLD VALVE | SUM |
| 36. | 108R014Y120R | [4] | BOLT | SUM |
| 37. | 164450A1 | [1] | O-RING | SUM |
| 54. | 162658A1 | [1] | MANIFOLD VALVE | SUM Superseded by part number: KHJ17370 |
| 54A. | LQC0039 | [1] | SEAL KIT | SUMSeal |
| 55. | 862-16030 | [4] | HEX SOC SCREW,M16 x 30mm, Cl 12.9 | CAS Superseded by part number: 863-16030 |
| 58. | 157856A1 | [2] | CLAMP BRACKET | SUM |
| 59. | 862-10030 | [4] | HEX SOC SCREW,M10 x 30mm, Cl 12.9 | CAS Superseded by part number: 87016471 |
| 60. | 168048A1 | [1] | HYDRAULIC HOSE,31.80 mm ID x 900.00 mm | SUM |
| 61. | 159047A1 | [1] | ADAPTER | SUM |
| 62. | 154559A1 | [1] | O-RING | SUM |
| 63. | 151046A1 | [1] | GUARD | SUM |
| 65. | 162667A1 | [1] | MANIFOLD | SUM |
| 66. | 862-14090 | [4] | HEX SOC SCREW,M14 x 90mm, Cl 12.9 | CAS Superseded by part number: 108R014Y090R |
| 67. | 184-014VR | [4] | SPRING WASHER | SUM Superseded by part number: 892-11014 |
| 68. | 157582A1 | [1] | ELBOW,90º, 1 1/4" O-Ring x 1 1/4" | SUM |
| 70. | KUJ0250 | [1] | HYDRAULIC HOSE,31.80 mm ID x 1020.00 mm | SUM |
| 122. | 165149A1 | [1] | HOSE ASSY. | SUM |
| 125. | 156554A1 | [1] | ELBOW | SUM |
| 126. | 154467A1 | [1] | O-RING,10.8mm ID x 2.4mm Width | SUM |
