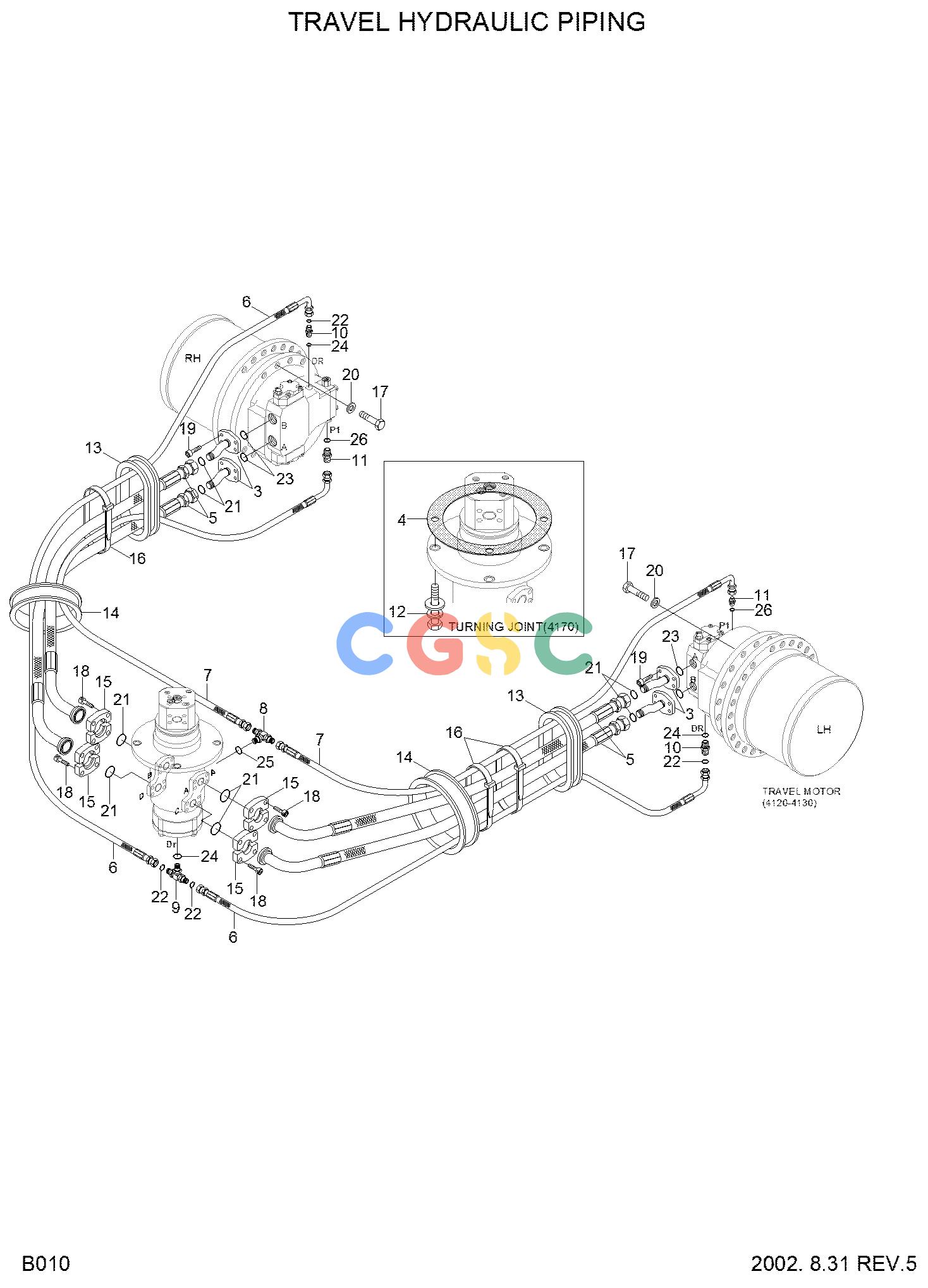

现代零件查询R290LC-7 TRAVEL HYDRAULIC PIPINGEPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
174 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
@
|
[2] |
TRAVEL HYD PIP-H/W,NZ
|
|
| 3. |
31N8-40320
|
[4] |
PIPE WA
|
|
| 4. |
31N1-40970
|
[1] |
GASKET
|
|
| 5. |
P950-167349FL
|
[4] |
HOSE ASSY-ORFSXFLG
|
|
| 6. |
P920-082055
|
[2] |
HOSE ASSY-ORFS 0X45
|
|
| 7. |
P410-042065
|
[2] |
HOSE ASSY-COMP 0X45
|
|
| 8. |
P310-060404
|
[1] |
TEE-BRANCH TYPE
|
|
| 9. |
X810-085353
|
[1] |
TEE-B/TYPE
|
|
| 10. |
X511-108534
|
[2] |
CONNECTOR-LONG,ORFS
|
|
| 11. |
P101-104045
|
[2] |
CONNECTOR-LONG
|
|
| 12. |
S037-123522
|
[4] |
BOLT-W/WASHER
|
|
| 13. |
E231-0270
|
[2] |
GROMMET
|
|
| 14. |
31E3-3119
|
[2] |
GROMMET
|
|
| 15. |
P173-160104
|
[16] |
FLANGE-SPLIT
|
|
| 16. |
S551-050203
|
[10] |
CLAMP-BAND
|
|
| 17. |
S017-200802
|
[40] |
BOLT-HEX
|
|
| 18. |
S109-100306
|
[16] |
BOLT-SOCKET
|
|
| 19. |
S109-100356
|
[16] |
BOLT-SOCKET
|
|
| 20. |
S411-200002
|
[40] |
WASHER-SPRING
|
|
| 21. |
Y171-024004
|
[8] |
O-RING
|
|
| 22. |
S621-014001
|
[4] |
O-RING
|
|
| 23. |
S621-021001
|
[4] |
O-RING
|
|
| 24. |
S631-018004
|
[3] |
O-RING
|
|
| 25. |
S631-014004
|
[1] |
O-RING
|
|
| 26. |
S631-011004
|
[2] |
O-RING
|
|
