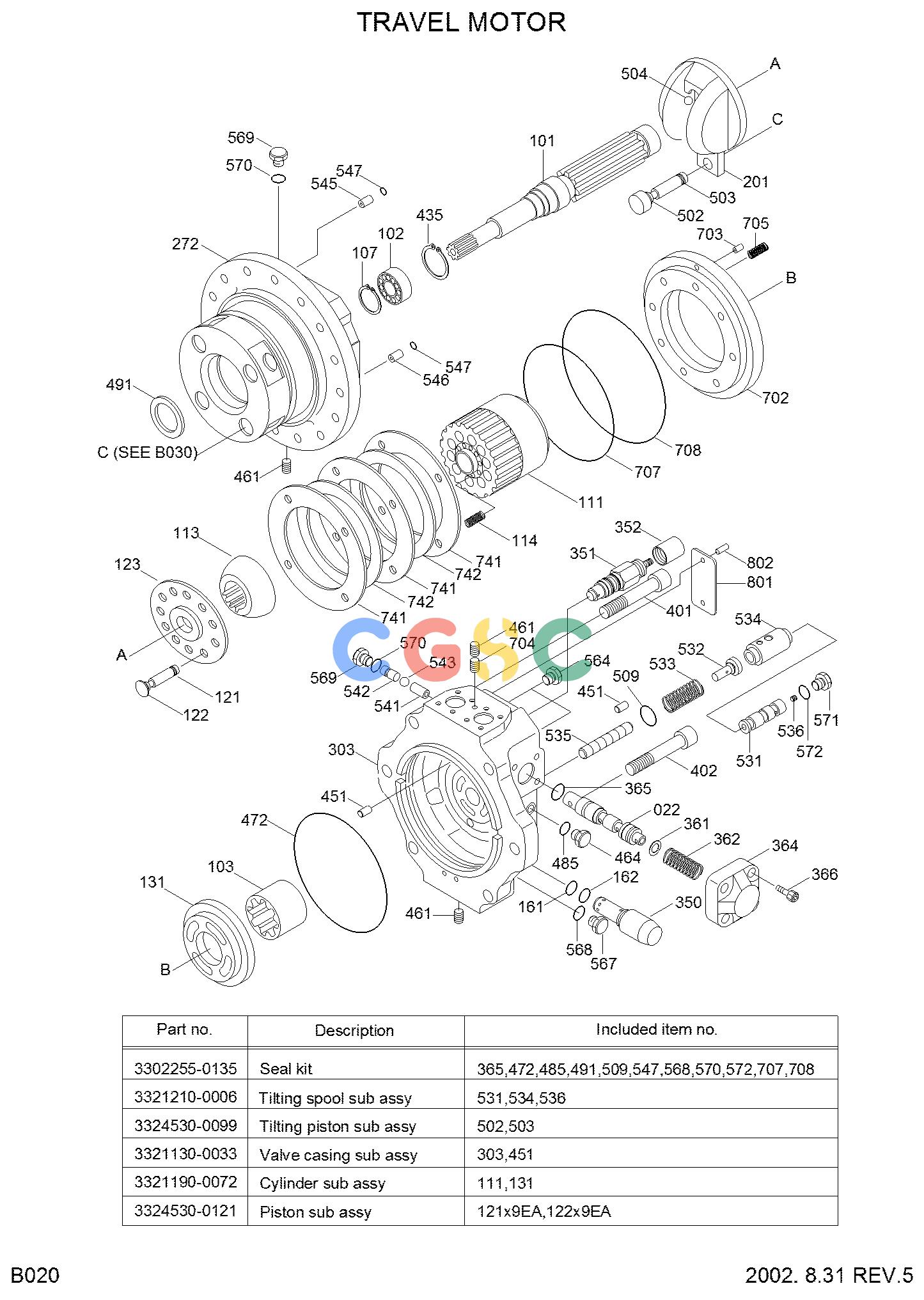

现代零件查询R290LC-7 TRAVEL MOTOR(-#0178)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
432 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
31E9-00030
|
[1] |
TRAVEL MOTOR ASSY
|
|
| -1. |
33822J-02D
|
[1] |
TRAVEL MOTOR UNIT
|
|
| 022. |
VZ03320-0258
|
[1] |
SPOOL-COUNT,B
|
|
| 101. |
3324250-0299
|
[1] |
SHAFT-DRIVE
|
|
| 102. |
PNUP2210
|
[1] |
BEARING-ROLLER
|
|
| 103. |
PNK365528
|
[1] |
BEARING-NEEDLE
|
|
| 107. |
OSR50
|
[1] |
RING-SNAP
|
|
| N111. |
3324370-0204
|
[1] |
CYLINDER
|
|
| 113. |
3724610-0025
|
[1] |
BUSHING-SPHERICAL
|
|
| 114. |
2953802061
|
[9] |
SPRING-CYLINDER
|
|
| N121. |
371A00AA-121
|
[9] |
PISTON
|
|
| N122. |
3743700378
|
[9] |
SHOE
|
|
| 123. |
3724110-0005
|
[1] |
PLATE-SET
|
|
| 131. |
3724710-0021
|
[1] |
PLATE-VALVE
|
|
| 161. |
OORBG30
|
[2] |
O-RING
|
|
| 162. |
OT2BG30
|
[2] |
RING-BACK UP
|
|
| 201. |
3324150-0075
|
[1] |
PLATE-SWASH
|
|
| 272. |
3323190-0047
|
[1] |
CASING-K
|
|
| N303. |
3323230-0110
|
[1] |
CASING-VALVE,B
|
|
| 350. |
V8911248179
|
[2] |
VALVE-RELIEF
|
|
| 351. |
V9511178128
|
[1] |
VALVE-REDUCING
|
|
| 352. |
VZ991-004
|
[1] |
COVER
|
|
| 361. |
5A250010-3310
|
[2] |
WASHER
|
|
| 362. |
3303340-1028
|
[2] |
SPRING-COUNT,B
|
|
| 364. |
3350800150
|
[2] |
COVER-C/BALANCE
|
|
| K365. |
OORBG45
|
[2] |
O-RING
|
|
| 366. |
OSBM1245
|
[8] |
BOLT-SOCKET
|
|
| 401. |
OSBM20100
|
[2] |
BOLT-SOCKET
|
|
| 402. |
OSBM2050
|
[4] |
SCREW-HEX
|
|
| 435. |
ORR90
|
[1] |
RING-SNAP
|
|
| 451. |
PJR1014
|
[2] |
PIN-2
|
|
| 461. |
PBP116-2403
|
[13] |
PLUG
|
|
| 464. |
OVP12
|
[2] |
PLUG
|
|
| K472. |
OORWG47
|
[1] |
O-RING
|
|
| K485. |
OORBP18
|
[2] |
O-RING
|
|
| K491. |
PTCV48V
|
[1] |
SEAL-OIL
|
|
| N502. |
3324530-0098
|
[1] |
PISTON-TILTING
|
|
| N503. |
3324350-0011
|
[1] |
SHOE-TILTING
|
|
| 504. |
3324760-0008
|
[2] |
BALL
|
|
| K509. |
OORBP16
|
[1] |
O-RING
|
|
| 531. |
3303320-1552
|
[1] |
SPOOL-TILTING
|
|
| 532. |
3303270-0212
|
[1] |
SEAT-SPRING
|
|
| 533. |
3303340-1029
|
[1] |
SPRING-TILTING,B
|
|
| 534. |
3303380-0127
|
[1] |
SLEEVE
|
|
| 534. |
3303380-0178
|
[1] |
SLEEVE
|
|
| 535. |
3324550-0036
|
[1] |
PISTON
|
|
| 536. |
OSSSM45
|
[1] |
SCREW-HEX
|
|
| 541. |
3333180-0125
|
[1] |
SEAT-2
|
|
| 542. |
2933260-0018
|
[1] |
STOPPER
|
|
| 543. |
ODW732
|
[1] |
BALL-STEEL
|
|
| 545. |
OTRS116A15
|
[1] |
ORIFICE
|
|
| 546. |
OTRS116A10
|
[1] |
ORIFICE
|
|
| K547. |
OORBP10
|
[2] |
O-RING
|
|
| 564. |
OBP14
|
[2] |
PLUG
|
|
| 567. |
OVP14
|
[4] |
PLUG
|
|
| K568. |
OORBP11
|
[4] |
O-RING
|
|
| 569. |
OROH14
|
[2] |
PLUG
|
|
| K570. |
OORBP11
|
[2] |
O-RING
|
|
| 571. |
OROMH22
|
[1] |
PLUG
|
|
| K572. |
OORBP20
|
[1] |
O-RING
|
|
| 702. |
3324510-0016
|
[1] |
PISTON-BRAKE
|
|
| 703. |
OTRM4406
|
[1] |
ORIFICE
|
|
| 704. |
OTRM5510
|
[1] |
ORIFICE
|
|
| 705. |
3753700453
|
[14] |
SPRING-BRAKE
|
|
| K707. |
OORWG44
|
[1] |
O-RING
|
|
| K708. |
OORWG49
|
[1] |
O-RING
|
|
| 741. |
3743700413
|
[3] |
PLATE
|
|
| 742. |
3743700449
|
[2] |
PLATE
|
|
| 801. |
PNPA-2550A
|
[1] |
PLATE-NAME
|
|
| 802. |
OSK2548
|
[2] |
PIN
|
|
| N -2. |
3550D-01A
|
[1] |
T/REDUCTION GEAR
|
|
| K. |
3302255-0135
|
[1] |
SEAL KIT(365-708)
|
|
| S. |
3321210-0006
|
[1] |
TILTING SPOOL SUB
|
|
| S. |
3324530-0099
|
[1] |
TILTING PISTON SUB
|
|
| S. |
3321130-0033
|
[1] |
VALVE CASING SUB
|
|
| S. |
3321190-0072
|
[1] |
CYLINDER SUB
|
|
| S. |
3324530-0121
|
[1] |
PISTON SUB
|
|
| N. |
@
|
[1] |
NOT INDIVIDUALLY SUPPLIED
|
|
