纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (08-077-06[01]) - COUNTERWEIGHT REMOVAL SYSTEM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
405 次

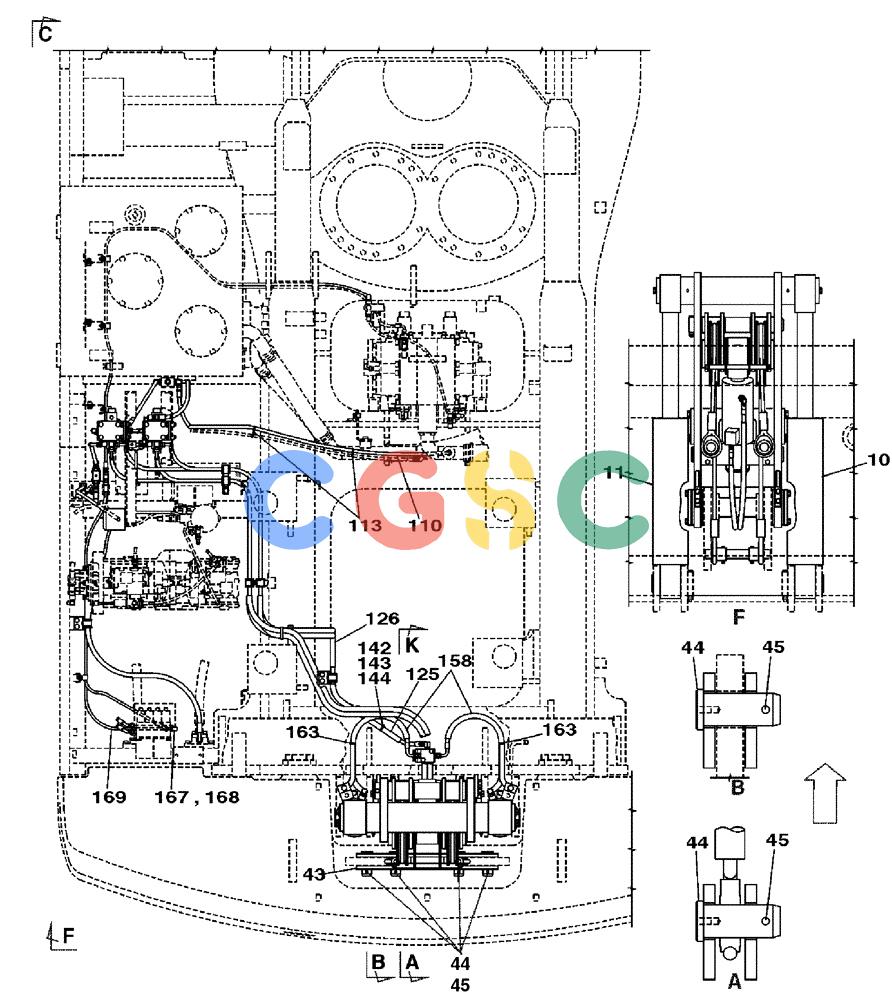

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 10. | KUB0154 | [1] | HYDRAULIC CYLINDER | SUM |
| 11. | KUB0155 | [1] | HYDRAULIC CYLINDER | SUM |
| 43. | KUB0172 | [1] | BRACKET | SUM |
| 44. | KUB0161 | [4] | PIN | SUM |
| 45. | C4E6684 | [4] | SPLIT PIN/SAFETY PIN | SUM |
| 110. | KRJ5868 | [1] | HYDRAULIC HOSE,9.50 mm ID x 1750.00 mm | SUM |
| 113. | 150496A1 | [2] | MOUNTING CLIP | SUM250 mm (10 in) |
| 125. | 158060A1 | [2] | PLASTIC-RUBBER TUBE | SUM Superseded by part number: KHR21050 |
| 126. | 158062A1 | [2] | PLASTIC-RUBBER TUBE | SUM Superseded by part number: KHR21050 |
| 142. | 150860A1 | [1] | COLLAR | SUM |
| 143. | 840-168 | [1] | SCREW,Pan, M6 x 1 x 8mm, Cl 4.8 | CAS |
| 167. | 150913A1 | [1] | ELBOW,90º, 1/4" O-Ring x 1/4" | SUM |
| 168. | 154467A1 | [1] | O-RING,10.8mm ID x 2.4mm Width | SUM |
| 169. | KHJ1608 | [1] | HOSE | SUM |
