现代零件查询R290LC-7 LOWER FRAME(-#0178)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
913 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
@
|
[1] |

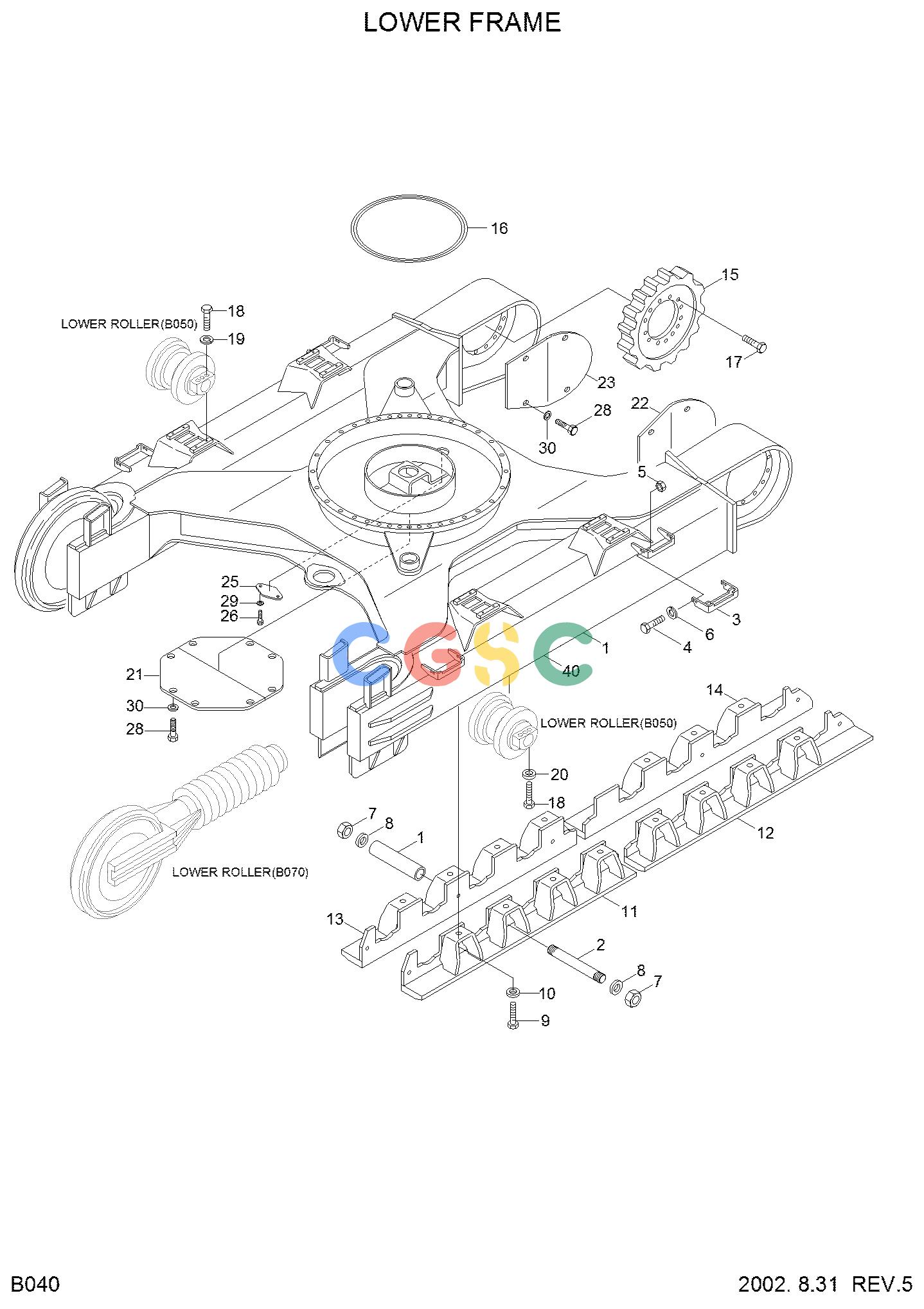

LOWER FRAME
|
|
| 1. |
51FD-11070
|
[12] |
SPACER
|
|
| 2. |
51FD-11280
|
[12] |
BOLT-STUD
|
|
| 3. |
51EM-21030
|
[4] |
BOARD-FOOT
|
|
| 4. |
S017-160552
|
[16] |
BOLT-HEX
|
|
| 5. |
S207-161002
|
[16] |
NUT-HEX
|
|
| 6. |
S441-160002
|
[32] |
WASHER-HARDENED
|
|
| 7. |
2420T5580
|
[24] |
NUT-HEX
|
|
| 8. |
S441-270002
|
[24] |
WASHER-HARDENED
|
|
| 9. |
S017-240452
|
[32] |
BOLT-HEX
|
|
| 10. |
S441-240002
|
[32] |
WASHER-HARDENED
|
|
| 11. |
51W2-10020
|
[2] |
TRACK GUARD WA-LH(A)
|
|
| 12. |
51W2-10040
|
[2] |
TRACK GUARD WA-LH(B)
|
|
| 13. |
51W2-10030
|
[2] |
TRACK GUARD WA-RH(A)
|
|
| 14. |
51W2-10050
|
[2] |
TRACK GUARD WA-RH(B)
|
|
| 15. |
81E5-20012
|
[2] |
SPROCKET
|
|
| 16. |
E181-3002
|
[1] |
SEAL-GREASE
|
|
| 17. |
81N8-19510
|
[48] |
BOLT-SPROCKET
|
|
| 18. |
S017-201004
|
[88] |
BOLT-HEX
|
|
| 19. |
S411-200002
|
[16] |
WASHER-SPRING
|
|
| 20. |
S441-200004
|
[72] |
WASHER
|
|
| 21. |
51FD-21011
|
[2] |
COVER-BOTTOM WA
|
|
| 22. |
51FD-21020
|
[1] |
TRACK COVER WA-LH
|
|
| 23. |
51FD-21030
|
[1] |
TRACK COVER WA-RH
|
|
| 25. |
41EC-13080
|
[1] |
COVER
|
|
| 26. |
S017-100202
|
[2] |
BOLT-HEX
|
|
| 27. |
S017-120352
|
[8] |
BOLT-HEX
|
|
| 28. |
S017-120552
|
[8] |
BOLT-HEX
|
|
| 29. |
S403-103002
|
[2] |
WASHER-PLAIN
|
|
| 30. |
S441-120002
|
[16] |
WASHER-HARDENED
|
|
| 40. |
51N8-06010
|
[1] |
LOWER FRAME WA
|
|
