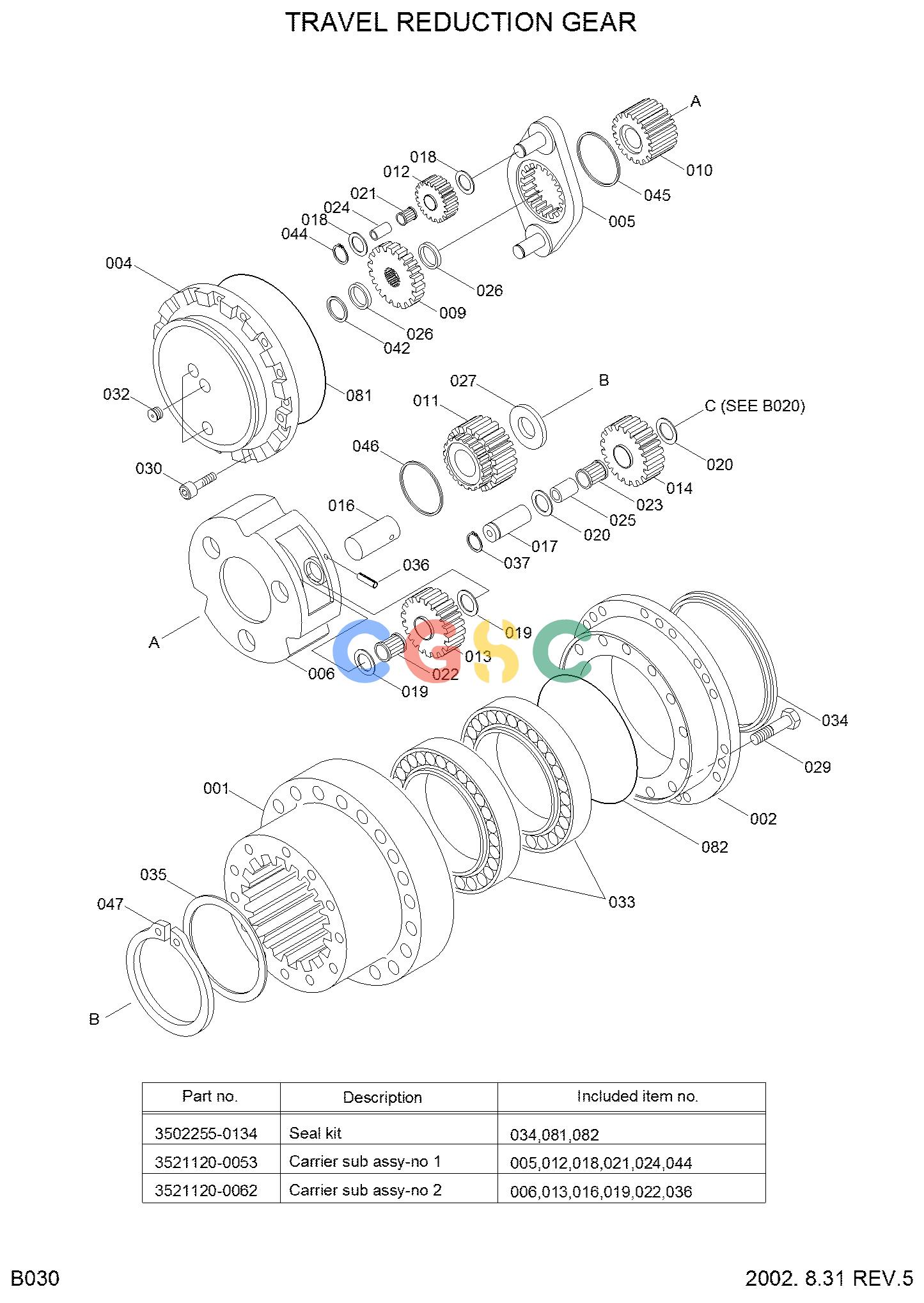

现代零件查询R290LC-7 TRAVEL REDUCTION GEAR(-#0178)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
783 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
@
|
[1] |
TRAVEL MOTOR ASSY
|
|
| N -2. |
3550D-01C
|
[1] |
T/REDUCTION GEAR
|
|
| 001. |
3523170-0045
|
[1] |
GEAR-RING
|
|
| 002. |
3523310-0160
|
[1] |
HOUSING
|
|
| 004. |
3523150-0488
|
[1] |
COVER-SIDE
|
|
| 005. |
3524120-0052
|
[1] |
CARRIER-NO1
|
|
| 006. |
3524120-0085
|
[1] |
CARRIER-NO2
|
|
| 009. |
3503190-0109
|
[1] |
GEAR-SUN,NO1
|
|
| 010. |
3503190-0110
|
[1] |
GEAR-SUN,NO2
|
|
| 011. |
3503190-0143
|
[1] |
GEAR-SUN,NO3
|
|
| 012. |
3503190-0117
|
[2] |
GEAR-PLANE,NO1
|
|
| 013. |
3503190-0113
|
[3] |
GEAR-PLANE,NO2
|
|
| 014. |
3503190-0141
|
[4] |
GEAR-PLANE,NO3
|
|
| 016. |
3503540-0288
|
[3] |
PIN-NO2
|
|
| 017. |
3503540-0122
|
[4] |
PIN-NO3
|
|
| 018. |
3524750-0370
|
[2] |
PLATE-SIDE
|
|
| 019. |
3524750-0179
|
[6] |
PLATE-SIDE
|
|
| 020. |
3524750-0219
|
[8] |
PLATE-SIDE
|
|
| 021. |
PKT507028
|
[2] |
CAGE-NEEDLE
|
|
| 022. |
PKT506532X
|
[3] |
CAGE-NEEDLE
|
|
| 023. |
PBN506006HSCX
|
[4] |
CAGE-NEEDLE
|
|
| 024. |
P1R455028
|
[2] |
RING-INNER
|
|
| 025. |
3503370-0241
|
[4] |
BUSHING
|
|
| 026. |
35050BAA-024
|
[2] |
RING-THRUST
|
|
| 027. |
3503160-0105
|
[1] |
RING-THRUST
|
|
| 029. |
OSBM16100
|
[28] |
SCREW-HEX
|
|
| 030. |
OSBM820
|
[12] |
SCREW-HEX SOC HD
|
|
| 032. |
OBP12
|
[3] |
PLUG
|
|
| 033. |
PAC6037
|
[2] |
BEARING
|
|
| K034. |
P353
|
[1] |
SEAL
|
|
| N035. |
3526330F0028
|
[1] |
SHIM(2.5T)
|
|
| N035. |
3526330G0028
|
[1] |
SHIM(2.65T)
|
|
| N035. |
3526330H0028
|
[1] |
SHIM(2.7T)
|
|
| 036. |
OSPV625
|
[3] |
PIN-SPRING
|
|
| 037. |
ORR42
|
[4] |
RING-SNAP
|
|
| 042. |
35050BAA-042A
|
[1] |
SHIM(0.5T)
|
|
| 042. |
35050BAA-042B
|
[1] |
SHIM(1.0T)
|
|
| 044. |
OSR45
|
[2] |
RING-SNAP
|
|
| 045. |
PWR95
|
[1] |
CLIP
|
|
| 046. |
PWR130
|
[1] |
CLIP
|
|
| 047. |
PSR300
|
[1] |
RING-SNAP
|
|
| K081. |
PCPP323
|
[1] |
O-RING
|
|
| K082. |
PCPP378
|
[1] |
O-RING
|
|
| S. |
3521120-0053
|
[1] |
CARRIER SUB-NO1
|
|
| S. |
3521120-0062
|
[1] |
CARRIER SUB-NO2
|
|
| K. |
3502255-0134
|
[1] |
SEAL KIT(034,081,082)
|
|
