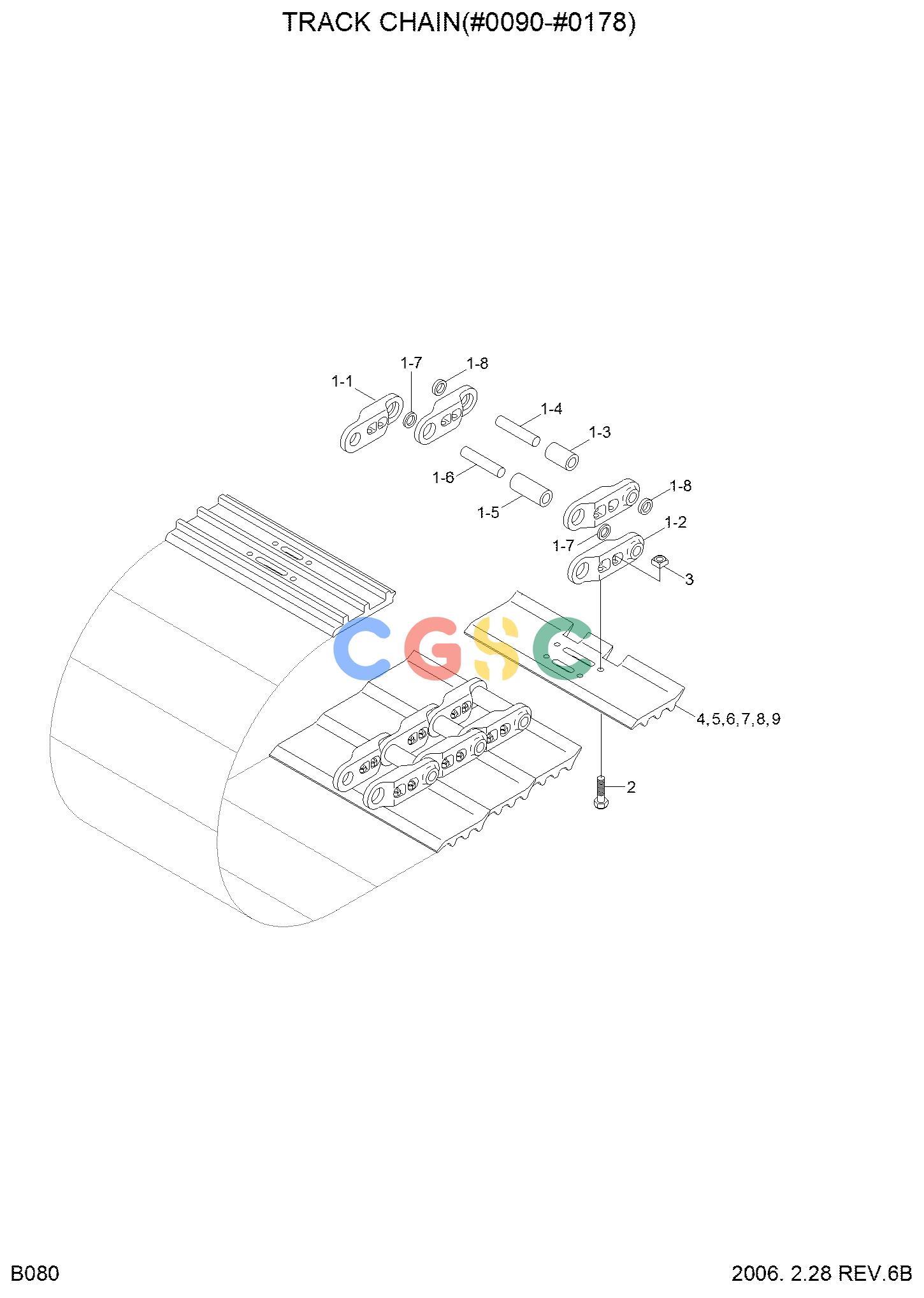

现代零件查询R290LC-7 TRACK CHAIN(#0090-#0178)EPC Hyundai

广数供应链运营团队, 15 02月, 2025，浏览： 351 次

Pos.	Part No	Qty	Parts name	Comments
.	83E5-2580	[2]	TRACK CHAIN ASSY(800MM)	800MM
1.	83E5-2501	[1]	TRACK LINK ASSY
1-1.	81E9-25111	[50]	TRACK LINK-RH
1-2.	81E9-25121	[51]	TRACK LINK-LH
1-3.	81E9-25151	[50]	BUSHING
1-4.	81E9-25161	[50]	PIN
1-5.	81E9-25171	[1]	MASTER BUSHING
1-6.	81E9-25181	[2]	MASTER PIN
1-7.	81E9-25191	[2]	SPACER
1-8.	81E5-2520	[100]	SEAL-TRACK
-6.	81EM-T0000	[204]	TRACK BOLT & NUT KIT
2.	81EM-20020	[1]	BOLT-SHOE
3.	81N6-26620	[1]	NUT
4.	81E5-2508	[51]	SHOE-TRACK(800MM)	800MM
-1.	83E5-2005	[2]	TRACK CHAIN ASSY(600MM)	600MM
1.	83E5-2501	[1]	TRACK LINK ASSY
-6.	81EM-T0000	[204]	TRACK BOLT & NUT KIT
2.	81EM-20020	[1]	BOLT-SHOE
3.	81N6-26620	[1]	NUT
5.	81E5-2502	[51]	SHOE-TRACK(600MM)	600MM
-2.	83E5-2570	[2]	TRACK CHAIN ASSY(700MM)	700MM
1.	83E5-2501	[51]	TRACK LINK ASSY
-6.	81EM-T0000	[51]	TRACK BOLT & NUT KIT
2.	81EM-20020	[1]	BOLT-SHOE
3.	81N6-26620	[1]	NUT
6.	81E5-2507	[51]	SHOE-TRACK(700MM)	700MM
-3.	83E5-25750	[2]	TRACK CHAIN ASSY(750MM)	750MM
1.	83E5-2501	[1]	TRACK LINK ASSY
-6.	81EM-T0000	[204]	TRACK BOLT & NUT KIT
2.	81EM-20020	[1]	BOLT-SHOE
3.	81N6-26620	[1]	NUT
7.	81E5-25100	[51]	SHOE-TRACK(750MM)	750MM
-4.	83E5-2590	[2]	TRACK CHAIN ASSY(900MM)	900MM
1.	83E5-2501	[1]	TRACK LINK ASSY
-6.	81EM-T0000	[204]	TRACK BOLT & NUT KIT
2.	81EM-20020	[1]	BOLT-SHOE
3.	81N6-26620	[1]	NUT
8.	81E5-2509	[51]	SHOE-TRACK(900MM)	900MM
-5.	81W2-10100	[2]	TRACK CHAIN ASSY	710MM
-7.	81W2-T0000	[204]	TRACK BOLT & NUT
2.	81W2-10020	[1]	BOLT-SHOE
3.	81E5-2504	[1]	NUT
9.	81W2-10010	[51]	SHOE-TRACK	710MM
