现代零件查询R290LC-7 DECALS(-#0178)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
759 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
@
|
[1] |

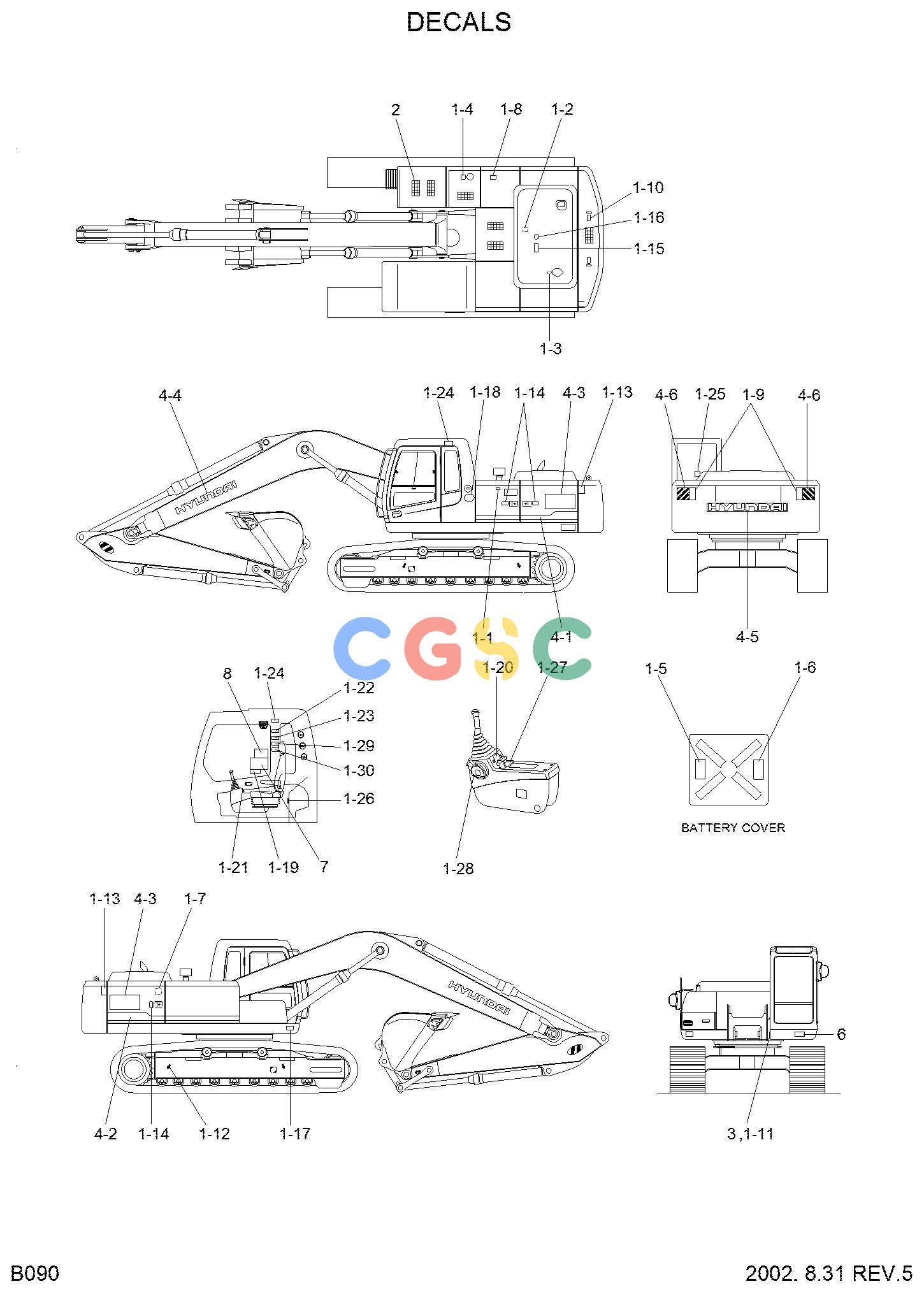

DECAL GROUP
|
|
| 1. |
91N8-00102
|
[1] |
DECAL KIT
|
|
| 1-1. |
91N6-01102
|
[1] |
AIR CLEANER FILTER
|
|
| 1-2. |
91N6-01111
|
[1] |
TURBO CHARGER COVER
|
|
| 1-3. |
91N6-01121
|
[1] |
RADIATOR CAP
|
|
| 1-4. |
91N6-01131
|
[1] |
FUELING
|
|
| 1-5. |
91N6-02102
|
[1] |
BATTERY CORROSIVE
|
|
| 1-6. |
91N6-02112
|
[1] |
BATTERY EXPLOSION
|
|
| 1-7. |
91N6-03102
|
[1] |
HYD OIL LEVEL
|
|
| 1-8. |
91N6-03111
|
[1] |
HYD OIL LUBRICATION
|
|
| 1-9. |
91N6-04122
|
[2] |
DECAL-KEEP CLEAR
|
|
| 1-10. |
91N6-04132
|
[2] |
LIFTING EYE
|
|
| 1-11. |
91E1-14110
|
[1] |
NAME PLATE
|
|
| 1-11. |
91E1-14130
|
[1] |
NAME PLATE
|
|
| 1-12. |
91N6-05110
|
[4] |
SLINGING IDEOGRAM
|
|
| 1-13. |
91N6-07102
|
[2] |
SIDE KEEP CLEAR
|
|
| 1-14. |
91N6-07112
|
[3] |
STAY FIX
|
|
| 1-15. |
91N6-07121
|
[1] |
SHEARING
|
|
| 1-16. |
91N6-07131
|
[1] |
NO STEP-ENGINE HOOD
|
|
| 1-17. |
91N6-07141
|
[1] |
TRANSPORTING
|
|
| 1-18. |
91E1-27110
|
[1] |
LOW EMISS ENG
|
|
| 1-19. |
91N6-07201
|
[1] |
CONTROL IDEOGRAM
|
|
| 1-20. |
91N6-07212
|
[1] |
CONTROL IDEOGRAM-LH
|
|
| 1-21. |
91N6-07221
|
[1] |
CONTROL IDEOGRAM-RH
|
|
| 1-22. |
91N6-07231
|
[1] |
REF OPERATOR MANUAL
|
|
| 1-23. |
91N6-07241
|
[1] |
MAX HEIGHT
|
|
| 1-24. |
91N6-07252
|
[2] |
SAFETY FRONT WINDOW
|
|
| 1-25. |
91N6-07261
|
[1] |
ALTERNATE EXIT
|
|
| 1-26. |
91N6-07272
|
[1] |
AIR CONDITION FILTER
|
|
| 1-27. |
91N6-07301
|
[1] |
CONSOLE BOX-TILTING
|
|
| 1-28. |
91N6-07311
|
[1] |
SAFETY LEVER
|
|
| 1-29. |
91N6-07320
|
[1] |
INTEFERENCE
|
|
| 1-30. |
91N6-07330
|
[1] |
CLAMP-LOCKING
|
|
| 2. |
91E1-26300
|
[11] |
STEP TREAD
|
|
| 3. |
91EK-12010
|
[4] |
RIVET
|
|
| 4. |
91N8-10101
|
[1] |
TRADE MARK KIT
|
|
| 4-1. |
91N8-17111
|
[1] |
MODEL NAME-LH
|
|
| 4-2. |
91N8-17121
|
[1] |
MODEL NAME-RH
|
|
| 4-3. |
91N8-17140
|
[2] |
LOGO ROBEX
|
|
| 4-4. |
91N6-21120
|
[2] |
TRADE MARK-BOOM/CWT
|
|
| 4-5. |
91N6-21130
|
[1] |
TRADE MARK-BOOM/CWT
|
|
| 4-6. |
91N6-04101
|
[2] |
KEEP CLEAR
|
|
| 6. |
91N6-22160
|
[1] |
NOISE LEVEL-LWA
|
|
| 7. |
91N8-17161
|
[1] |
SERVICE INSTRUCTION
|
|
| 8. |
91N8-17500
|
[1] |
LIFTING CHART
|
|
