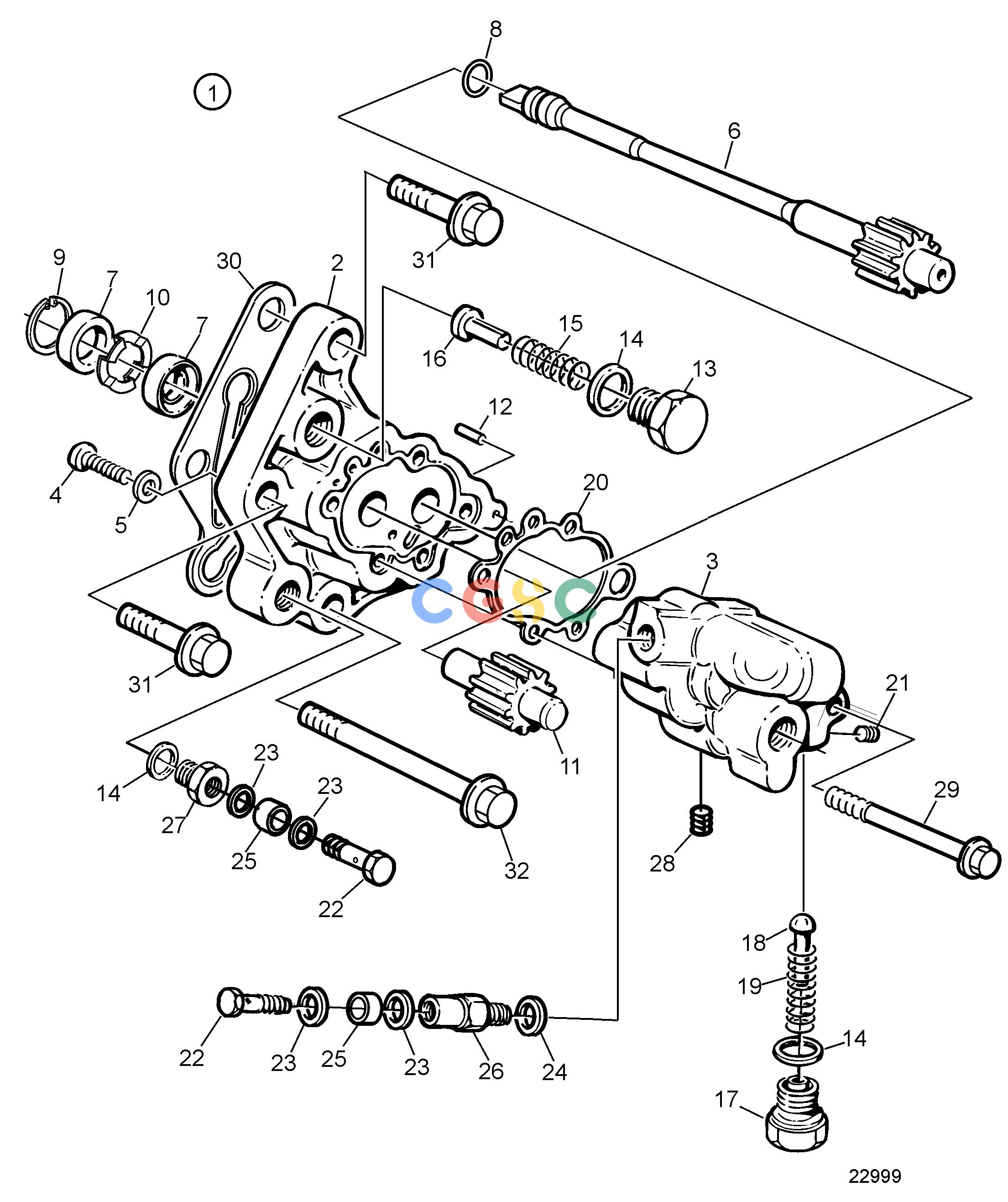

沃尔沃零件查询D12D-A MG; D12D-E MGFuel SystemFuel Feed Pump, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
771 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
20752310
|
[1] |
Fuel pump
|
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
969408
|
[5] |
Six point socket scr
|
|
| 5. |
940090
|
[5] |
Washer
|
|
| 6. |
|
|
|
|
| 7. |
8148471
|
[2] |
Sealing ring
|
|
| 8. |
976013
|
[1] |
O-ring
|
|
| 9. |
951085
|
[1] |
Snap ring
|
|
| 10. |
|
|
|
|
| 11. |
|
|
|
|
| 12. |
|
|
|
|
| 13. |
1677545
|
[1] |
Plug
|
|
| 14. |
947622
|
[2] |
Gasket
|
|
| 15. |
76706
|
[1] |
Compression spring
|
|
| 16. |
|
|
|
|
| 17. |
1677545
|
[1] |
Plug
|
|
| 18. |
20405026
|
[1] |
Valve peg
|
|
| 19. |
20810227
|
[1] |
Compression spring
|
|
| 20. |
1547951
|
[1] |
Sealing ring
|
|
| 21. |
1677217
|
[1] |
Sealing plug
|
|
| 22. |
74033
|
[2] |
Hollow screw
|
|
| 23. |
11992
|
[4] |
Gasket
|
|
| 24. |
18665
|
[1] |
Gasket
|
|
| 25. |
949873
|
[2] |
Spacer washer
|
|
| 26. |
20430101
|
[1] |
Valve
|
|
| 27. |
8148570
|
[1] |
Plug
|
|
| 28. |
20381155
|
[1] |
Sealing plug
|
|
| 29. |
3184837
|
[1] |
Flange screw
|
|
| 30. |
3964833
|
[1] |
Gasket
|
|
| 31. |
965220
|
[2] |
Flange screw
|
|
| 32. |
965190
|
[1] |
Flange screw
|
|
