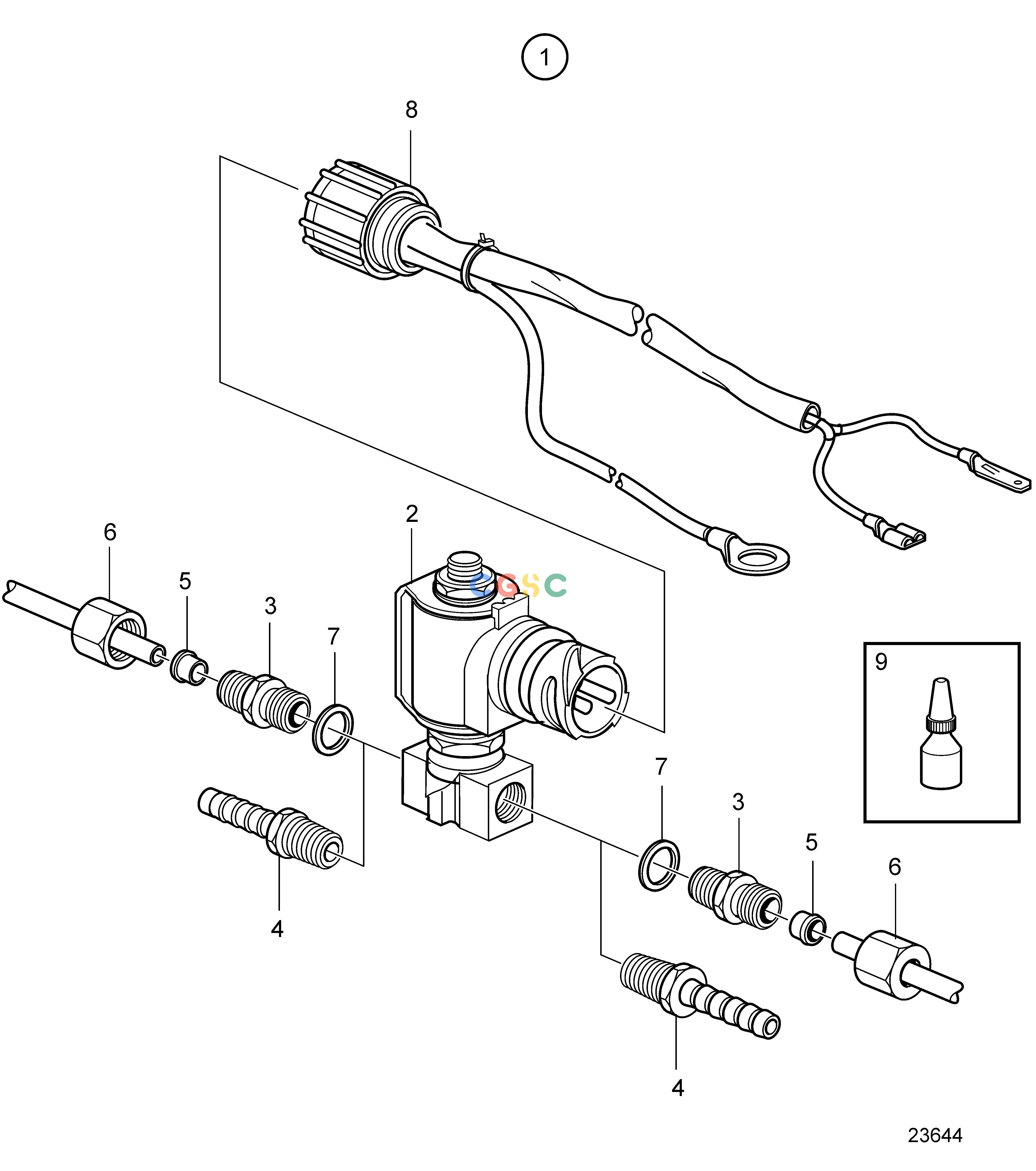

沃尔沃零件查询D12D-A MG; D12D-E MGFuel SystemFuel ValveEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
406 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
70351592
|
[1] |
Solenoid valve
|
|
| 2. |
22463597
|
[1] |
Solenoid valve
|
|
| 3. |
944524
|
[2] |
Nipple
|
For Fuel pipe,Belongs to valve 70351592
|
| 3. |
941754
|
[2] |
Nipple
|
For fuel hose,Belongs to valve 22463597
|
| 4. |
3825000
|
[2] |
Hose nipple
|
For Fuel Pipe,Belongs to valve 70351592
|
| 4. |
969305
|
[2] |
Hose nipple
|
For fuel hose,Belongs to valve 22463597
|
| 5. |
980781
|
[2] |
Ferrule
|
|
| 6. |
956983
|
[2] |
Fitting nut
|
|
| 7. |
18817
|
[2] |
Gasket
|
|
| 8. |
3841897
|
[1] |
Wiring harness
|
|
| 9. |
85145750
|
[1] |
Locking fluid
|
|
| 9. |
1161053
|
[1] |
Locking fluid
|
Replaced by, 85145750
|
