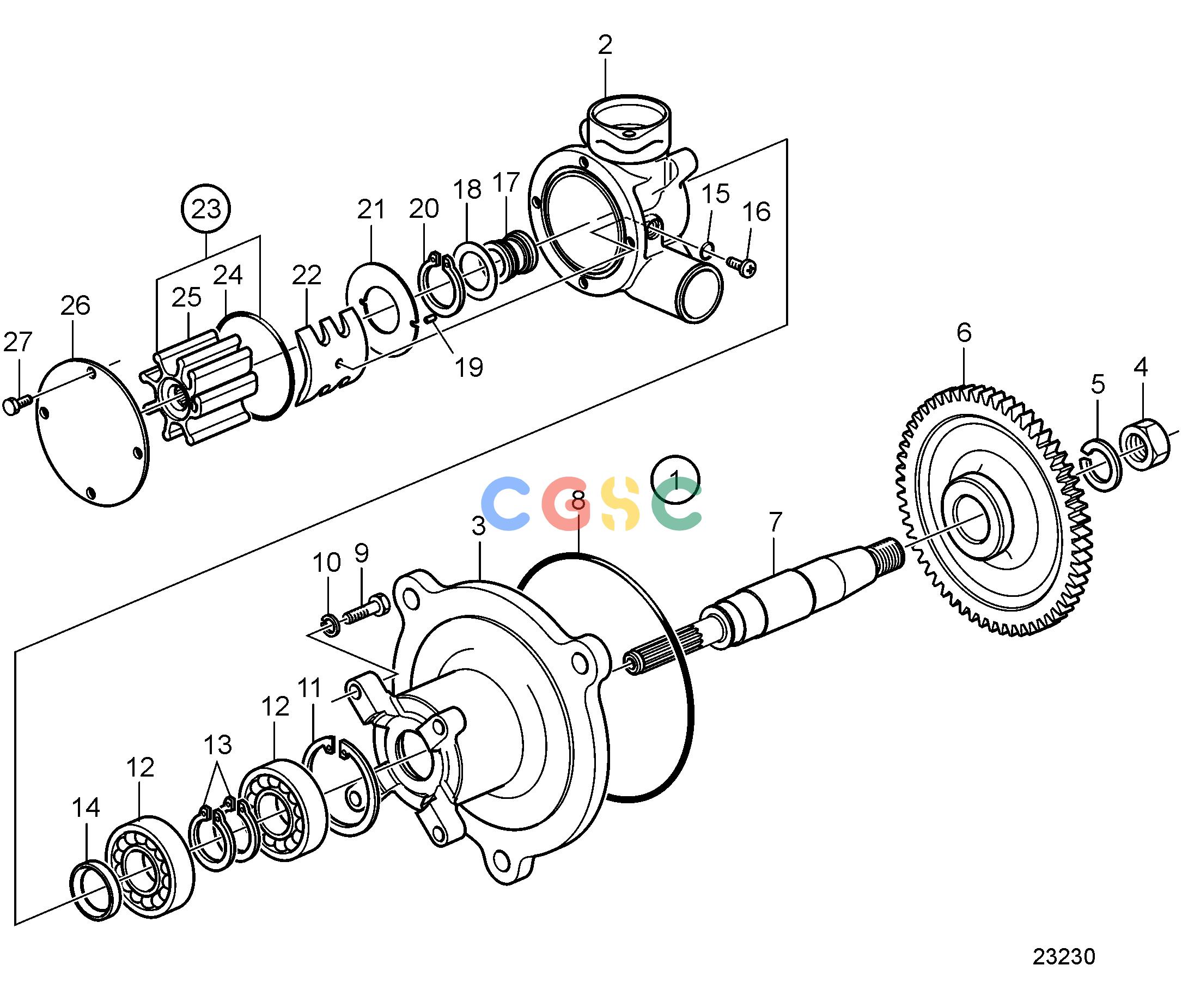

沃尔沃零件查询D13B-F MG; D13B-E MG; D13B-E MG (FE); D13B-F MG (FE)Cooling SystemSea Water Pump for Keel Cooling, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
587 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3589550
|
[1] |
Water pump
|
Replaced by 21167147
|
| 1. |
21167147
|
[1] |
Sea water pump
|
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
3587886
|
[1] |
Hexagon nut
|
|
| 5. |
941914
|
[1] |
Spring washer
|
|
| 6. |
8131848
|
[1] |
Gear
|
|
| 7. |
|
|
|
|
| 8. |
948977
|
[1] |
O-ring
|
|
| 9. |
940135
|
[4] |
Hexagon screw
|
|
| 10. |
941907
|
[4] |
Spring washer
|
|
| 11. |
825735
|
[1] |
Lock ring
|
|
| 12. |
11013
|
[2] |
Ball bearing
|
|
| 13. |
847230
|
[2] |
Lock ring
|
|
| 14. |
845795
|
[1] |
Sealing ring
|
|
| 15. |
3583614
|
[1] |
O-ring
|
|
| 16. |
3883927
|
[1] |
Screw
|
|
| 17. |
3883926
|
[1] |
Seal
|
|
| 18. |
888388
|
[1] |
Washer
|
|
| 19. |
888387
|
[1] |
Pin
|
|
| 20. |
809444
|
[1] |
Lock ring
|
|
| 21. |
807589
|
[1] |
Wear washer
|
|
| 22. |
3883923
|
[1] |
Cam
|
|
| 23. |
21200961
|
[1] |
Impeller kit
|
|
| 24. |
3587885
|
[1] |
O-ring
|
|
| 25. |
|
|
|
|
| 26. |
3587879
|
[1] |
End cover
|
|
| 27. |
3583604
|
[4] |
Hexagon screw
|
|
