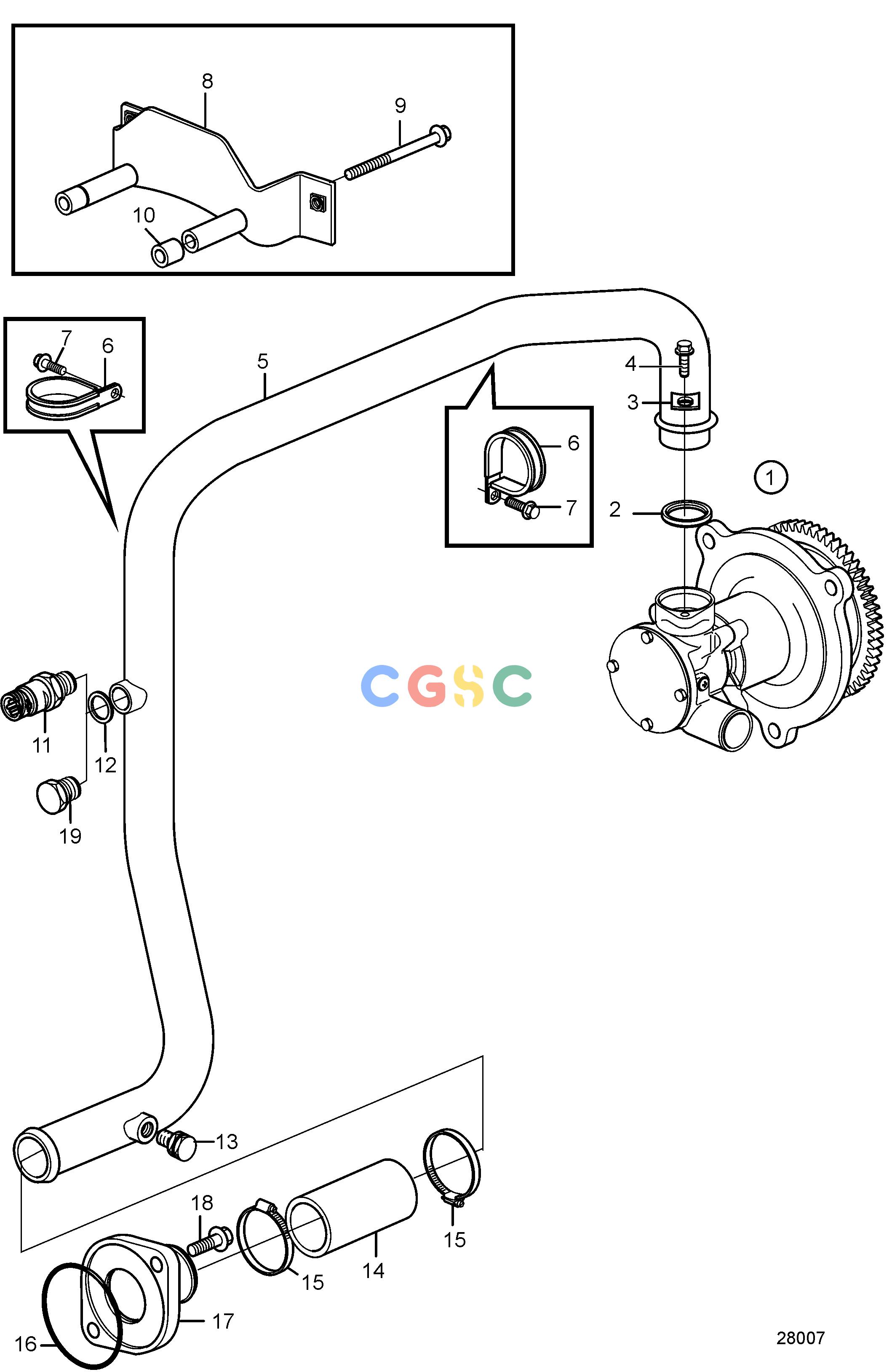

沃尔沃零件查询D13B-F MG; D13B-E MG; D13B-E MG (FE); D13B-F MG (FE)Cooling SystemSea Water Pump for Keel CoolingEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
297 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21167147
|
[1] |
Sea water pump
|
|
| 1. |
|
|
|
|
| 2. |
1556905
|
[1] |
Sealing ring
|
|
| 3. |
1546531
|
[1] |
Lock brace
|
|
| 4. |
984733
|
[1] |
Flange screw
|
|
| 5. |
21514386
|
[1] |
Coolant pipe
|
|
| 6. |
949850
|
[2] |
Clamp
|
|
| 7. |
984733
|
[2] |
Flange screw
|
|
| 8. |
21275337
|
[1] |
Bracket
|
|
| 9. |
984762
|
[2] |
Flange screw
|
|
| 10. |
855773
|
[2] |
Spacer sleeve
|
|
| 11. |
47702500_070
|
|
Sensor
|
|
| 12. |
11998
|
[1] |
Gasket
|
|
| 13. |
981749
|
[1] |
Plug
|
|
| 14. |
3808196
|
[1] |
Hose
|
|
| 15. |
961669
|
[2] |
Hose clamp
|
|
| 16. |
975675
|
[1] |
O-ring
|
|
| 17. |
21514503
|
[1] |
Coolant pipe
|
|
| 18. |
984735
|
[2] |
Flange screw
|
|
| 19. |
960632
|
[1] |
Plug
|
SN1013523800-
|
