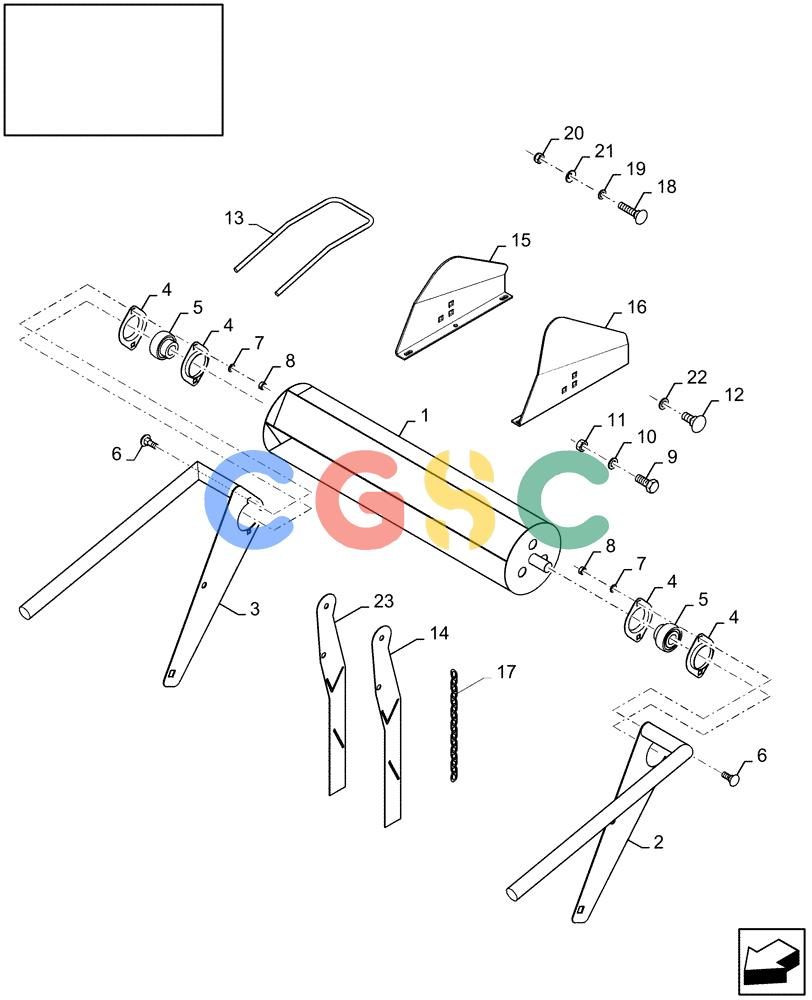

凯斯零件查询(LB333P) - BIG RECTANGULAR BALER 'PACKER CUTTER' (9/08-12/12) (18.87355679[01]) - DIA : ROLLER WINDGUARD KIT - 1.98M PICK-UP Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
897 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
87355679
|
[1] |
DIA KIT, HARVESTER
|
ZED
|
| 1. |
84801457
|
[1] |
ROLLER
|
ZED
|
| 2. |
87742048
|
[1] |
BRACKET, SUPPORTING
|
ZED
|
| 3. |
87742046
|
[1] |
BRACKET, SUPPORTING
|
ZED
|
| 4. |
86548974
|
[4] |
FLANGE,Bearing
|
ZED
Superseded by part number: 50591
|
| 5. |
325103
|
[2] |
BALL BEARING,25mm ID x 52mm OD x 15mm W
|
ZED
|
| 6. |
120037
|
[4] |
CARRIAGE BOLT,Short Nk, M8 x 20mm, Cl 8.8, Full Thd
|
ZED
Superseded by part number: 86507486
|
| 7. |
322358
|
[4] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 8. |
9706690
|
[4] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 9. |
9706687
|
[2] |
BOLT,M12 x 1.75 x 30mm, Cl 8.8
|
NH
|
| 10. |
140046
|
[4] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 11. |
9706685
|
[2] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 12. |
120044
|
[2] |
CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8
|
NH
|
| 13. |
87377536
|
[3] |
TINE
|
ZED
|
| 14. |
87328174
|
[1] |
CALIPER
|
ZED
|
| 15. |
87382331
|
[1] |
PLATE
|
ZED
|
| 16. |
87382333
|
[1] |
PLATE
|
ZED
|
| 17. |
84007724
|
[1] |
CHAIN,1276mm L
|
ZED
|
| 18. |
374892
|
[3] |
CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8
|
NH
|
| 19. |
140017
|
[12] |
WASHER,M10 x 20mm OD x 2mm Thk
|
PA
Superseded by part number: 9820489
|
| 20. |
100037
|
[3] |
LOCK NUT,M10 x 1.5, Cl 8
|
NH
|
| 21. |
140045
|
[3] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 22. |
140042
|
[2] |
WASHER,11mm ID x 34mm OD x 3mm Thk
|
GI
|
| 23. |
87379775
|
[1] |
CALIPER
|
ZED
|
