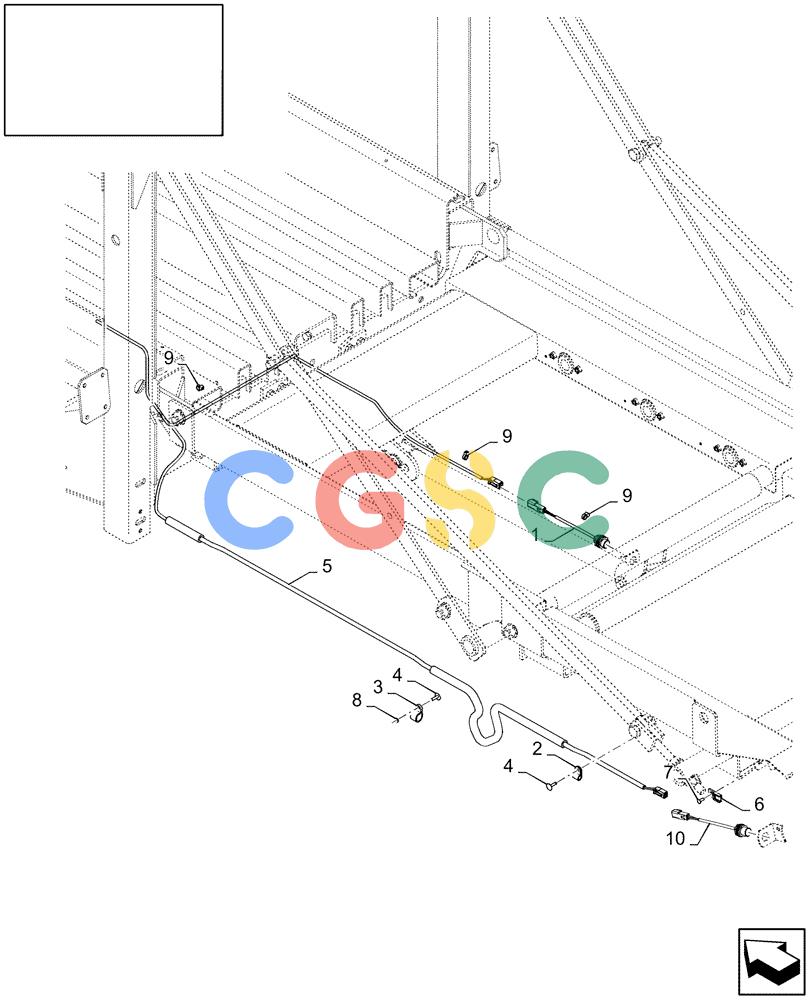

凯斯零件查询(LB333P) - BIG RECTANGULAR BALER 'PACKER CUTTER' (9/08-12/12) (18.87485071[01]) - DIA : ROLLER BALE CHUTE - SEASON 2009 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
150 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
87485071
|
[1] |
DIA KIT, HARVESTER
|
ATT
|
| 1. |
87342073
|
[1] |
SENSOR
|
GI
B11 - BALE DROP
|
| 2. |
9507807
|
[4] |
CLAMP,8.3mm ID, 6.7mm Bolt Hole, P Type
|
ZED
|
| 3. |
84818443
|
[3] |
CLAMP,16.3mm ID, 6.7mm Bolt Hole, P Type
|
ZED
|
| 4. |
9512290
|
[7] |
RIVET,Pop, 4.8mm OD x 17.8mm L
|
ZED
|
| 5. |
87316472
|
[1] |
WIRE HARNESS
|
ZED
|
| 6. |
84058832
|
[1] |
CLIP
|
ZED
|
| 7. |
445394
|
[1] |
RIVET,Pop, 3/16" x 1/2" OAL
|
ZED
Superseded by part number: 151-573
|
| 8. |
9824326
|
[2] |
WASHER,5.3mm ID x 10mm OD x 1mm Thk
|
NH
|
| 9. |
86566990
|
[16] |
CABLE TIE,292mm OAL x 4.8mm W
|
ZED
CABLE STRAP
|
