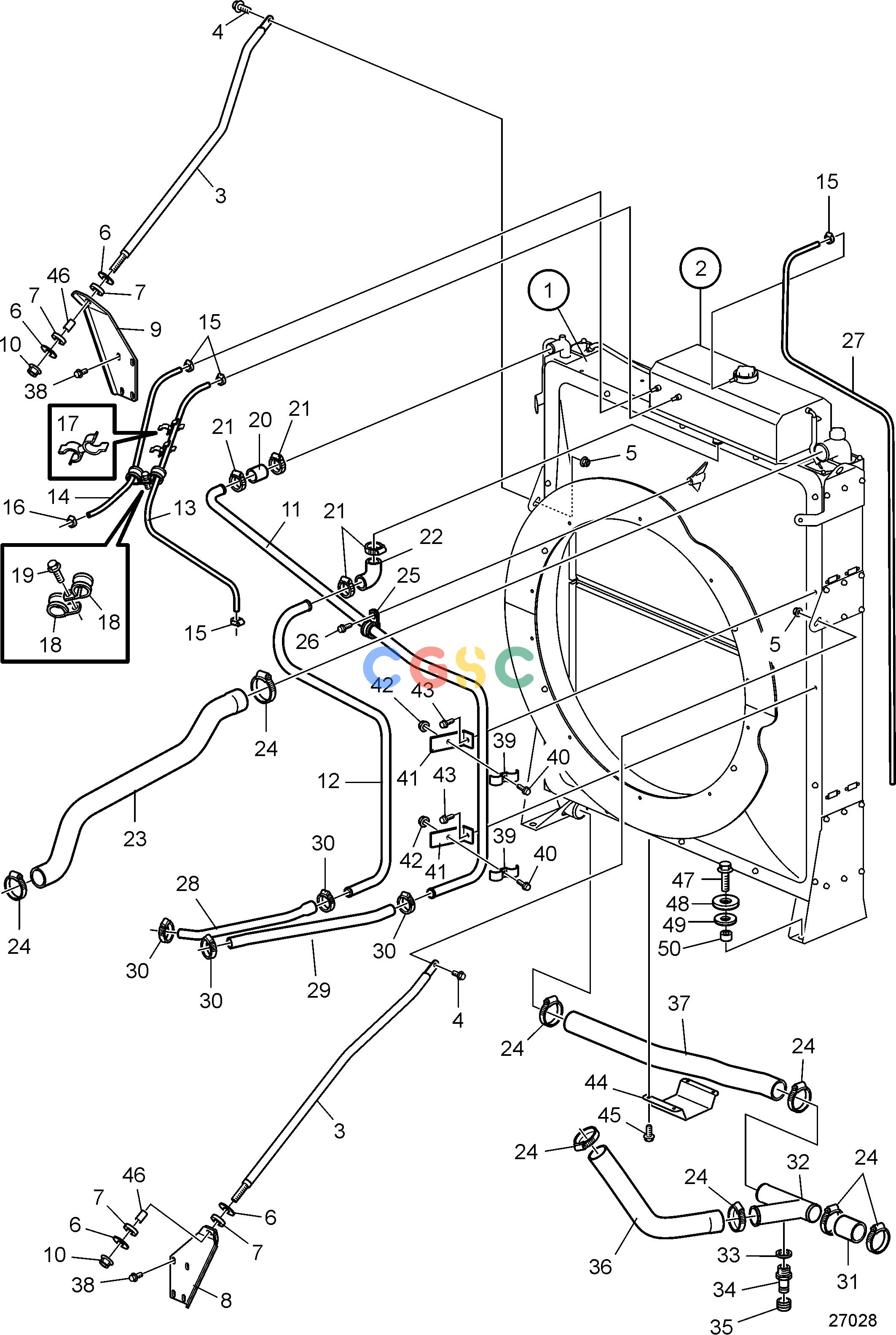

沃尔沃零件查询D16C-A MGCooling SystemRadiator with Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
368 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
|
|
|
|
| 3. |
3594661
|
[1] |
Stay
|
|
| 4. |
984752
|
[2] |
Flange screw
|
|
| 5. |
990941
|
[2] |
Flange nut
|
|
| 6. |
948556
|
[4] |
Washer
|
|
| 7. |
866857
|
[4] |
Rubber bushing
|
|
| 8. |
|
|
|
|
| 9. |
|
|
|
|
| 10. |
966818
|
[2] |
Flange nut
|
|
| 11. |
3883179
|
[1] |
Coolant pipe
|
|
| 12. |
3883181
|
[1] |
Coolant pipe
|
|
| 13. |
943367
|
[1] |
Rubber hose
|
L=1200mm
|
| 14. |
943366
|
[1] |
Rubber hose
|
L=150mm
|
| 15. |
961663
|
[4] |
Hose clamp
|
|
| 16. |
994556
|
[1] |
Hose clamp
|
|
| 17. |
9205207
|
[1] |
Retainer
|
|
| 18. |
949747
|
[1] |
Clamp
|
|
| 19. |
984733
|
[1] |
Flange screw
|
|
| 20. |
3594076
|
[1] |
Hose
|
|
| 21. |
994560
|
[4] |
Hose clamp
|
|
| 22. |
3883208
|
[1] |
Hose bend
|
|
| 23. |
40005061
|
[1] |
Hose
|
|
| 24. |
943480
|
[8] |
Hose clamp
|
|
| 25. |
952640
|
[1] |
Clamp
|
|
| 26. |
984736
|
[1] |
Flange screw
|
|
| 27. |
943367
|
[1] |
Rubber hose
|
L=2000mm
|
| 28. |
3594760
|
[1] |
Hose
|
|
| 29. |
952973
|
[1] |
Hose
|
L=600mm
|
| 30. |
994561
|
[4] |
Hose clamp
|
|
| 31. |
3885228
|
[1] |
Hose
|
|
| 32. |
3875056
|
[1] |
Pipe connection
|
|
| 33. |
957185
|
[1] |
Gasket
|
|
| 34. |
1676622
|
[1] |
Nipple
|
|
| 35. |
476279
|
[1] |
Protecting cap
|
|
| 36. |
3589218
|
[1] |
Hose
|
|
| 37. |
3885229
|
[1] |
Hose
|
|
| 38. |
984752
|
[8] |
Flange screw
|
|
| 39. |
3841802
|
[2] |
Clamp
|
|
| 40. |
984738
|
[2] |
Flange screw
|
|
| 41. |
3883206
|
[2] |
Bracket
|
|
| 42. |
990940
|
[2] |
Flange nut
|
|
| 43. |
984732
|
[2] |
Flange screw
|
|
| 44. |
21133717
|
[1] |
Bracket
|
|
| 45. |
984733
|
[4] |
Flange screw
|
|
| 46. |
3594765
|
[2] |
Bushing
|
|
| 47. |
984833
|
[4] |
Flange screw
|
|
| 48. |
948556
|
[4] |
Washer
|
|
| 49. |
866857
|
[4] |
Rubber bushing
|
|
| 50. |
3595081
|
[4] |
Bushing
|
|
