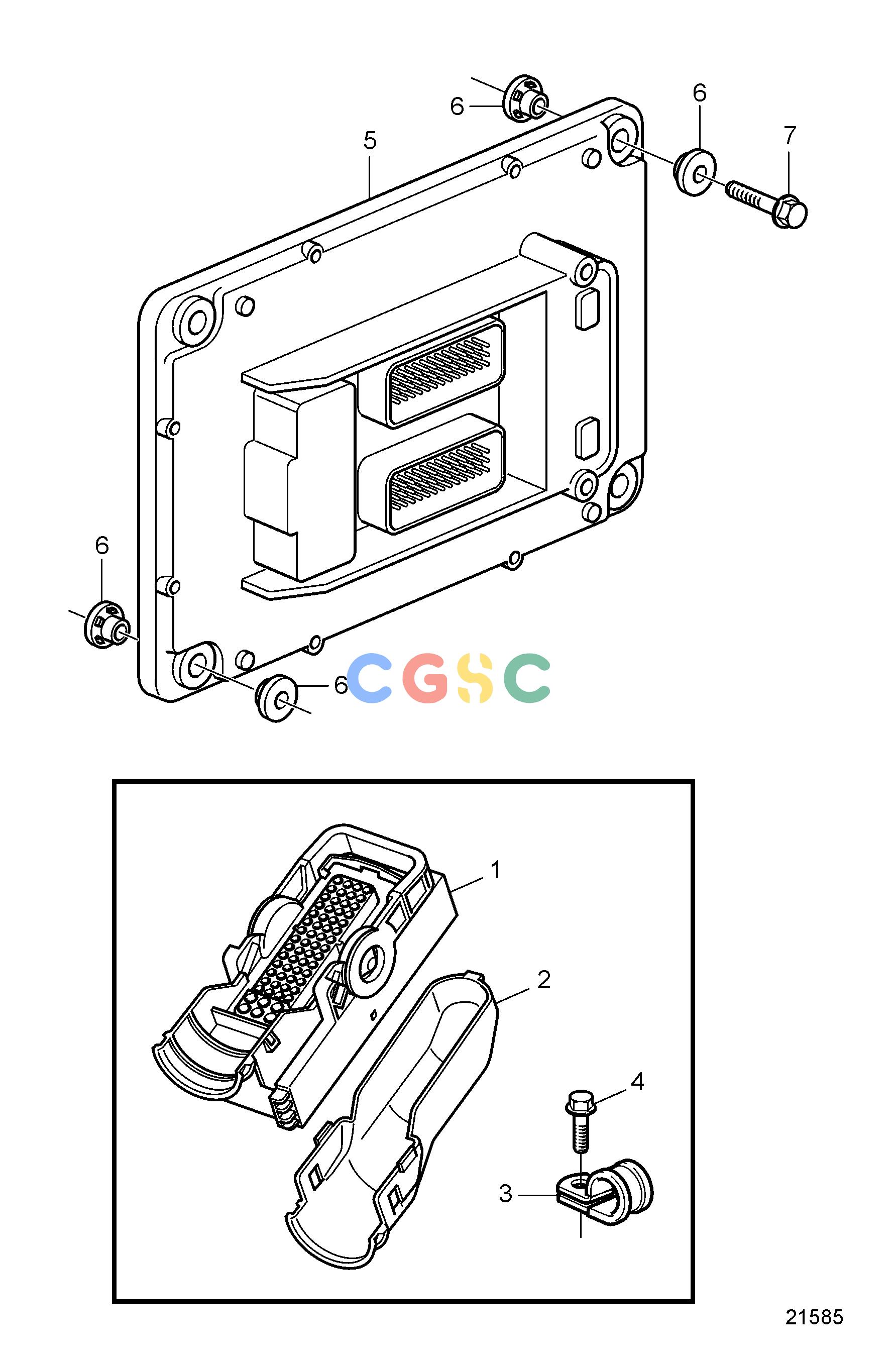

沃尔沃零件查询D16C-A MGElectrical SystemControl Unit and ConnectorEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
790 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
20429842
|
[1] |
Housing
|
Black
|
| 1. |
20429843
|
[1] |
Housing
|
Grey
|
| 2. |
20429844
|
[1] |
Adapter
|
|
| 3. |
949997
|
[2] |
Clamp
|
|
| 4. |
984734
|
[2] |
Flange screw
|
|
| 5. |
20814594
|
[1] |
Control unit, not programmed
|
|
| 5. |
3586269
|
[1] |
Software
|
Warehouse programming. This p/n can not be ordered, but will be used for invoicing.
|
| 5. |
3586268
|
[1] |
Software
|
Vodia-programming. This p/n can not be ordered, but will be used for invoicing.
|
| 6. |
3095161
|
[4] |
Rubber cushion
|
|
| 7. |
984738
|
[4] |
Flange screw
|
|
