纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (08-101-00[01]) - BOOM CYLINDER - RIGHT - WITHOUT LOAD HOLD New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
111 次

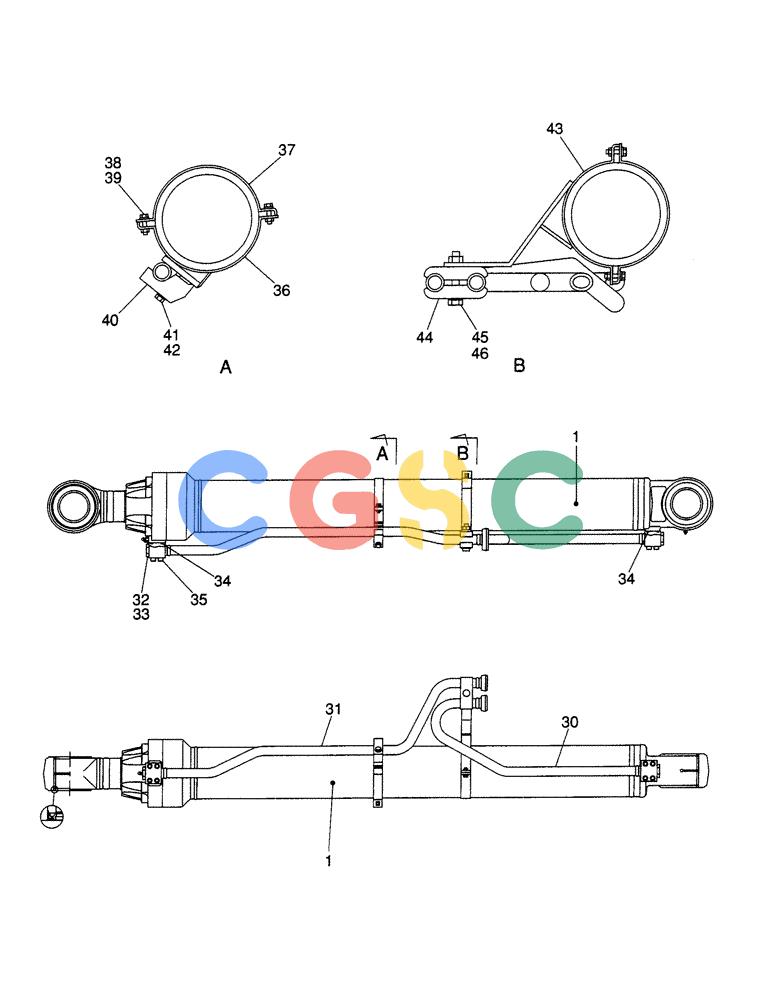

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | KUV0139 | [1] | HYDRAULIC CYLINDER | SUM |
| 1. | KUV0186 | [1] | HYDRAULIC CYLINDER | SUM |
| 30. | LR00446 | [1] | PIPE ASSY. | SUM |
| 31. | LR00447 | [1] | PIPE ASSY. | SUM |
| 32. | LK00250 | [2] | PLUG | SUM |
| 33. | 154539A1 | [2] | O-RING | SUM |
| 34. | 154579A1 | [2] | O-RING | SUM |
| 35. | 169020A1 | [8] | SCREW | SUM Superseded by part number: 156231A1 |
| 36. | LD00019 | [1] | CLAMP BRACKET | SUM |
| 37. | LD00020 | [2] | CLAMP BRACKET | SUM |
| 38. | 158131A1 | [4] | BOLT,High Strength, M10 x 1.5 x 35mm, Cl 10.9 | SUM |
| 39. | 156227A1 | [4] | WASHER | SUM |
| 40. | 155736A1 | [1] | HALF-FLANGE | SUM Superseded by part number: LS003200 |
| 41. | 153910A1 | [1] | BOLT,High Strength, Hex, M14 x 80mm | SUM |
| 42. | 892-11014 | [1] | LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk | CAS |
| 43. | LD00021 | [1] | CLAMP BRACKET | SUM |
| 44. | LS00104 | [2] | PIPE ASSY. | SUM |
| 45. | KAB0004 | [1] | BOLT | SUM |
| 46. | LUU0024 | [1] | SPRING WASHER | SUM |
