纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (08-099-00[01]) - OPTION CONTROL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
163 次

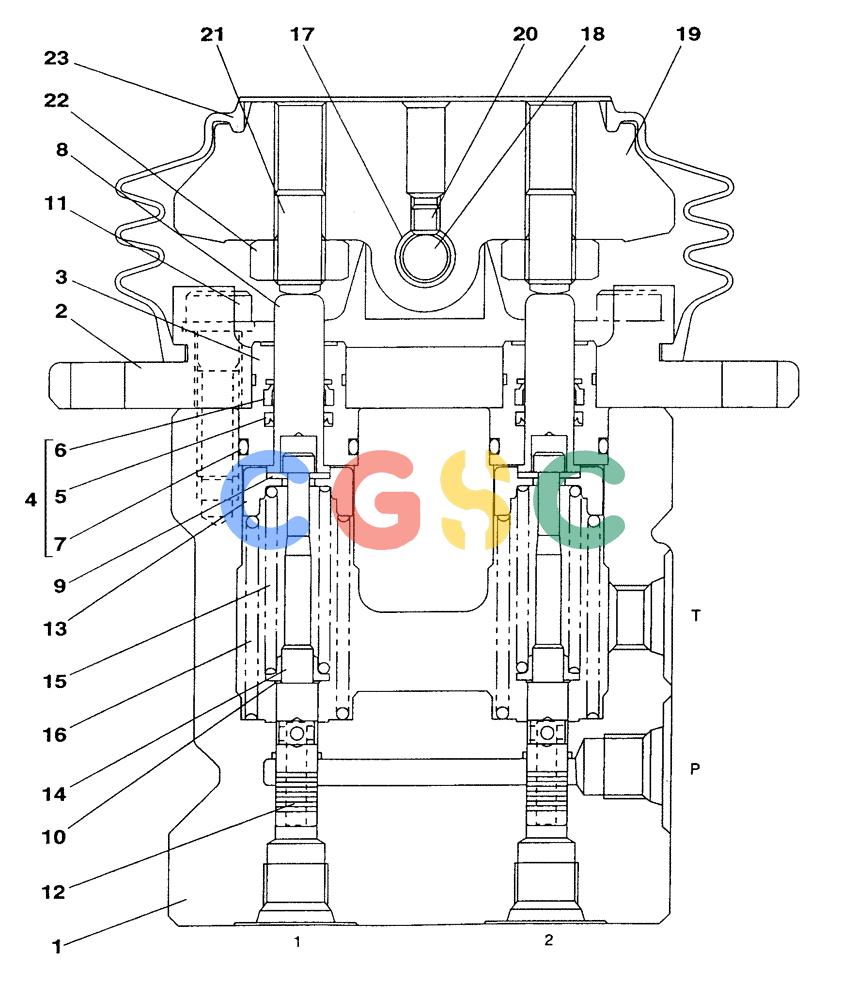

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | KRJ5864 | [1] | CONTROL BLOCK | SUM |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONHousing |
| 2. | 160308A1 | [1] | COVER | SUM |
| 3. | 160055A1 | [2] | PLUG | SUM |
| 4. | 160130A1 | [1] | SEAL KIT | SUM |
| 5. | CDP0818 | [2] | OIL SEAL | SUM |
| 6. | 160014A1 | [2] | SCRAPER | SUM |
| 7. | 154491A1 | [2] | O-RING | SUM |
| 8. | LB00536 | [2] | TAPPET | SUM Superseded by part number: 160023A1 |
| 9. | LA00056 | [4] | WASHER | SUM |
| 10. | LA00057 | [2] | SET OF WASHERS | SUM |
| 11. | 160284A1 | [2] | BOLT,Hex Skt | SUM |
| 13. | 160232A1 | [2] | SPRING SEAT | SUM |
| 14. | 160283A1 | [2] | WASHER | SUM |
| 15. | LG00331 | [2] | COMPRESSION SPRING | SUM |
| 16. | 160250A1 | [2] | SPRING | SUM |
| 17. | 160035A1 | [2] | BUSHING | SUM |
| 18. | 160022A1 | [1] | SHAFT | SUM |
| 19. | 160090A1 | [1] | CAM | SUM |
| 20. | LUC0103 | [2] | SCREW | SUM |
| 21. | 160282A1 | [2] | SCREW | SUM |
| 22. | 160281A1 | [1] | LOCK NUT | SUM |
| 23. | 160001A1 | [1] | BELLOWS | SUM |
