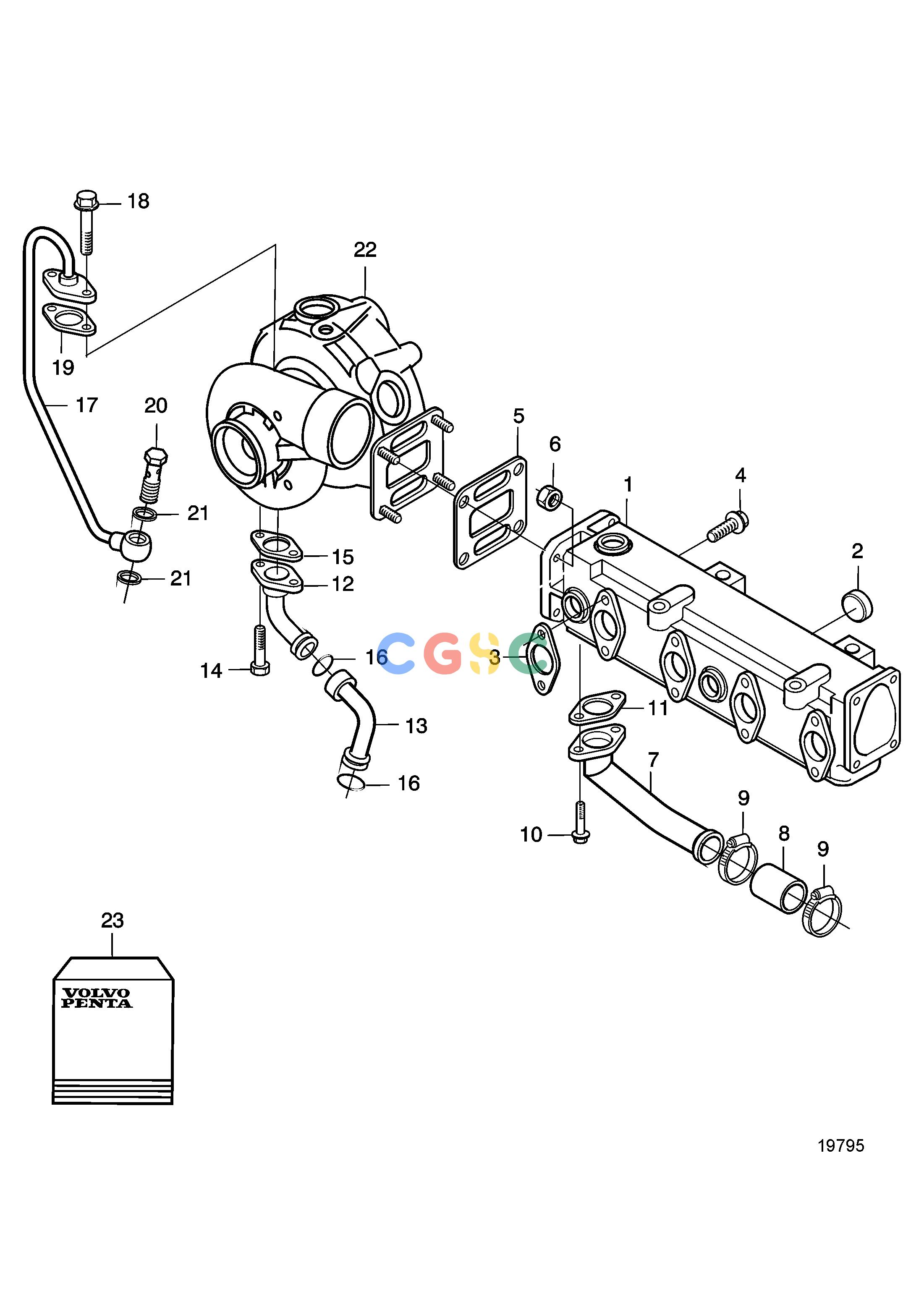

沃尔沃零件查询D5A-T; D5A-TA; D5A-B TA; D7A-T; D7A-TA; D7A-B TAIntake and Exhaust SystemTurbo and Exhaust Pipe. 1800rpmEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
745 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
888782
|
[1] |
Exhaust manifold
|
|
| 2. |
20412745
|
[7] |
Cap plug
|
|
| 3. |
20557208
|
[4] |
Gasket
|
|
| 4. |
888783
|
[8] |
Flange screw
|
|
| 5. |
888880
|
[1] |
Gasket
|
|
| 6. |
20412308
|
[4] |
Hexagon nut
|
|
| 7. |
888891
|
[1] |
Water pipe
|
|
| 8. |
888816
|
[1] |
Rubber sleeve
|
|
| 9. |
853548
|
[2] |
Hose clamp
|
|
| 10. |
984735
|
[2] |
Flange screw
|
|
| 11. |
20405825
|
[1] |
Gasket
|
|
| 12. |
888872
|
[1] |
Lubricating pipe
|
|
| 13. |
888873
|
[1] |
Lubricating pipe
|
|
| 14. |
984734
|
[2] |
Flange screw
|
|
| 15. |
20405790
|
[1] |
Plane gasket
|
|
| 16. |
20405822
|
[2] |
O-ring
|
|
| 17. |
888871
|
[1] |
Lubricant line
|
|
| 18. |
984734
|
[2] |
Flange screw
|
|
| 19. |
20405595
|
[1] |
Gasket
|
|
| 20. |
25167
|
[1] |
Hollow screw
|
|
| 21. |
969011
|
[2] |
Gasket
|
|
| 22. |
888884
|
[1] |
Turbocharger
|
|
| 22. |
3802171
|
[1] |
Turbocharger
|
|
| 22. |
|
|
|
|
| 23. |
3842145
|
[1] |
Gasket kit, inlet/exhaust
|
See group 99
|
| 23. |
3842149
|
[1] |
Gasket kit, connection, turbo
|
See group 99
|
| 23. |
20460816
|
[1] |
Repair kit
|
|
