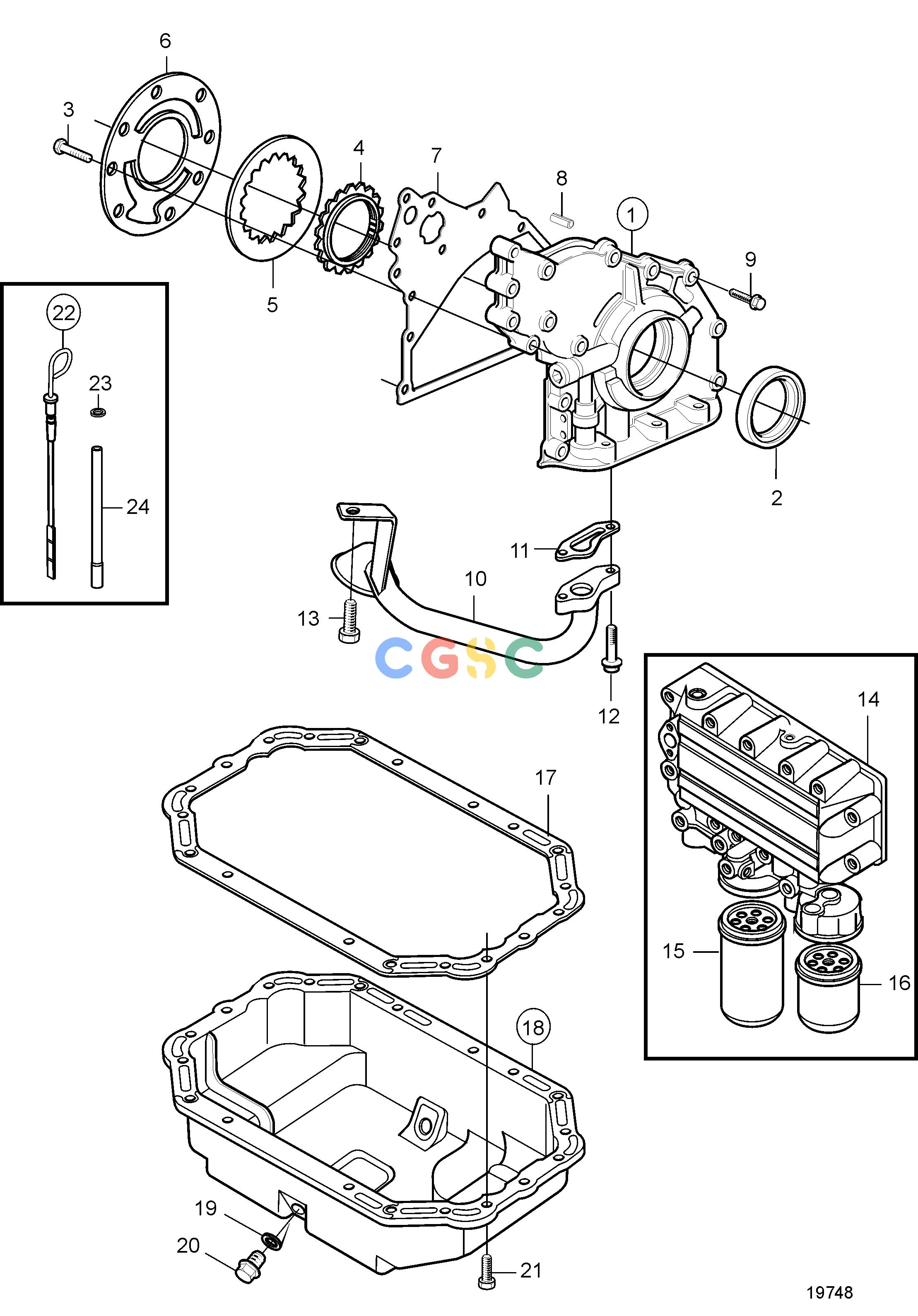

沃尔沃零件查询D5A-T; D5A-TA; D5A-B TA; D7A-T; D7A-TA; D7A-B TALubricating SystemLubricating SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
601 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
20515177
|
[1] |
Service cover
|
SN-01098271
|
| 1. |
20882047
|
[1] |
Service cover
|
SN01098272-
|
| 2. |
20412568
|
[1] |
Lip seal
|
|
| 3. |
20451738
|
[8] |
Hex. socket sunk scr
|
L=16mm
|
| 4. |
|
|
|
|
| 5. |
|
|
|
|
| 6. |
|
|
|
|
| 7. |
20742661
|
[1] |
Gasket
|
|
| 8. |
20405603
|
[1] |
Spring pin
|
|
| 9. |
20412324
|
[14] |
Flange screw
|
L=35mm
|
| 10. |
20405635
|
[1] |
Suction pipe
|
|
| 11. |
20405888
|
[1] |
Gasket
|
|
| 12. |
984735
|
[2] |
Flange screw
|
|
| 13. |
20405792
|
[1] |
Flange screw
|
|
| 14. |
|
|
|
|
| 15. |
3831236
|
[1] |
Oil filter
|
|
| 16. |
7745950_152
|
|
Fuel filter
|
|
| 17. |
20405843
|
[1] |
Gasket
|
|
| 18. |
11700301
|
[1] |
Oil pan
|
|
| 19. |
11998
|
[2] |
Gasket
|
|
| 20. |
20405506
|
[2] |
Plug
|
|
| 21. |
20405792
|
[26] |
Flange screw
|
L=16mm
|
| 22. |
20405642
|
[1] |
Dipstick
|
|
| 23. |
20412343
|
[1] |
Sealing ring
|
|
| 24. |
20405644
|
[1] |
Guide tube
|
|
