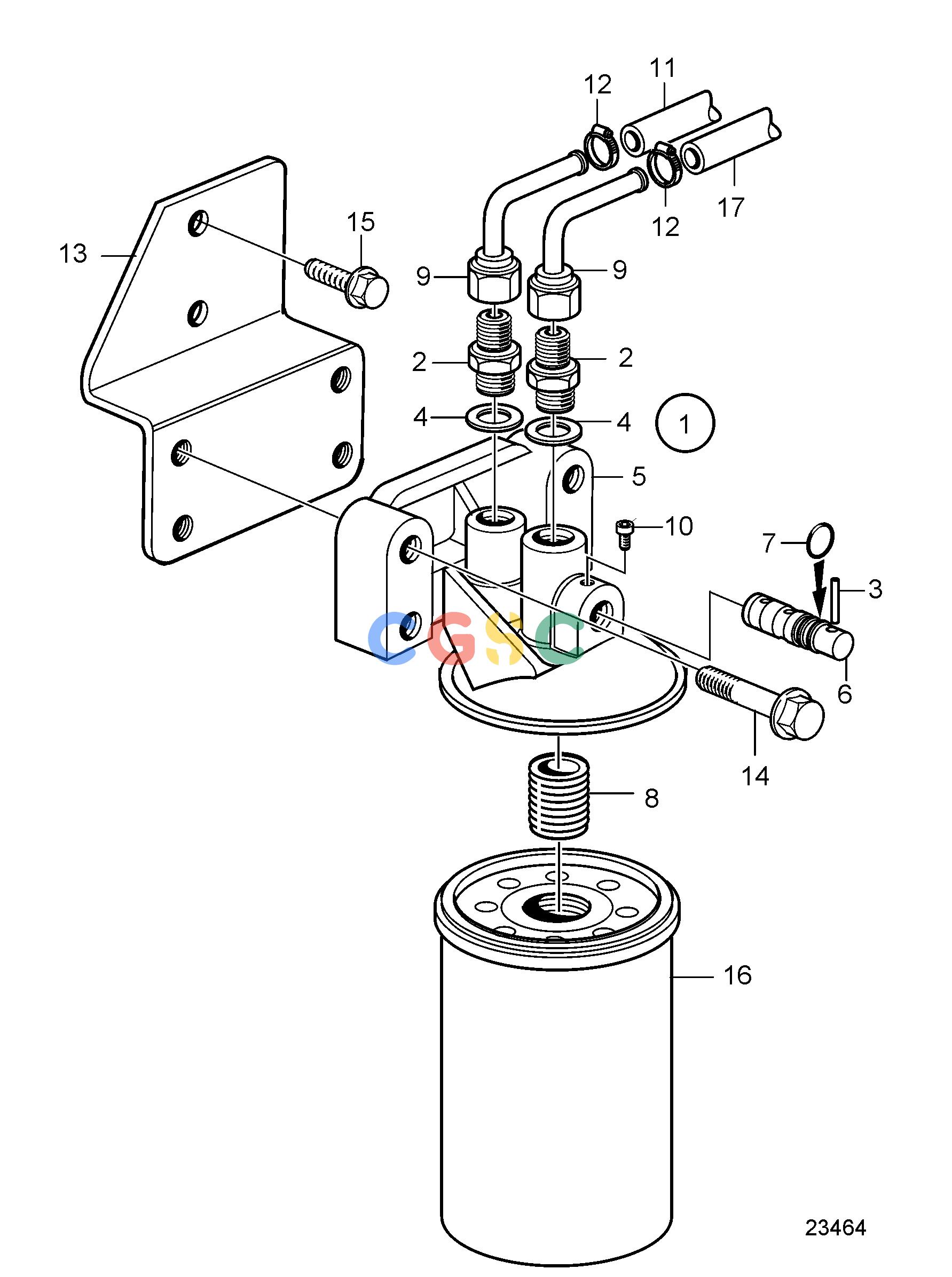

沃尔沃零件查询D9A2A; D9A2A MG; D9A2A D9A-MGCooling SystemCooling Water FilterEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
408 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3838150
|
[1] |
Bracket
|
|
| 2. |
941754
|
[2] |
Nipple
|
|
| 3. |
951968
|
[1] |
Spring pin
|
|
| 4. |
969011
|
[2] |
Gasket
|
|
| 5. |
1661683
|
[1] |
Housing
|
|
| 6. |
1661686
|
[1] |
Spindle
|
|
| 7. |
968725
|
[1] |
O-ring
|
|
| 8. |
1676554
|
[1] |
Nipple
|
|
| 9. |
11033093
|
[2] |
Pipe elbow
|
|
| 10. |
961236
|
[1] |
Hex. socket screw
|
|
| 11. |
3830315
|
[1] |
Hose
|
L=980mm
|
| 12. |
943471
|
[4] |
Hose clamp
|
|
| 13. |
3840916
|
[1] |
Bracket
|
|
| 14. |
984736
|
[4] |
Flange screw
|
M8x30mm
|
| 15. |
984733
|
[1] |
Flange screw
|
M8x16mm
|
| 16. |
20532237
|
[1] |
Coolant filter
|
|
| 17. |
3830315
|
[1] |
Hose
|
L=820mm
|
