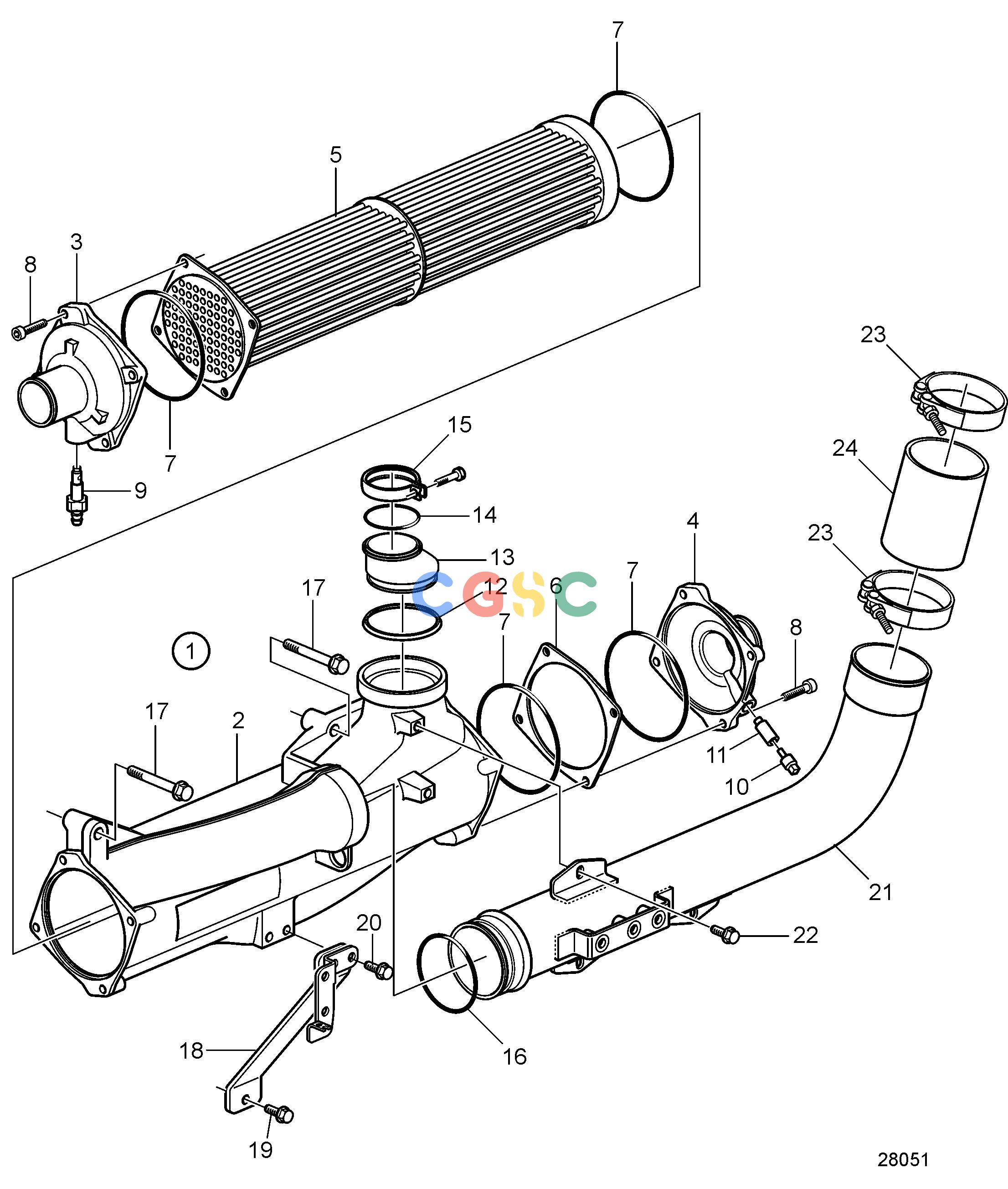

沃尔沃零件查询D9A2A; D9A2A MG; D9A2A D9A-MGCooling SystemCharge Air CoolerEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
699 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3818558
|
[1] |
Charge air cooler
|
|
| 2. |
|
|
|
|
| 3. |
3588560
|
[1] |
End plate
|
|
| 4. |
3588559
|
[1] |
End plate
|
|
| 5. |
3588566
|
[1] |
Tube
|
|
| 6. |
3838407
|
[1] |
Spacer
|
|
| 7. |
3838406
|
[4] |
O-ring
|
|
| 8. |
3838337
|
[8] |
Screw
|
|
| 9. |
3583822
|
[1] |
Draining nipple
|
|
| 10. |
838928
|
[1] |
Plug
|
|
| 11. |
838929
|
[1] |
Anode
|
|
| 12. |
3807481
|
[1] |
Sealing ring
|
|
| 13. |
3808051
|
[1] |
Flange connection
|
|
| 14. |
1542781
|
[1] |
Sealing ring
|
|
| 15. |
1542778
|
[1] |
V-clamp
|
|
| 16. |
1542783
|
[1] |
O-ring
|
|
| 17. |
994395
|
[3] |
Flange screw
|
|
| 18. |
889284
|
[1] |
Bracket
|
|
| 19. |
984752
|
[1] |
Flange screw
|
|
| 20. |
984753
|
[2] |
Flange screw
|
|
| 21. |
3847739
|
[1] |
Charge air pipe
|
(3808498)
|
| 22. |
984734
|
[2] |
Flange screw
|
|
| 23. |
994566
|
[2] |
Hose clamp
|
|
| 24. |
943952
|
[1] |
Hose
|
L=80mm
|
