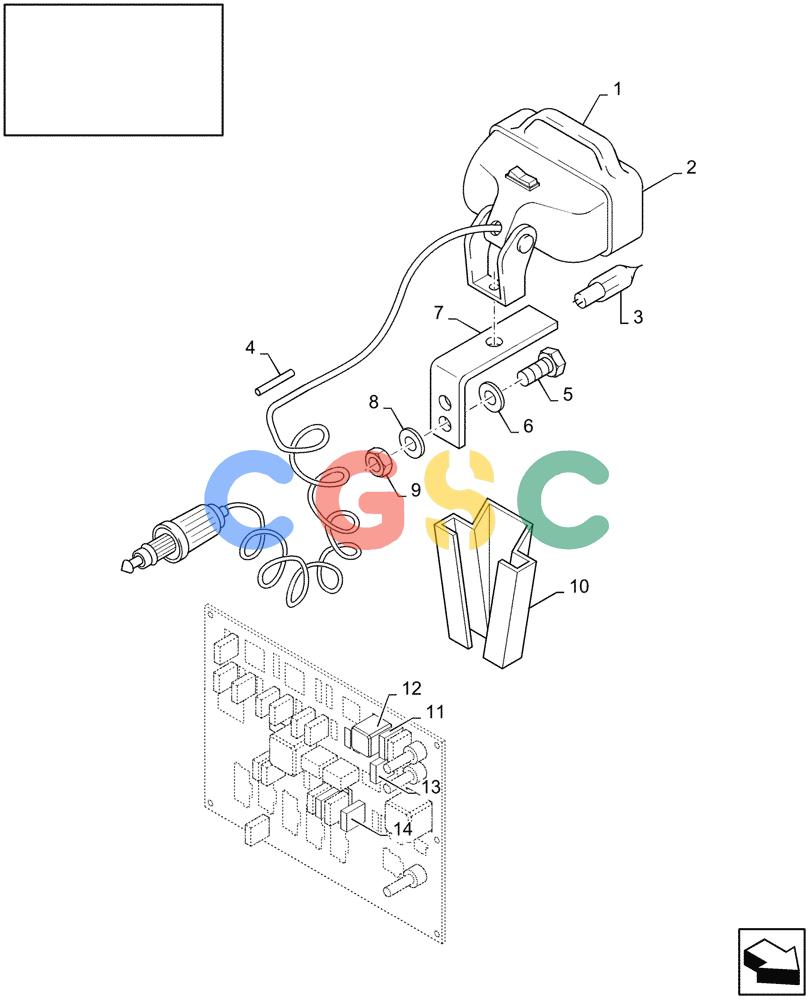

凯斯零件查询(LB333P) - BIG RECTANGULAR BALER 'PACKER CUTTER' (9/08-12/12) (18.87732914[01]) - DIA : WORKING LIGHT KIT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
187 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
87732914
|
[1] |
DIA KIT, HARVESTER
|
ATT
|
| 1. |
84790030
|
[1] |
WORK LAMP
|
ZED
Superseded by part number: 86508819, 87705140, 84790023, 430026, 264517
|
| 2. |
84790023
|
[1] |
WORK LAMP
|
ZED
|
| 3. |
417720
|
[1] |
BULB,12V, 55W
|
ZED
Superseded by part number:
|
| 4. |
401506
|
[1] |
COVER
|
ZED
L= 120 MM
|
| 5. |
120104
|
[2] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 6. |
378243
|
[2] |
WASHER,8.4mm ID x 21mm OD x 1.6mm Thk
|
NH
Superseded by part number: 63707, 63707, 86625263
|
| 7. |
9813909
|
[1] |
SUPPORT
|
ZED
|
| 8. |
322358
|
[2] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 9. |
9706690
|
[2] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 10. |
9837606
|
[1] |
CLIP
|
ZED
Superseded by part number: 847590
|
| 11. |
87349540
|
[1] |
FUSE
|
ZED
Superseded by part number: 5173264
|
| 12. |
84000651
|
[2] |
RELAY
|
ZED
Superseded by part number: 86529089
|
| 13. |
87551418
|
[1] |
FUSE
|
ZED
Superseded by part number: 9804895
|
| 14. |
87349538
|
[2] |
FUSE
|
ZED
Superseded by part number: 87717079
|
