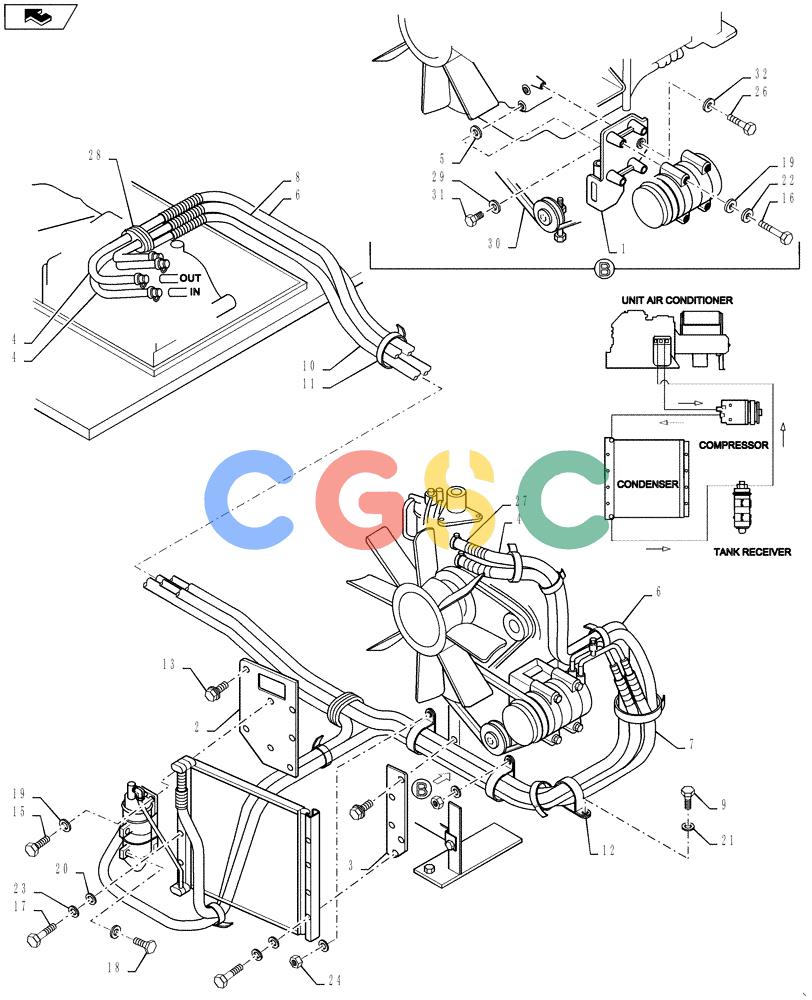

神钢零件查询(ED150-1E) - BLADE RUNNER EXCAVATOR/DOZER ASN YL05-00555 (11/03-12/04) (10-035) - AIR CONDITIONER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
691 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YX20M01022P1 | [1] | BRACKET | KOB |
| 2. | YV20M01033P1 | [1] | SUPPORT | KOB |
| 3. | YV20M01032P1 | [1] | SUPPORT | KOB |
| 4. | R18T0026D17 | [2] | HOSE | KOB |
| 5. | 2418T23147 | [2] | SPACER | KOB |
| 6. | YN20M01046DM | [2] | PROTECTIVE SLEEVE,25mm ID x 30mm OD x 4500mm Length | KOBProtective Plastic |
| 7. | YN20M01094D8 | [1] | TUBE,25mm ID x 30mm OD x 1900mm Length | KOB Superseded by part number: YN20M01094DW |
| 8. | 2418Z1333D23 | [1] | PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 1900mm Length | KOBProtective Plastic |
| 9. | ZS18C10025 | [1] | SCREW,Hex, M10 x 25mm | KOB |
| 10. | 2418Z1333D14 | [1] | PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 1600mm Length | KOBProtective Plastic |
| 11. | PY01P01043D5 | [8] | CABLE TIE,301mm L | KOB |
| 12. | 2432R325 | [3] | CLIP | KOB |
| 13. | ZM22C08020 | [4] | BOLT | KOB |
| 15. | ZS18C08016 | [2] | SCREW,Hex, M8 x 16mm | KOB |
| 16. | ZS18C08100 | [4] | SCREW,Hex, M8 x 100mm | KOB |
| 17. | ZS18C06045 | [6] | CAP,Hex, M6 x 45mm | KOB |
| 18. | ZS18C06020 | [2] | SCREW,Hex, M6 x 20mm | KOB |
| 19. | ZW16X08000 | [6] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOB |
| 20. | ZW16X06000 | [8] | WASHER | KOB Superseded by part number: 86588450 |
| 21. | ZW16X10000 | [3] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 22. | ZW26X08000 | [4] | LOCK WASHER | KOB Superseded by part number: 83990583 |
| 23. | ZW26X06000 | [6] | LOCK WASHER | KOB |
| 24. | ZN18C10008 | [2] | NUT | KOB |
| 26. | ZS18F10060 | [2] | SCREW | KOB |
| 27. | ZC16X02000 | [4] | CLIP | KOB |
| 28. | YT20M01043P1 | [1] | GROMMET | KOB |
| 29. | ZW16H10000 | [4] | WASHER | KOB |
| 30. | YX20M01025P1 | [1] | V-BELT,42.92" L | KOB Superseded by part number: 84214719 |
| 31. | ZS18F10050 | [2] | BOLT,Hex, M10 x 50mm | KOB |
