神钢零件查询(ED150-1E) - BLADE RUNNER EXCAVATOR/DOZER ASN YL05-00555 (11/03-12/04) (02-025) - STEP INSTAL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
197 次

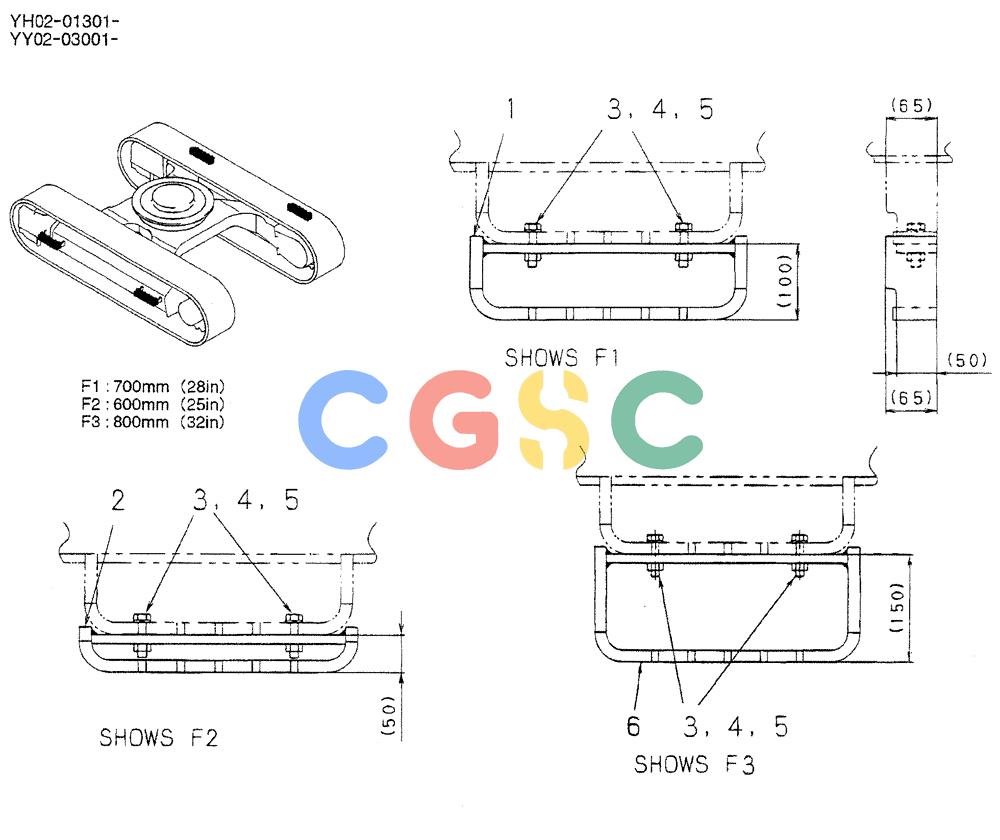

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN41C00006F1 | [1] | STEP | KOBINSTAL (700MM) |
| . . | YN41C00006F2 | [1] | STEP | KOBINSTAL (600MM) |
| . . | YN41C00006F3 | [1] | STEP | KOBINSTAL (800MM) |
| 1. | YN41C00007P1 | [4] | STEP,366mm wide | KOB(F1 ONLY) |
| 2. | YN41C00008P1 | [4] | STEP,366mm wide | KOB(F1 ONLY) |
| 3. | ZS18C12050 | [8] | SCREW,Hex, M12 x 50mm | KOBM12x1.75x50mm |
| 4. | ZW26X12000 | [8] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 5. | ZN18C12010 | [8] | NUT | KOBM12x1.75mm |
| 6. | YN41C00009P1 | [4] | STEP,366mm wide | KOB(F3 ONLY) |
