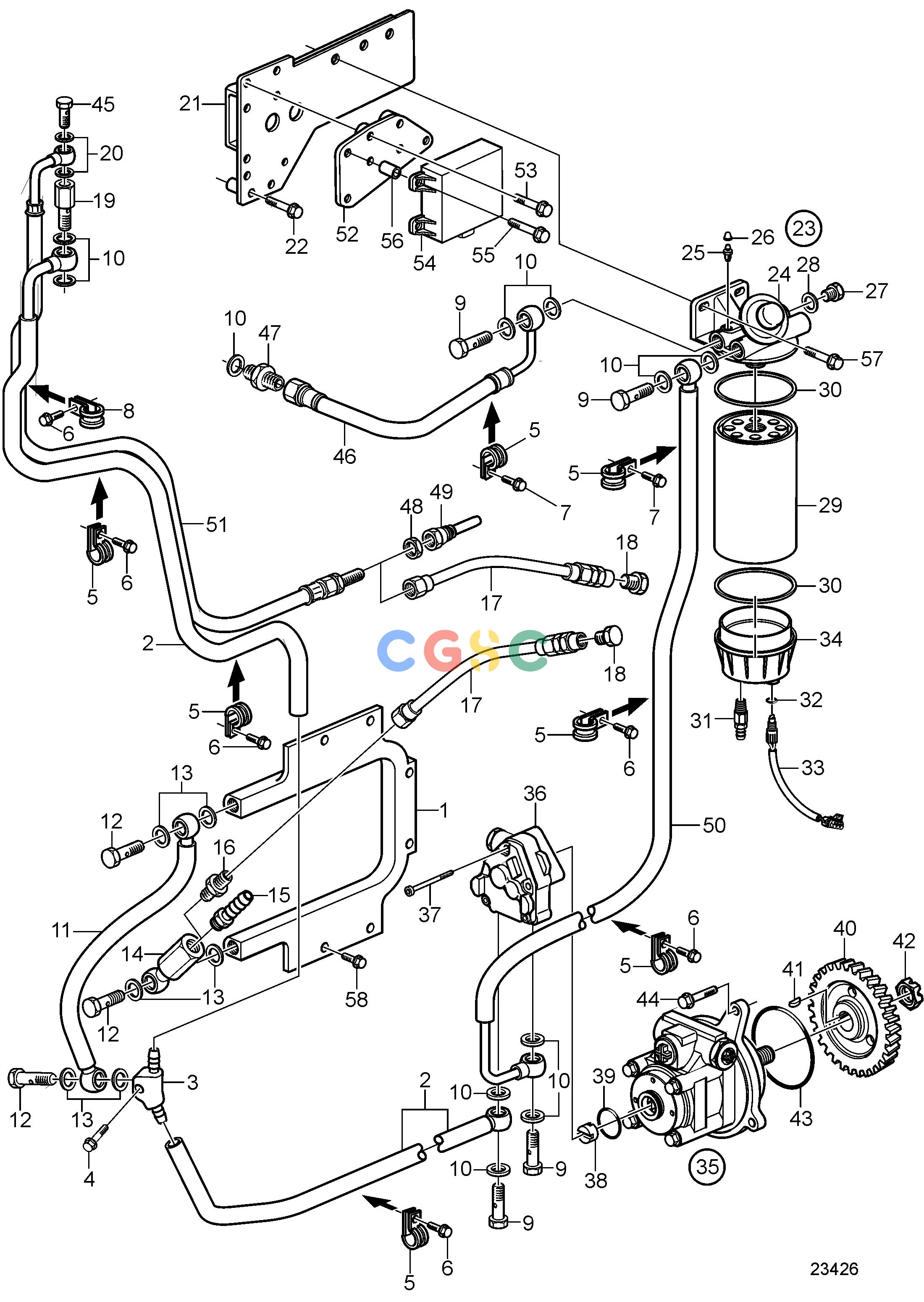

沃尔沃零件查询D9A2A; D9A2A MG; D9A2A D9A-MGFuel SystemFuel SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
810 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
20562394
|
[1] |
Radiator
|
|
| 2. |
3883149
|
[1] |
Fuel hose
|
|
| 3. |
|
|
|
|
| 4. |
984738
|
[1] |
Flange screw
|
|
| 5. |
949747
|
[8] |
Clamp
|
|
| 6. |
984733
|
[7] |
Flange screw
|
|
| 7. |
967949
|
[1] |
Flange screw
|
|
| 8. |
978869
|
[1] |
Clamp
|
|
| 9. |
941686
|
[4] |
Hollow screw
|
|
| 10. |
20852765
|
[11] |
Sealing ring
|
|
| 11. |
3883148
|
[1] |
Fuel hose
|
|
| 12. |
991048
|
[3] |
Hollow screw
|
|
| 13. |
982723
|
[6] |
Gasket
|
|
| 14. |
3828976
|
[1] |
Non-return valve
|
|
| 15. |
3825000
|
[1] |
Hose nipple
|
|
| 16. |
977677
|
[1] |
Nipple
|
|
| 17. |
3826595
|
[2] |
Fuel hose
|
|
| 18. |
943582
|
[2] |
Plug
|
|
| 19. |
20450468
|
[1] |
Overflow valve
|
|
| 20. |
982721
|
[2] |
Gasket
|
|
| 21. |
3817755
|
[1] |
Bracket
|
Rating 3-5
|
| 21. |
22610113
|
[1] |
Bracket
|
Rating 2
|
| 22. |
984756
|
[2] |
Flange screw
|
|
| 23. |
3885572
|
[1] |
Fuel filter
|
Complete, (3817516)
|
| 24. |
|
|
|
|
| 25. |
20548012
|
[1] |
Faucet
|
|
| 26. |
20547976
|
[1] |
Protecting cover
|
|
| 27. |
968609
|
[1] |
Plug
|
|
| 28. |
968559
|
[1] |
O-ring
|
|
| 29. |
3817517
|
[1] |
Fuel filter kit
|
(3839469)
|
| 30. |
|
|
|
|
| 31. |
949918
|
[1] |
Shut-off cock
|
|
| 32. |
3831094
|
[1] |
O-ring
|
|
| 33. |
3588916
|
[1] |
Alarm kit
|
|
| 34. |
21283474
|
[1] |
Bowl
|
|
| 35. |
20902690
|
[1] |
Tandem pump
|
With servo pump., 16L/min, SN-1090227176, (20453450)
|
| 35. |
21186656
|
[1] |
Tandem pump
|
With servo pump., 16L/min, SN1090227177-
|
| 35. |
20902692
|
[1] |
Tandem pump
|
With servo pump., 25L/min, (20453452), SN-1090227176
|
| 35. |
21186657
|
[1] |
Tandem pump
|
With servo pump., 25L/min, SN1090227177-
|
| 35. |
3594874
|
[1] |
Fuel pump
|
Without servo pump., (3837998)
|
| 36. |
20997341
|
[1] |
Fuel pump
|
(85103778)
|
| 37. |
85103780
|
[3] |
Hex. socket screw
|
|
| 38. |
85103779
|
[1] |
Constant velocity jo
|
|
| 39. |
85103703
|
[1] |
O-ring
|
|
| 40. |
8148198
|
[1] |
Gear
|
|
| 41. |
1505357
|
[1] |
Woodruff key
|
|
| 42. |
20367040
|
[1] |
Castle nut
|
|
| 43. |
977030
|
[1] |
O-ring
|
|
| 44. |
975199
|
[3] |
Flange screw
|
|
| 45. |
48634
|
[1] |
Hollow screw
|
|
| 46. |
3883147
|
[1] |
Fuel hose
|
|
| 47. |
963948
|
[1] |
Nipple
|
|
| 48. |
957019
|
[1] |
Hexagon nut
|
|
| 49. |
3829292
|
[1] |
Nipple
|
|
| 50. |
3883150
|
[1] |
Fuel hose
|
|
| 51. |
3889777
|
[1] |
Air vent pipe
|
|
| 52. |
3817935
|
[1] |
Bracket
|
|
| 53. |
984736
|
[4] |
Flange screw
|
|
| 54. |
7746910_076
|
|
Converter
|
|
| 55. |
984728
|
[3] |
Flange screw
|
|
| 56. |
946048
|
[3] |
Spacer washer
|
|
| 57. |
965221
|
[2] |
Flange screw
|
|
| 58. |
948746
|
[6] |
Flange screw
|
|
