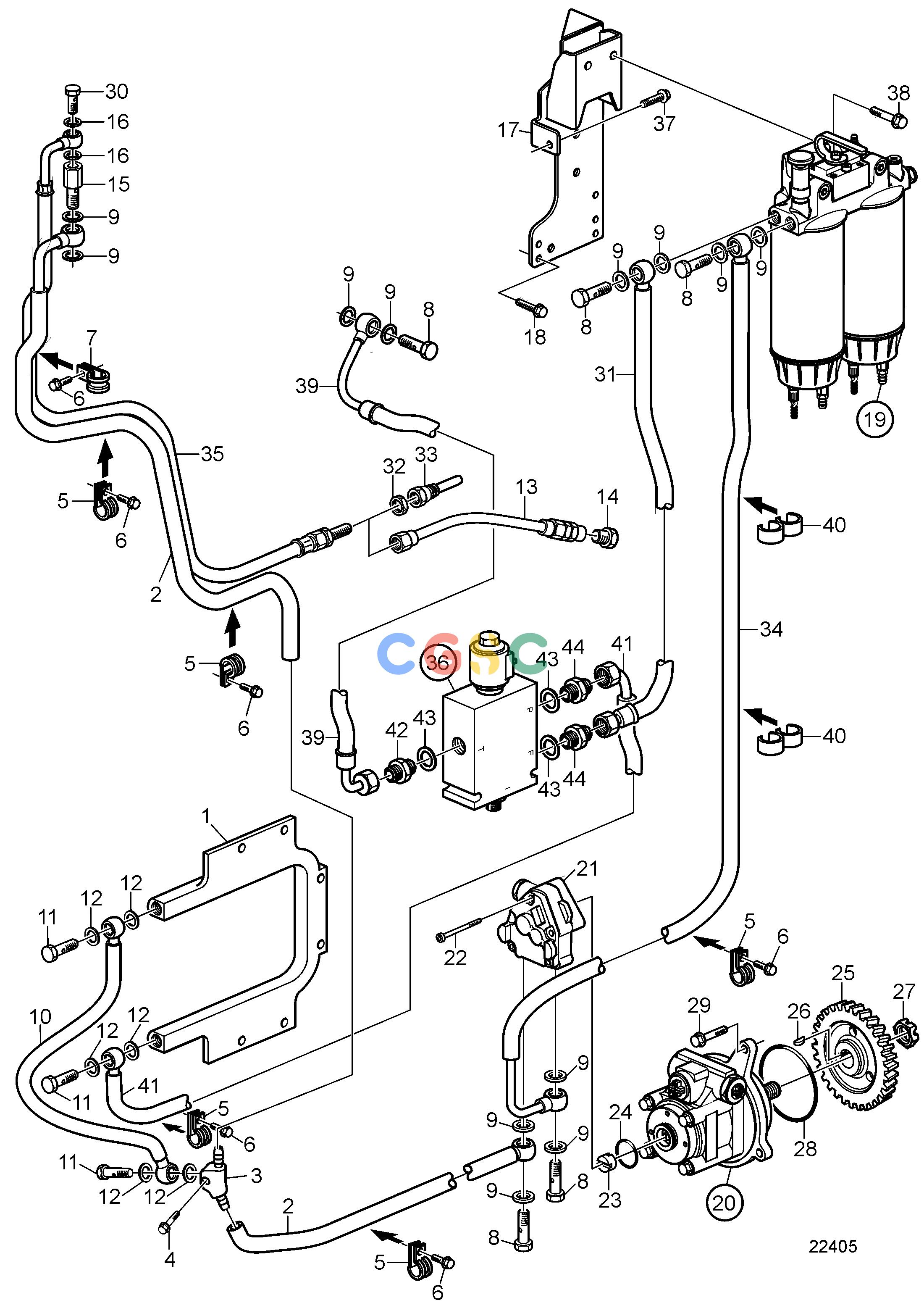

沃尔沃零件查询D9A2A; D9A2A MG; D9A2A D9A-MGFuel SystemFuel System, Classifiable SN-1009194542EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
221 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
20562394
|
[1] |
Radiator
|
|
| 2. |
3883149
|
[1] |
Fuel hose
|
|
| 3. |
|
|
|
|
| 4. |
984738
|
[1] |
Flange screw
|
|
| 5. |
949747
|
[8] |
Clamp
|
|
| 6. |
984733
|
[7] |
Flange screw
|
|
| 7. |
978869
|
[1] |
Clamp
|
|
| 8. |
941686
|
[5] |
Hollow screw
|
|
| 9. |
982724
|
[12] |
Gasket
|
|
| 10. |
3883148
|
[1] |
Fuel hose
|
|
| 11. |
991048
|
[3] |
Hollow screw
|
|
| 12. |
982723
|
[6] |
Gasket
|
|
| 13. |
3826595
|
[1] |
Fuel hose
|
|
| 14. |
943582
|
[2] |
Plug
|
|
| 15. |
20450468
|
[1] |
Overflow valve
|
|
| 16. |
982721
|
[2] |
Gasket
|
|
| 17. |
3840366
|
[1] |
Bracket
|
|
| 18. |
984756
|
[2] |
Flange screw
|
|
| 19. |
3889532
|
[1] |
Fuel filter housing, assembly
|
|
| 19. |
|
|
|
|
| 20. |
20902690
|
[1] |
Tandem pump
|
With servo pump.
|
| 20. |
21186656
|
[1] |
Tandem pump
|
Med servopump., 16 liter/min, SN1090227177-
|
| 21. |
20902692
|
[1] |
Tandem pump
|
Med servopump., 25 liter/min, (20453452), SN- 1090227176
|
| 21. |
21186657
|
[1] |
Tandem pump
|
Med servopump., 25 liter/min, SN1090227177-
|
| 21. |
3594874
|
[1] |
Fuel pump
|
Utan servopump., (3837998)
|
| 21. |
20997341
|
[1] |
Fuel pump
|
(85103778)
|
| 22. |
85103780
|
[3] |
Hex. socket screw
|
|
| 23. |
85103779
|
[1] |
Constant velocity jo
|
|
| 24. |
85103703
|
[1] |
O-ring
|
|
| 25. |
8148198
|
[1] |
Gear
|
|
| 26. |
1505357
|
[1] |
Woodruff key
|
|
| 27. |
20367040
|
[1] |
Castle nut
|
|
| 28. |
977030
|
[1] |
O-ring
|
|
| 29. |
975199
|
[3] |
Flange screw
|
|
| 30. |
48634
|
[1] |
Hollow screw
|
|
| 31. |
3883155
|
[1] |
Fuel hose
|
|
| 32. |
957018
|
[1] |
Hexagon nut
|
|
| 33. |
3829292
|
[1] |
Nipple
|
|
| 34. |
3883152
|
[1] |
Fuel hose
|
|
| 35. |
3889777
|
[1] |
Air vent pipe
|
|
| 36. |
|
|
|
|
| 37. |
984740
|
[1] |
Flange screw
|
|
| 38. |
994208
|
[2] |
Flange screw
|
|
| 39. |
3883154
|
[1] |
Fuel hose
|
|
| 40. |
9205207
|
[2] |
Retainer
|
|
| 41. |
3883153
|
[1] |
Fuel hose
|
|
| 42. |
983388
|
[1] |
Nipple
|
|
| 43. |
947629
|
[3] |
Gasket
|
|
| 44. |
7746910_024
|
|
Nipple
|
|
