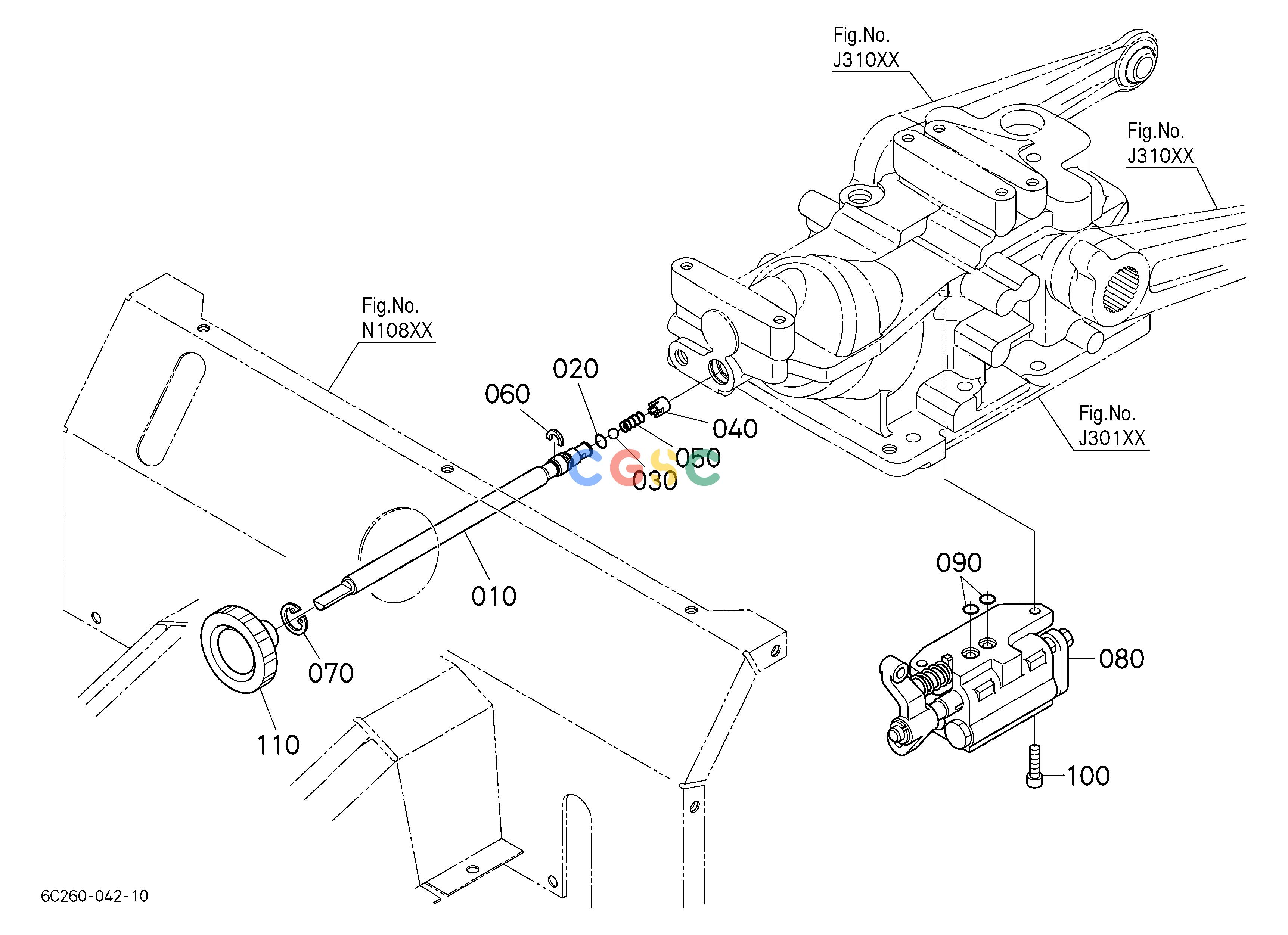

久保田零件查询J40502 CONTROL VALVE PUMP/MOTOR SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
702 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6A60036280
|
[1] |
SHAFT,HYD.ADJUST
|
0.5060(lbs); 0.230
|
| 020. |
0481700100
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 030. |
0771503209
|
[1] |
BALL
|
0.0044(lbs); 0.002
|
| 040. |
6A60036270
|
[1] |
COLLAR
|
0.0044(lbs); 0.002
|
| 050. |
6A60093650
|
[1] |
SPRING
|
0.0022(lbs); 0.001
|
| 060. |
6A32037410
|
[1] |
STOPPER
|
0.0044(lbs); 0.002
|
| 070. |
0461100190
|
[1] |
CIR-CLIP,INTERNAL
|
0.0022(lbs); 0.001
|
| 080. |
YR90600107
|
[1] |
ASSY VALVE,CONTROL
|
3.3660(lbs); 1.530
|
| 090. |
0481700100
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 100. |
0131110820
|
[2] |
BOLT,SOCKET HEAD
|
0.0264(lbs); 0.012
|
| 110. |
3741036643
|
[1] |
GRIP
|
0.0660(lbs); 0.030
|
