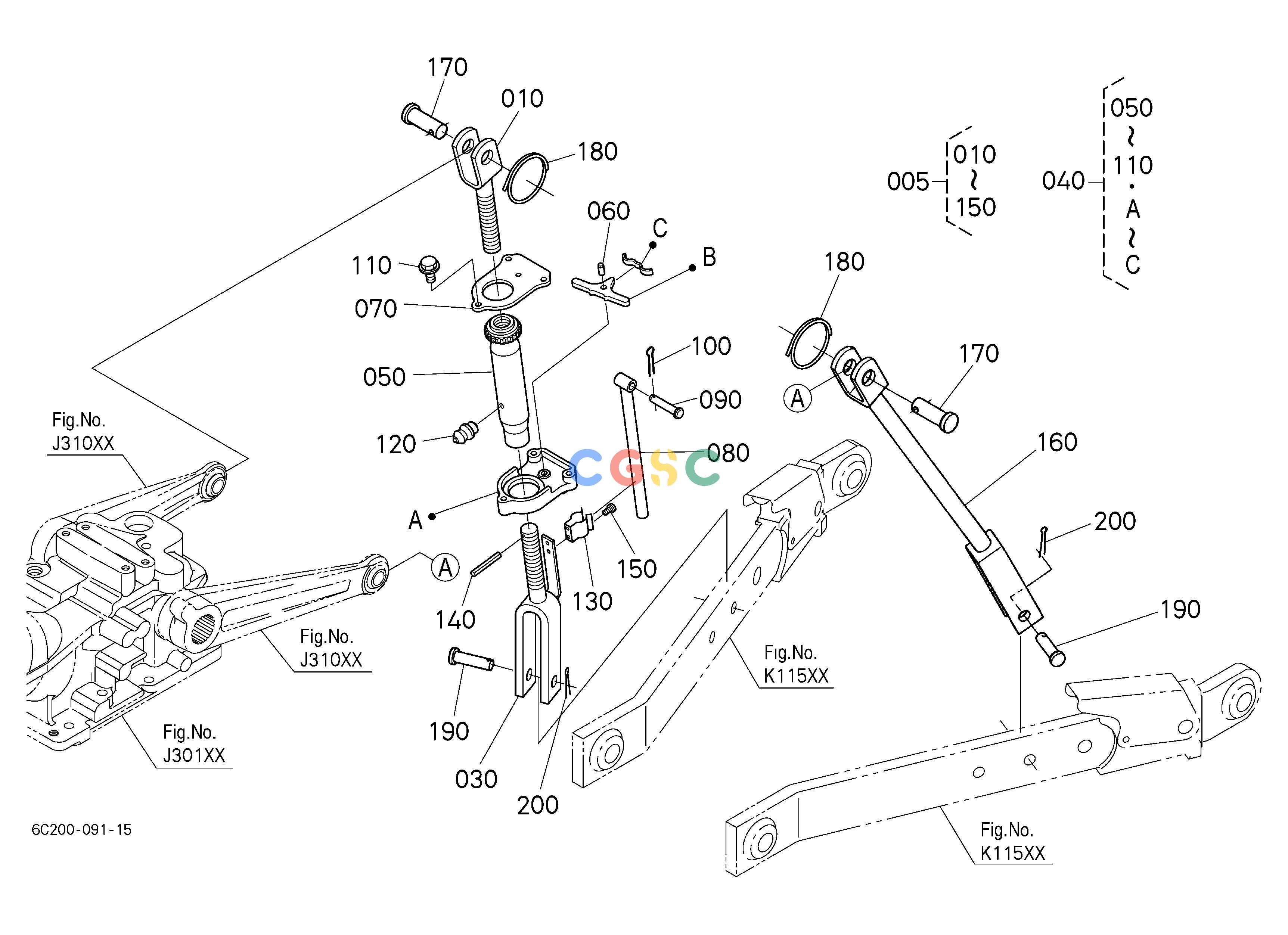

久保田零件查询K10102 3-POINT LINKAGE 2 (LIFT ROD) PUMP/MOTOR SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
212 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 005. |
6C17065205
|
[1] |
ASSY ROD,LIFT RH
|
4.6420(lbs); 2.110
|
| 010. |
6C17065230
|
[1] |
ROD,LIFT RH
|
0.7920(lbs); 0.360
|
| 030. |
6C17065240
|
[1] |
ROD,LIFT LOWER RH
|
1.5840(lbs); 0.720
|
| 040. |
6C17065304
|
[1] |
ASSY ROD,LIFT
|
2.2000(lbs); 1.000
|
| 050. |
6C17065380
|
[1] |
COMP.TURNBUCKLE
|
1.1000(lbs); 0.500
|
| 060. |
6C17065350
|
[1] |
PIN,FULCRUM
|
0.0066(lbs); 0.003
|
| 070. |
6C17065322
|
[1] |
COVER,LIFT ROD
|
0.2640(lbs); 0.120
|
| 080. |
6C17065360
|
[1] |
LEVER,LIFT ROD
|
0.4290(lbs); 0.195
|
| 090. |
0512250840
|
[1] |
PIN,JOINT
|
0.0374(lbs); 0.017
|
| 100. |
0551150215
|
[1] |
PIN,SPLIT
|
0.0022(lbs); 0.001
|
| 110. |
0102350614
|
[3] |
BOLT,SEMS
|
0.0110(lbs); 0.005
|
| 120. |
6721142940
|
[1] |
NIPPLE,GREASE
|
0.0022(lbs); 0.001
|
| 130. |
3G70083542
|
[1] |
SRING,HOLDER
|
0.0220(lbs); 0.010
|
| 140. |
0541100320
|
[1] |
PIN,SPRING
|
0.0022(lbs); 0.001
|
| 150. |
0302450408
|
[2] |
SCREW,SEMS(PAN HEAD)
|
0.0044(lbs); 0.002
|
| 160. |
6C07065270
|
[1] |
ROD,LIFT LH
|
2.9260(lbs); 1.330
|
| 170. |
0512251645
|
[2] |
PIN,JOINT
|
0.1650(lbs); 0.075
|
| 180. |
6E04076740
|
[2] |
RING,SNAP
|
0.0154(lbs); 0.007
|
| 190. |
6C35065280
|
[2] |
PIN,JOINT
|
0.1056(lbs); 0.048
|
| 200. |
0551150430
|
[2] |
PIN,SPLIT
|
0.0088(lbs); 0.004
|
