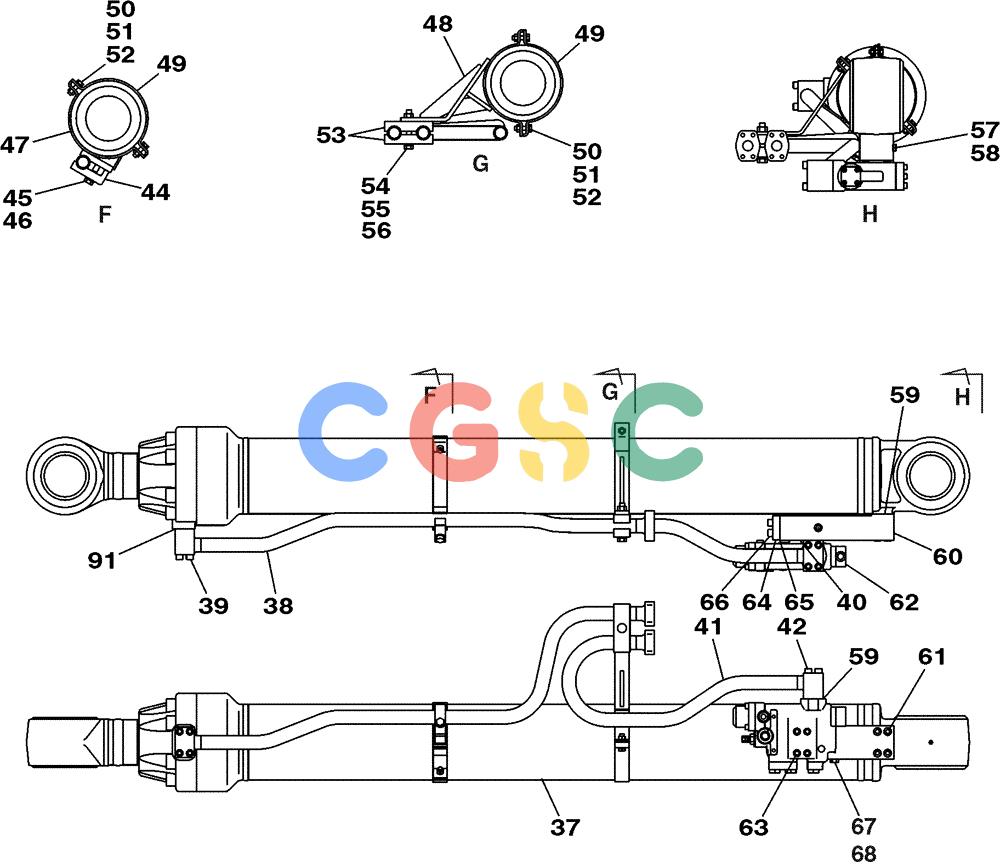

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (08-139-02[01]) - HYDRAULICS BOOM - LEFT HAND - WITH LOAD HOLD New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
700 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 37. | KUV0186 | [1] | HYDRAULIC CYLINDER | SUM |
| 38. | KUV0255 | [1] | HYD. TUBE,34.7 mm ID x 42.7 mm OD | SUM |
| 39. | 162030A1 | [4] | BOLT,Hex Skt Hd | SUM |
| 40. | 154589A1 | [1] | O-RING | SUM |
| 41. | KUV0254 | [1] | HYD. TUBE,34.7 mm ID x 42.7 mm OD | SUM |
| 44. | 162035A1 | [1] | CLAMP | SUM |
| 45. | 828-16070 | [1] | BOLT,Hex, M16 x 2 x 70mm, Cl 10.9 | CAS Superseded by part number: 87015545 |
| 46. | 892-11016 | [1] | LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk | CAS Superseded by part number: 87016618 |
| 47. | KUV0260 | [1] | CLAMP | SUM |
| 48. | KUV0259 | [1] | CLAMP | SUM |
| 49. | KUV0261 | [2] | CLAMP | SUM |
| 50. | 627-12045 | [4] | BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd | CAS Superseded by part number: 86639031 |
| 51. | 829-1412 | [4] | NUT,M12, Cl 10 | CAS Superseded by part number: 337475 |
| 52. | 892-11012 | [4] | LOCK WASHER,M12 | CAS Superseded by part number: 412123 |
| 53. | KUV0264 | [2] | CLAMP | SUM |
| 54. | 827-16110 | [1] | BOLT,Hex, M16 x 2 x 110mm, Cl 10.9 | CAS Superseded by part number: 84036080 |
| 55. | 829-1416 | [1] | NUT,M16, Cl 10 | CAS Superseded by part number: 392530 |
| 57. | 159002A1 | [1] | PLUG | SUM |
| 58. | 154467A1 | [1] | O-RING,10.8mm ID x 2.4mm Width | SUM |
| 59. | 164450A1 | [2] | O-RING | SUM |
| 60. | KUV0258 | [1] | JUNCTION BOX | SUM |
| 61. | 862-14090 | [4] | HEX SOC SCREW,M14 x 90mm, Cl 12.9 | CAS Superseded by part number: 108R014Y090R |
| 62. | KUV0266 | [1] | VALVE | SUM |
| 64. | KUP0009 | [1] | FLANGE | SUM |
| 66. | 862-14045 | [4] | HEX SOC SCREW,M14 x 45mm, Cl 12.9 | CASM14 x 45; 12.9 |
| 67. | 153105A1 | [1] | PLUG | SUM |
| 68. | 154475A1 | [1] | O-RING | SUM |
