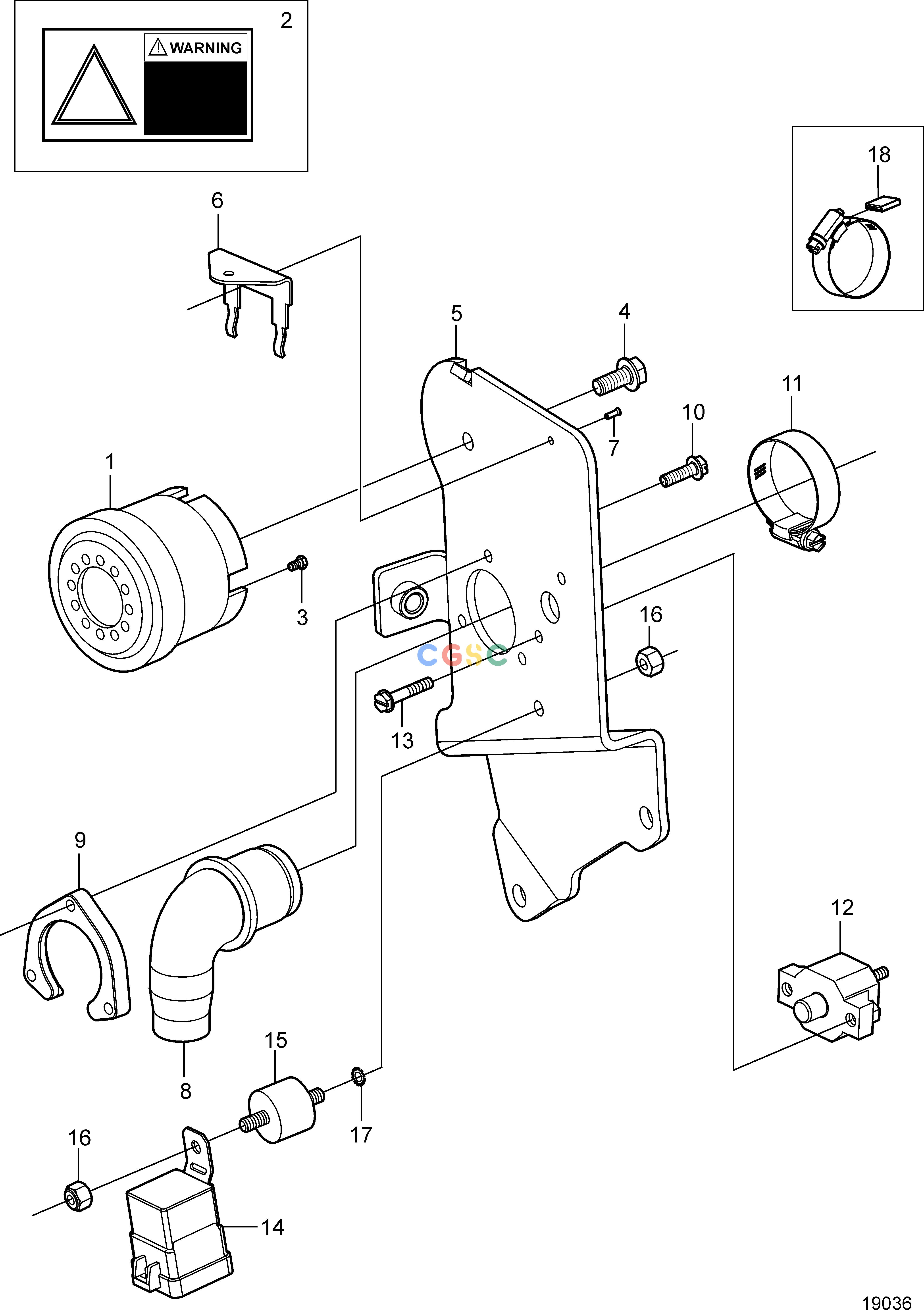

沃尔沃零件查询3.0GLP-A; 3.0GLP-B; 3.0GLM-A; 3.0GLM-B; 3.0GSP-A; 3.0GSP-B; 3.0GSP-C; 3.0GSM-A; 3.0GSM-B; 3.0GSM-CElectrical SystemAlarm and Circuit BreakerEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
493 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3860264
|
[1] |
Horn
|
|
| 2. |
3861504
|
[1] |
Decal
|
Warning!
|
| 3. |
3860531
|
[2] |
Hexagon screw
|
|
| 4. |
967949
|
[1] |
Flange screw
|
|
| 5. |
3860453
|
[1] |
Bracket
|
|
| 6. |
3860486
|
[1] |
Bracket
|
|
| 7. |
|
|
|
|
| 8. |
3860028
|
[1] |
Cable harness
|
|
| 9. |
3852825
|
[1] |
Retainer
|
|
| 10. |
3852208
|
[3] |
Screw
|
|
| 11. |
3853786
|
[1] |
Hose clamp
|
|
| 12. |
3854164
|
[1] |
Automatic fuse, trim
|
50A
|
| 13. |
3853620
|
[2] |
Hexagon screw
|
|
| 14. |
3854138
|
[1] |
Relay
|
|
| 15. |
3850234
|
[1] |
Rubber cushion
|
|
| 16. |
3852118
|
[2] |
Nut
|
|
| 17. |
3852182
|
[1] |
Washer
|
|
| 18. |
3858532
|
[1] |
Cover
|
W=0.465'' (11,8mm)
|
