沃尔沃零件查询3.0GLP-A; 3.0GLP-B; 3.0GLM-A; 3.0GLM-B; 3.0GSP-A; 3.0GSP-B; 3.0GSP-C; 3.0GSM-A; 3.0GSM-B; 3.0GSM-CElectrical SystemElectrical SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
602 次

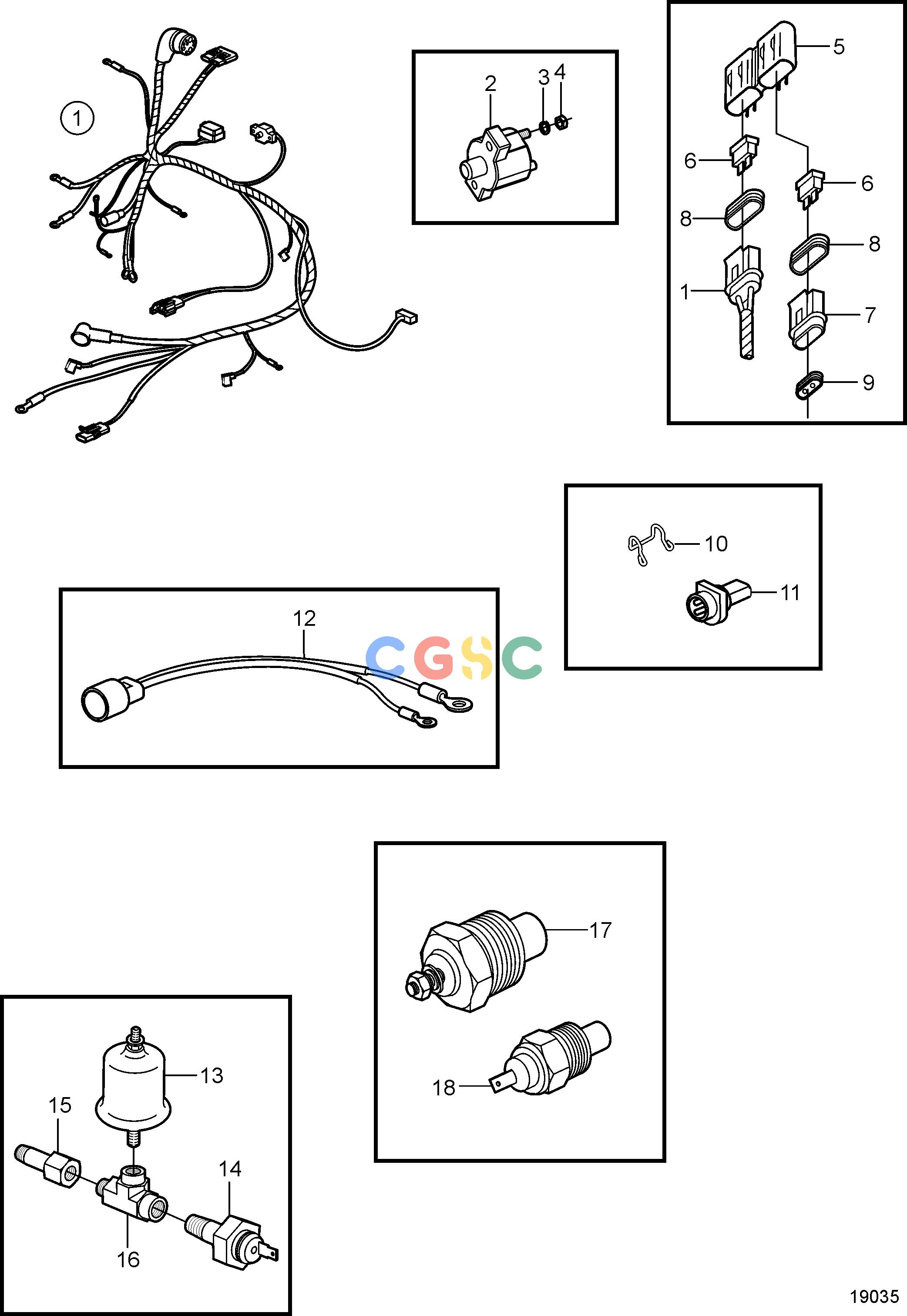

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3860028
|
[1] |
Cable harness
|
|
| 1. |
3862616
|
[1] |
Cable harness
|
|
| 2. |
3854164
|
[1] |
Automatic fuse
|
|
| 3. |
3852001
|
[2] |
Spring washer
|
|
| 4. |
3852064
|
[2] |
Nut
|
|
| 5. |
3860455
|
[1] |
Fuse holder
|
|
| 6. |
979686
|
[2] |
Fuse
|
40A
|
| 7. |
8166029
|
[2] |
Insulator
|
|
| 8. |
|
|
|
|
| 9. |
|
|
|
|
| 10. |
3852237
|
[1] |
Retainer
|
|
| 11. |
3855178
|
[1] |
Connector
|
|
| 12. |
3854031
|
[1] |
Cable harness, trim
|
|
| 13. |
3857532
|
[1] |
Oil pressure sensor, oil pressure
|
|
| 13. |
872064
|
[1] |
Pressure sensor, oil pressure
|
Dual station
|
| 14. |
3852215
|
[1] |
Sensor, oil pressure
|
|
| 15. |
3853400
|
[1] |
Fitting
|
|
| 16. |
3852610
|
[1] |
T-nipple
|
|
| 17. |
3852029
|
[1] |
Sensor, coolant temp.
|
|
| 17. |
872068
|
[1] |
Temperature sensor, coolant temp.
|
Dual station
|
| 18. |
872066
|
[1] |
Thermo monitor, coolant temp.
|
|
