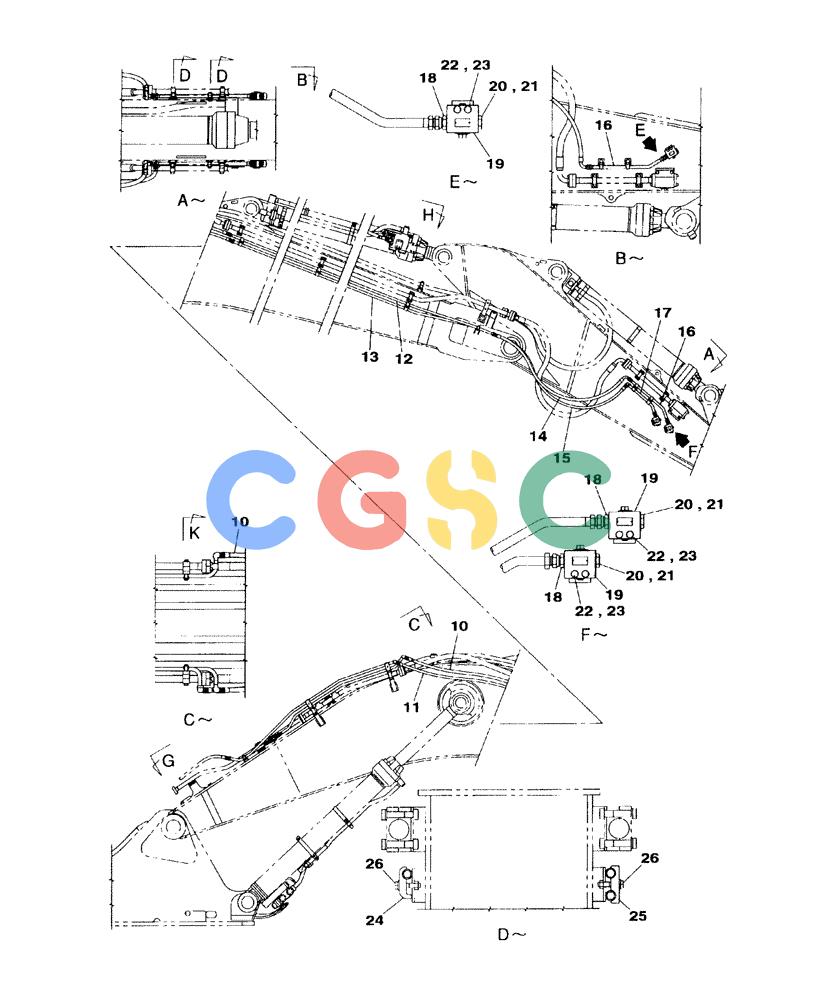

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 10. | KMJ1976 | [2] | HOSE ASSY.,19.00 mm ID x 1510.00 mm | SUM |
| 11. | 163520A1 | [1] | HYDRAULIC HOSE,19.00 mm ID x 1650.00 mm | SUM |
| 12. | KUV0343 | [2] | HYD. TUBE,20.8 mm ID x 27.2 mm OD | SUM |
| 13. | KUV0344 | [1] | HYD. TUBE,21.6 mm ID x 27.2 mm OD | SUM |
| 14. | KSV1632 | [2] | HYDRAULIC HOSE,19.05 mm ID x 2050.00 mm | SUM |
| 15. | KSV1633 | [1] | HYDRAULIC HOSE,19.05 mm ID x 2050.00 mm | SUM |
| 16. | KUV0345 | [2] | HYD. TUBE,20.8 mm ID x 27.2 mm OD | SUM |
| 17. | KUV0346 | [1] | HYD. TUBE,21.6 mm ID x 27.2 mm OD | SUM |
| 18. | 167248A1 | [2] | FITTING | SUM |
| 19. | KHV0453 | [3] | VALVE | SUM Superseded by part number: KHV10680 |
| 20. | 152924A1 | [3] | PLUG | SUM |
| 21. | 154503A1 | [1] | O-RING | SUM |
| 22. | 827-12070 | [6] | BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9 | CAS Superseded by part number: 86505259 |
| 23. | 150811A1 | [6] | WASHER | SUM Superseded by part number: 86625255 |
| 24. | 151486A1 | [9] | CLAMP BRACKET | SUM |
| 25. | 152085A1 | [9] | COLLAR | SUM |
| 26. | 167183A1 | [18] | BOLT,Sems, M12 x 60mm, Cl 10.9 | SUM |
