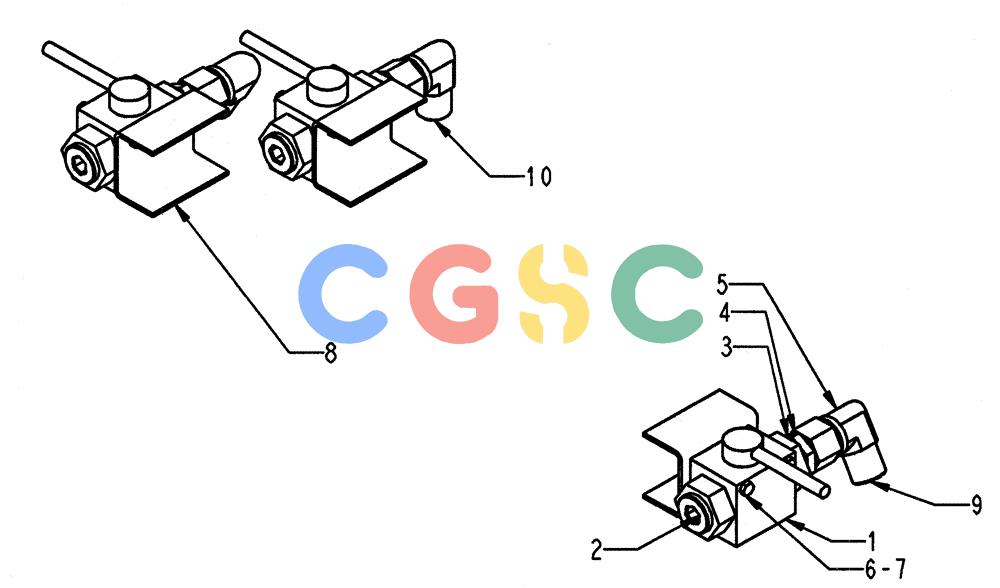

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (08-142-00[01]) - LOW FLOW CIRCUIT - DIPPER 2M98 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
117 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87416721 | [3] | VANEUM GAUGE | CAS |
| 2. | 87416722 | [3] | PLUG | CAS |
| 3. | 428733A1 | [3] | SEAL | CAS |
| 4. | 428760A1 | [3] | ADAPTER | CAS |
| 5. | 428957A1 | [3] | ELBOW | CAS |
| 6. | 827-6060 | [6] | BOLT,Hex, M6 x 60mm, Cl 10.9 | CAS Superseded by part number: 86639189 |
| 7. | 87416723 | [6] | HOLDER | CAS |
| 8. | 87416729 | [3] | PIPE ASSY. | CAS |
| 9. | 87416726 | [2] | HOSE | CAS |
| 10. | 87416727 | [1] | HOSE | CAS |
