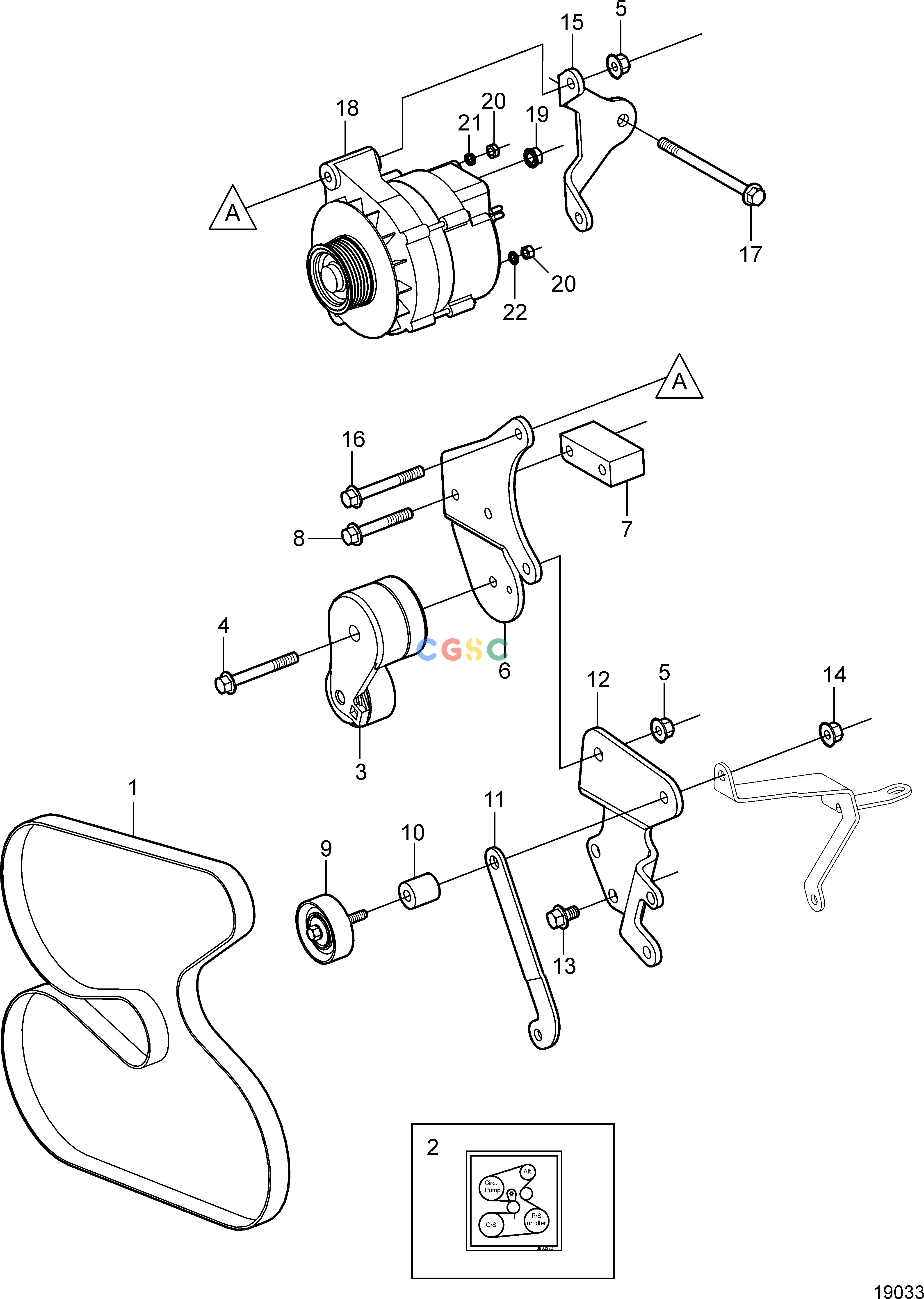

沃尔沃零件查询3.0GLP-A; 3.0GLP-B; 3.0GLM-A; 3.0GLM-B; 3.0GSP-A; 3.0GSP-B; 3.0GSP-C; 3.0GSM-A; 3.0GSM-B; 3.0GSM-CElectrical SystemSerpentine Belt and AlternatorEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
790 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3860092
|
[1] |
Belt
|
|
| 2. |
3860382
|
[1] |
Decal
|
|
| 3. |
3860091
|
[1] |
Belt tensioner
|
|
| 4. |
3853367
|
[1] |
Flange screw
|
|
| 5. |
3857181
|
[3] |
Flange lock nut
|
|
| 6. |
3860096
|
[1] |
Bracket
|
|
| 7. |
3860160
|
[1] |
Spacer
|
|
| 8. |
3860499
|
[2] |
Screw
|
|
| 9. |
3860212
|
[1] |
Pulley
|
|
| 10. |
3860481
|
[1] |
Spacer
|
|
| 11. |
3860480
|
[1] |
Brace
|
|
| 12. |
3860094
|
[1] |
Bracket
|
|
| 13. |
3853558
|
[2] |
Screw
|
|
| 14. |
971098
|
[1] |
Flange lock nut
|
|
| 15. |
3860097
|
[1] |
Bracket
|
|
| 16. |
3860169
|
[2] |
Flange screw
|
|
| 17. |
3853430
|
[1] |
Screw
|
|
| 18. |
3860082
|
[1] |
Alternator
|
|
| 19. |
3853714
|
[1] |
Nut
|
|
| 20. |
3852185
|
[4] |
Nut
|
|
| 21. |
3852001
|
[3] |
Spring washer
|
|
| 22. |
3852520
|
[1] |
Washer, external tooth
|
|
