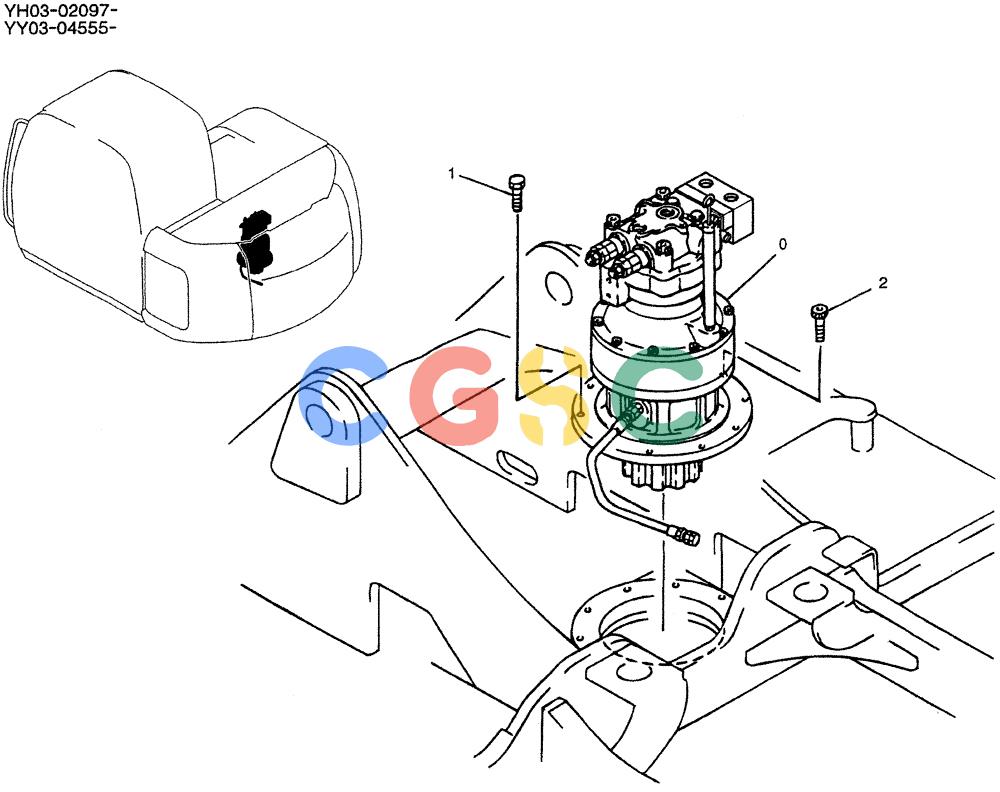

神钢零件查询(ED150-1E) - BLADE RUNNER EXCAVATOR/DOZER ASN YL05-00555 (11/03-12/04) (01-017) - MOTOR INSTAL, SWING Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
619 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| .. | YX32W00001F1 | [1] | MOTOR | KOBMOTOR INSTALLING |
| 0. | YY15V00004F1 | [1] | MOTOR | KOBASSY, SWING, Serial Range: YH03-02097-YH03-02114 Superseded by part number: YY15V00005F2, YX32W00002F2 |
| 0. | YY15V00004F2 | [1] | MOTOR | KOBASSY,SWING, Start Serial: YH03-02115- Superseded by part number: YX32W00002F2, YY15V00005F2 |
| 1. | ZS13C20055 | [9] | SCREW | KOBScrew -- M20x2.50x55mm |
| 2. | ZS23C20055 | [1] | SCREW,Hex Socket Head, M20 x 55mm | KOBM20x2.5x55mm |
