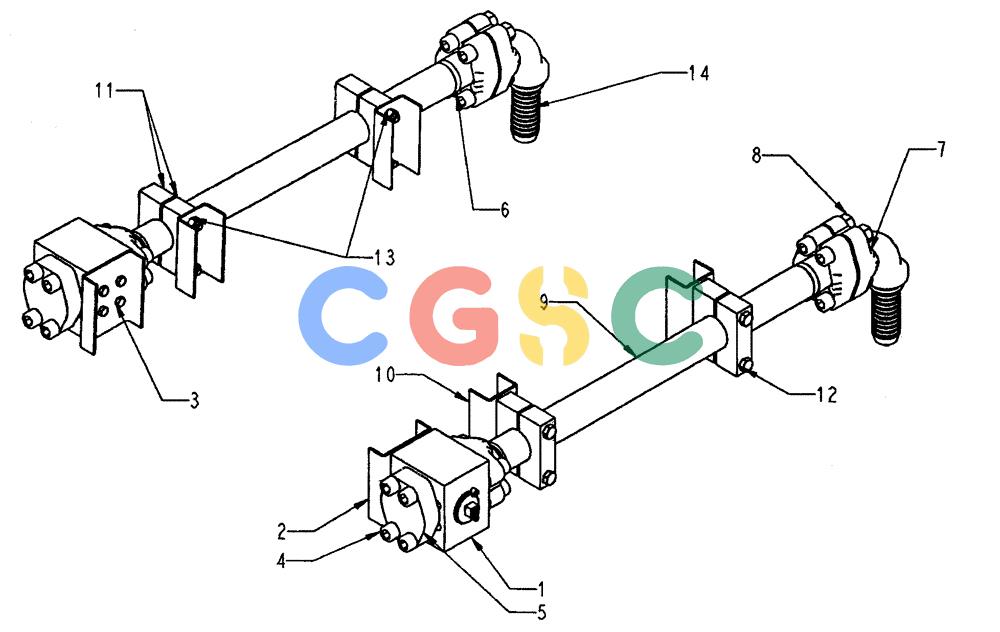

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (08-150-00[01]) - OPTION HYDRAULIC CIRCUIT - DIPPER 3M66 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
179 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87416732 | [2] | VALVE | CAS |
| 2. | 86987662 | [2] | HOLDER | CAS |
| 3. | 87416733 | [8] | SCREW,M8 x 16mm | CAS |
| 4. | 862-16050 | [16] | HEX SOC SCREW,M16 x 50mm, Cl 12.9 | CAS Superseded by part number: 9817243 |
| 5. | 87416734 | [2] | BLANK-OFF PLUG | CAS |
| 6. | 862-16080 | [16] | HEX SOC SCREW,M16 x 80mm, Cl 12.9 | CAS |
| 7. | 87416736 | [12] | HALF-FLANGE | CAS |
| 8. | 829-1416 | [16] | NUT,M16, Cl 10 | CAS Superseded by part number: 392530 |
| 9. | 87416737 | [2] | HYD. TUBE | CAS |
| 10. | 86987663 | [4] | HOLDER | CAS |
| 11. | 87417596 | [8] | CLAMP BRACKET | CAS |
| 12. | 827-12110 | [8] | BOLT,Hex, M12 x 1.75 x 110mm, Cl 10.9 | CAS Superseded by part number: 9501756 |
| 13. | 829-1412 | [8] | NUT,M12, Cl 10 | CAS Superseded by part number: 337475 |
| 14. | 87417088 | [2] | HOSE | CAS |
