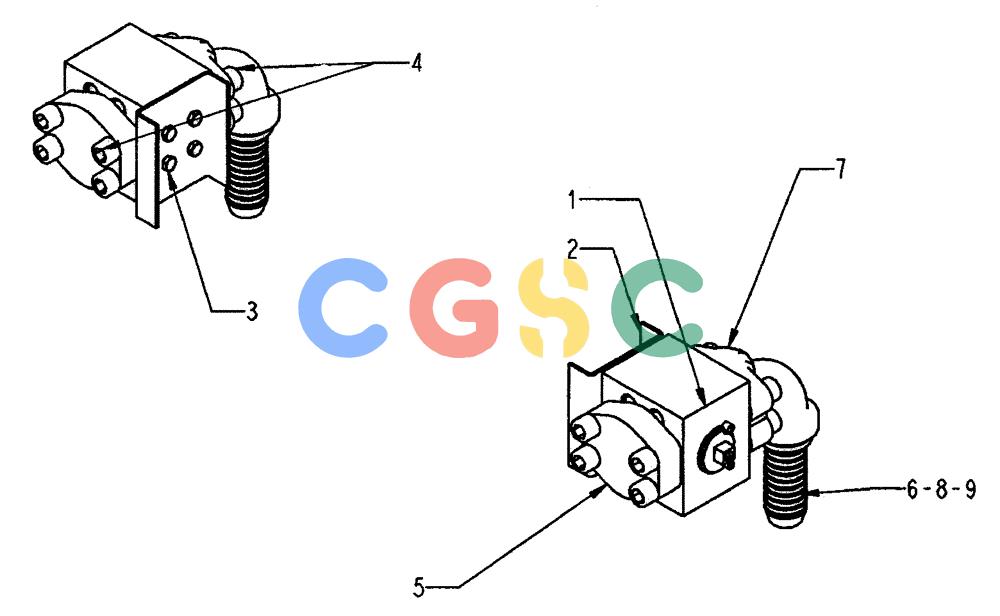

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (08-149-00[01]) - OPTION HYDRAULIC CIRCUIT - DIPPER 2M98 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
889 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87416732 | [2] | VALVE | CAS |
| 2. | 86987662 | [2] | HOLDER | CAS |
| 3. | 87416733 | [8] | SCREW,M8 x 16mm | CAS |
| 4. | 862-16050 | [16] | HEX SOC SCREW,M16 x 50mm, Cl 12.9 | CAS Superseded by part number: 9817243 |
| 5. | 827-6060 | [2] | BOLT,Hex, M6 x 60mm, Cl 10.9 | CAS Superseded by part number: 86639189 |
| 6. | 87416734 | [2] | BLANK-OFF PLUG | CAS |
| 7. | 87417088 | [8] | HOSE | CAS |
| 8. | 862-16080 | [8] | HEX SOC SCREW,M16 x 80mm, Cl 12.9 | CAS |
| 9. | 829-1416 | [8] | NUT,M16, Cl 10 | CAS Superseded by part number: 392530 |
