神钢零件查询(ED150-1E) - BLADE RUNNER EXCAVATOR/DOZER ASN YL05-00555 (11/03-12/04) (01-032) - MIRROR INSTAL ASSY, P/N YT52C00008F3, F4 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
857 次

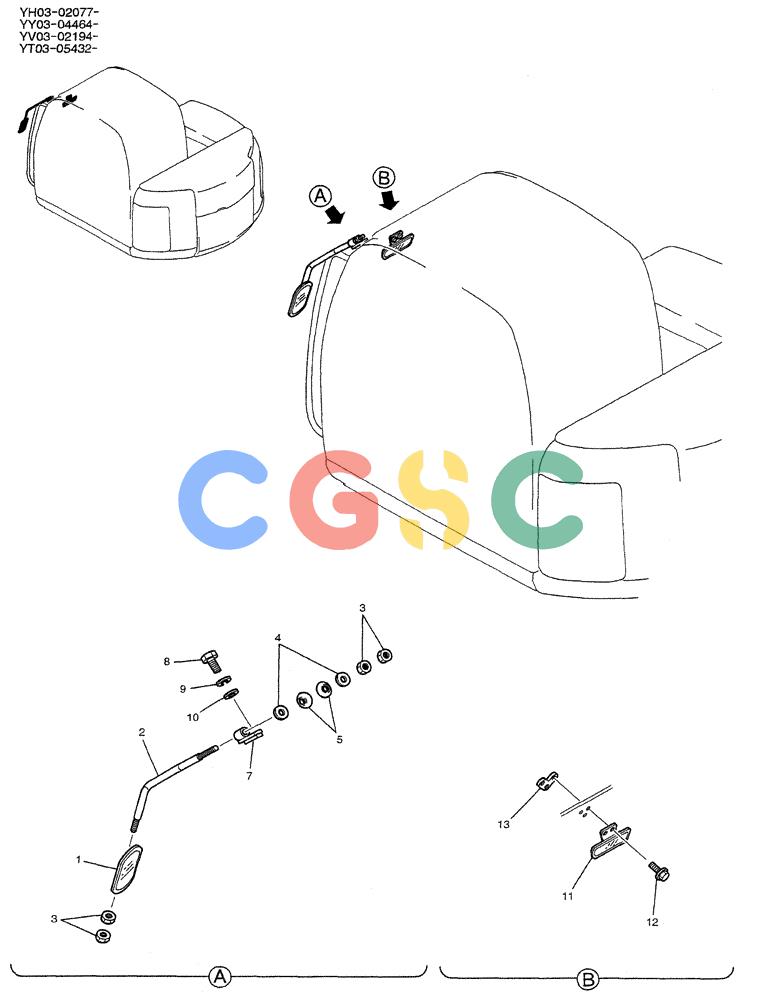

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT52C00008F3 | [1] | MIRROR | KOBINSTAL (STD/WITH ROOF & TRIPLE GUARD/LIGHT) |
| . . | YT52C00008F4 | [1] | MIRROR | KOBINSTAL (WITH FRONT UPP GUARD) |
| 1. | 2456Z253 | [1] | MIRROR | KOBBACK |
| 2. | YY02C01004P1 | [1] | STAY | KOBSTAY |
| 3. | ZN18C12010 | [4] | NUT | KOBM12x1.75mm |
| 4. | ZW16X12000 | [2] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 5. | R16T0137D1 | [2] | WASHER | KOBCone Disk Spring -- ID 12.2 x OD 25 x Th 0.9mm |
| 7. | YY02C01001P1 | [1] | PLATE | KOBASSY(F3 ONLY) |
| 8. | ZS18C10045 | [2] | SCREW,Hex, M10 x 45mm | KOBM10x1.50x45mm, (F3 Only) |
| 9. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm, (F3 Only) |
| 10. | ZW16H10000 | [2] | WASHER | KOBID 11 x OD 24 x Th 3.2mm, (F3 Only) |
| 11. | YN02C01121P1 | [1] | MIRROR | KOB |
| 12. | ZM46C05016 | [3] | BOLT,Phillip, M5 x 0.8 x 15mm | KOBM05x0.8x16mm (Incls. Washer & Lockwasher) |
| 13. | YT50C01077P1 | [1] | BLOCK | KOBTAPPED |
