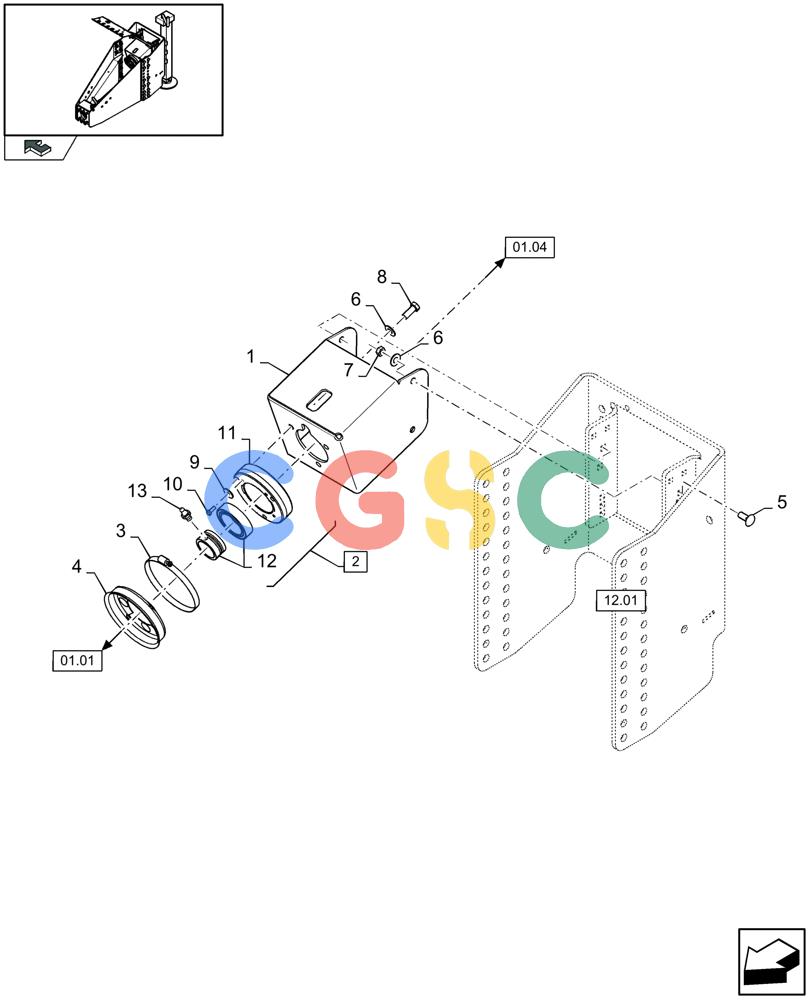

凯斯零件查询(LB333R) - BIG RECTANGULAR BALER 'ROTOR CUTTER' (9/08-12/12) (01.02[01]) - POWER TAKE-OFF, HITCH FRAME Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
679 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87529042
|
[1] |
PLATE
|
ZED
, Serial Range: -C707 Superseded by part number: 84138863
|
| 1. |
84138863
|
[1] |
SUPPORT
|
ZED
, Serial Range: -F708813 Superseded by part number: 84259832
|
| 1. |
84259832
|
[1] |
SUPPORT
|
ZED
, Start Serial: D814
|
| 2. |
87758780
|
[1] |
BEARING ASSY,45 mm ID x 85 mm OD x 52 mm
|
ZED
(11 to 13) Superseded by part number: 87717099
|
| 3. |
573305
|
[1] |
CLAMP,5.56" - 6.5"
|
GI
|
| 4. |
87716646
|
[1] |
SHIELD
|
ZED
|
| 5. |
120044
|
[4] |
CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8
|
NH
|
| 6. |
140046
|
[7] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 7. |
9706685
|
[4] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 8. |
9706687
|
[3] |
BOLT,M12 x 1.75 x 30mm, Cl 8.8
|
NH
|
| 9. |
362776
|
[4] |
WASHER
|
ZED
|
| 10. |
86508568
|
[4] |
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8
|
NH
|
| 11. |
87744011
|
[1] |
BEARING HOUSING,45 mm ID x 85 mm OD x 52 mm
|
ZED
|
| 12. |
9839347
|
[1] |
BEARING ASSY,45mm ID x 85mm OD x 22mm W
|
ZED
|
| 13. |
321204
|
[1] |
LUBE NIPPLE,M6 x 1.0 x 16mm OAL
|
ZED
|
