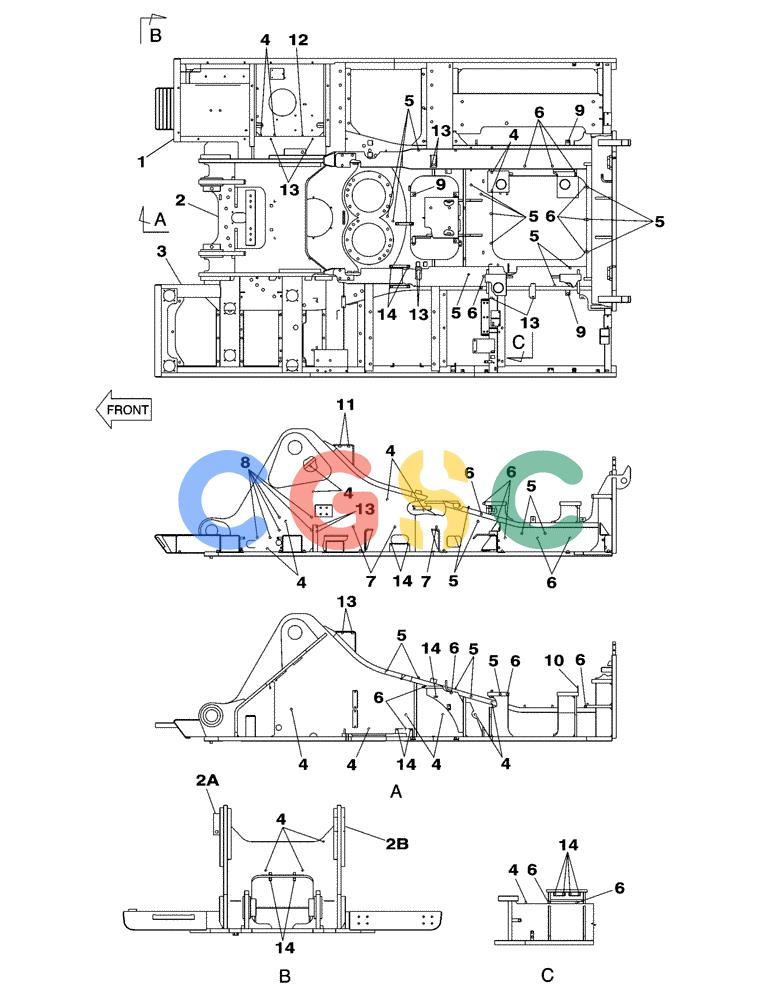

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (09-005-00[01]) - UPPERSTRUCTURE - CHASSIS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
812 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | NSS | [1] | NOT SERVICED SEPARATELY | CONPlatform |
| 1. | KUB0132 | [1] | CHASSIS | SUM |
| 1A. | KHB0044 | [2] | SPECIAL NUT | SUM |
| 2. | KUB0135 | [1] | FRAME | SUM Superseded by part number: KUB10250 |
| 2A. | KUB0193 | [1] | BUSHING | SUM |
| 2B. | KUB0194 | [1] | BUSHING | SUM |
| 3. | KUB0130 | [1] | PLATFORM | SUM |
| 4. | KHB0042 | [20] | SPECIAL NUT | SUM |
| 5. | 158811A1 | [20] | BOSS | SUM |
| 6. | KHR2786 | [19] | BOLT,Spcl | SUM |
| 8. | KHR2921 | [6] | BOLT,Spcl | SUM |
| 9. | 158918A1 | [6] | SPECIAL NUT | SUM |
| 10. | KHB0097 | [1] | BOSS | SUM |
| 11. | 162R016SN | [4] | NUT | SUM |
| 12. | 158810A1 | [1] | BOSS | SUM |
| 13. | 829-1312 | [15] | NUT,M12 x 1.75, Cl 10 | CAS |
| 14. | 162R008SN | [15] | NUT | SUM |
| 15. | KHB0098 | [1] | BASE | SUM |
| 16. | 167112A1 | [2] | BAR | SUM |
| 17. | 168050A1 | [1] | ANGLE | SUM |
