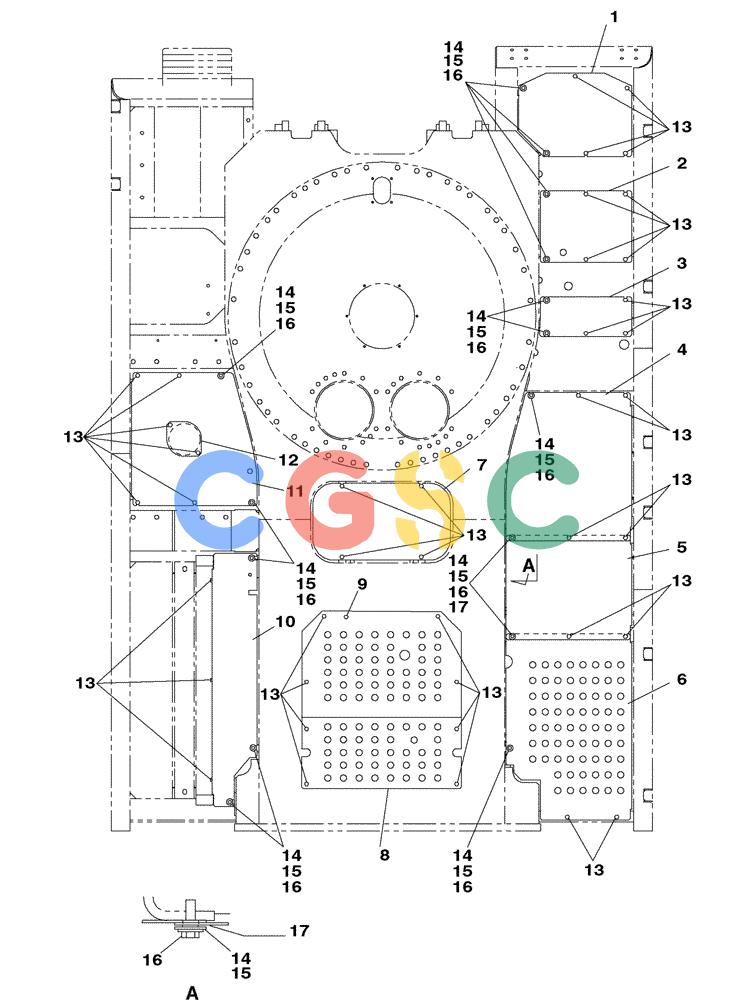

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (09-007-00[01]) - UPPERSTRUCTURE LOWER PANELS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
592 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | KUB0136 | [1] | COVER | SUM |
| 2. | KUB0137 | [1] | COVER | SUM |
| 3. | KUB0138 | [1] | COVER | SUM |
| 4. | KUB0139 | [1] | COVER | SUM |
| 5. | KUB0140 | [1] | COVER | SUM |
| 6. | KUB0141 | [1] | COVER | SUM |
| 7. | KUB0083 | [1] | COVER | SUM |
| 8. | KUB0152 | [1] | COVER | SUM |
| 9. | KUB0151 | [1] | COVER | SUM |
| 10. | KUB0143 | [1] | COVER | SUM |
| 11. | KUB0144 | [1] | COVER | SUM |
| 12. | 158950A1 | [1] | COVER | SUM Superseded by part number: KRB10520 |
| 13. | 162278A1 | [38] | BOLT | SUM |
| 14. | KUB0094 | [17] | SPACER | SUM |
| 15. | 150811A1 | [17] | WASHER | SUMM12 Superseded by part number: 86625255 |
| 16. | 827-12050 | [15] | BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9 | CAS Superseded by part number: 337476 |
| 17. | KHN2061 | [4] | WASHER | SUM |
