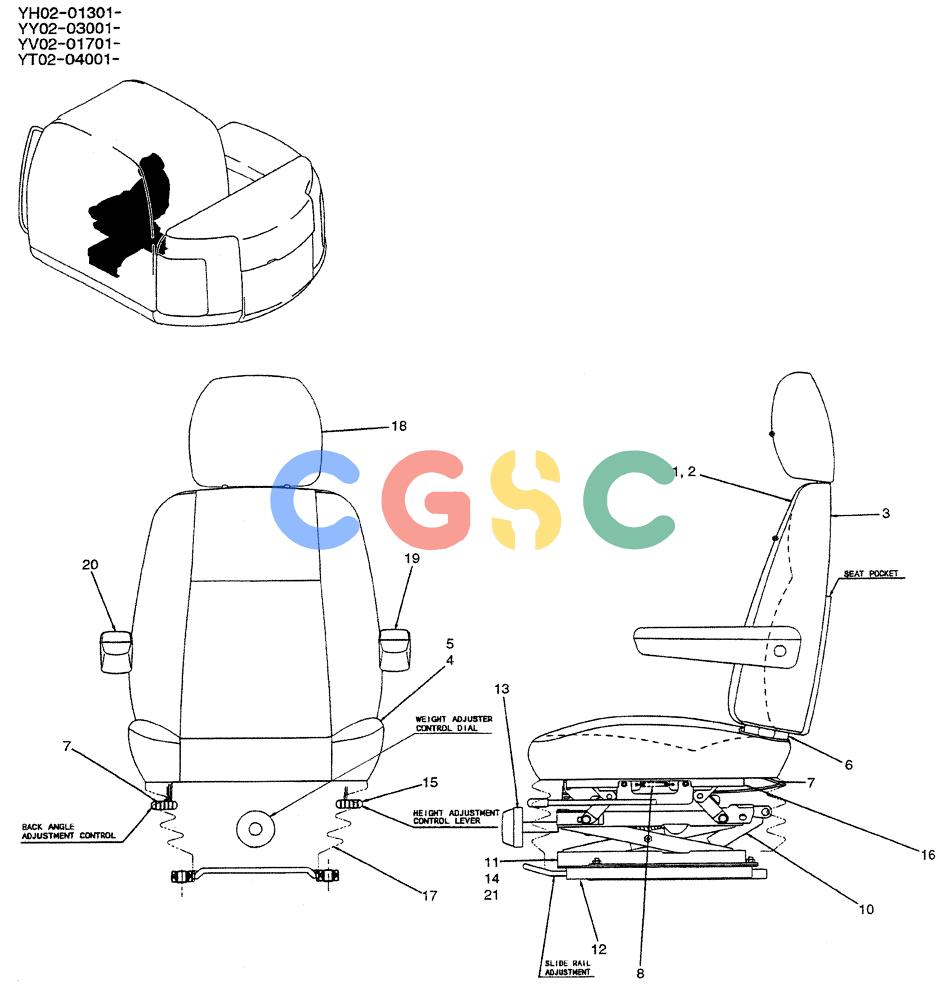

神钢零件查询(ED150-1E) - BLADE RUNNER EXCAVATOR/DOZER ASN YL05-00555 (11/03-12/04) (01-040) - SEAT ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
739 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT25M00025F1 | [1] | SEAT ASSY. | KOB |
| 1. | YT25M00025S001 | [1] | SEAT ASSY. | KOB |
| 2. | YT25M00025S002 | [1] | COVER | KOB |
| 3. | YT25M00025S003 | [1] | SEAT CUSHION | KOB |
| 4. | YN25M00015S004 | [1] | SEAT COVER | KOB |
| 5. | 2448U246S7 | [1] | SEAT CUSHION | KOB |
| 6. | YN25MU0001S006 | [1] | FRAME | KOB |
| 7. | YN25MU0001S007 | [1] | CABLE | KOB Superseded by part number: GG25M00001S007 |
| 8. | 2448U246S11 | [1] | SPRING | KOB |
| 10. | 2448U167S15 | [1] | DAMPER | KOB |
| 11. | 2448U167S14 | [1] | SUSPENSION | KOB |
| 12. | 2448U167S13 | [1] | RAIL ASSY. | KOB |
| 13. | 2448U167S12 | [1] | ADJUSTER | KOB |
| 14. | 2448U167S16 | [1] | STOP | KOB |
| 15. | YN25M00008S014 | [1] | HANDLE | KOB |
| 16. | YN25M00008S015 | [1] | ADJUSTER | KOB Superseded by part number: YN25MU0001S015 |
| 17. | YT25M00010S017 | [1] | COVER | KOB |
| 18. | YN25M00015S017 | [1] | SUPPORT | KOB |
| 19. | YT25M00010S019 | [1] | SUPPORT | KOB Superseded by part number: YW25MU0004S020 |
| 20. | YT25M00010S020 | [1] | SUPPORT | KOB Superseded by part number: YW25MU0004S020 |
| 21. | 2448U167S18 | [1] | KIT | KOB |
