神钢零件查询(ED150-1E) - BLADE RUNNER EXCAVATOR/DOZER ASN YL05-00555 (11/03-12/04) (01-039) - SEAT GROUP Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
648 次

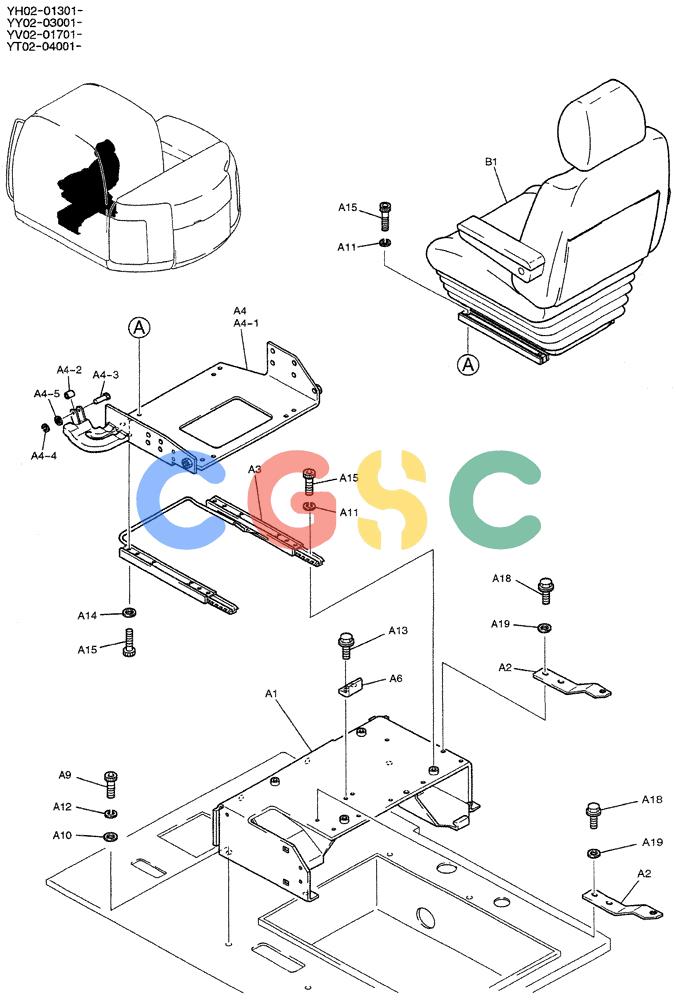

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT25M00026F1 | [1] | SEAT ASSY. | KOB |
| A1. | YT25M01054P1 | [1] | SEAT | KOBSTAND |
| A2. | YT25M01002P2 | [2] | SUPPORT | KOB |
| A3. | YT25M01027F1 | [1] | RAIL ASSY. | KOB |
| A4. | YT25M01059F1 | [1] | SUPPORT | KOBASSY |
| A4-1. | YT25M01058P1 | [1] | SUPPORT | KOB |
| A4-2. | YT03M01066P1 | [1] | ROLLER,12.7mm OD x 19mm L | KOB |
| A4-3. | YT03M01065P1 | [1] | PIN | KOBOD 8.5 x 34.9mm Long |
| A4-4. | ZR36X00700 | [1] | RING | KOBE-Ring -- Shaft 07mm x OD 14mm |
| A4-5. | ZW16X08000 | [1] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| A6. | YN25M01035P1 | [1] | PLATE | KOB |
| A9. | ZS28C10025 | [4] | SCREW,Hex Socket Head, M10 x 25mm | KOBM10x1.50x25mm |
| A10. | ZW16X10000 | [4] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| A11. | ZW26K08000 | [8] | LOCK WASHER | KOBID 08 x OD 13 x Th 2.0mm |
| A12. | ZW26K10000 | [4] | LOCK WASHER | KOBLock -- ID 10 x OD 15.7 x Th 2.5mm Superseded by part number: 12581679 |
| A13. | ZM22C08025 | [2] | BOLT | KOBM08x1.25x25mm (Incls. Washer & Lockwasher) |
| A14. | ZW16X08000 | [4] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| A15. | ZS28C08016 | [12] | SCREW,Hex Socket Head, M8 x 16mm | KOBM08x1.25x16mm |
| A18. | ZM12C08030 | [4] | BOLT | KOBM08x1.25x30mm (Incls. Lockwasher) |
| A19. | ZW16H08000 | [4] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| B1. | YT25M00025F1 | [1] | SEAT ASSY. | KOB(KAI), SEE FIG 01-040 |
| . . | YT25M00027F1 | [1] | SEAT ASSY. | KOB(EU),SEE FIG 01-041 |
