沃尔沃零件查询4.3GXi-F; 4.3GXi-FF; 4.3OSi-F; 4.3OSi-FFEngineCamshaft and Valve TrainEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
942 次

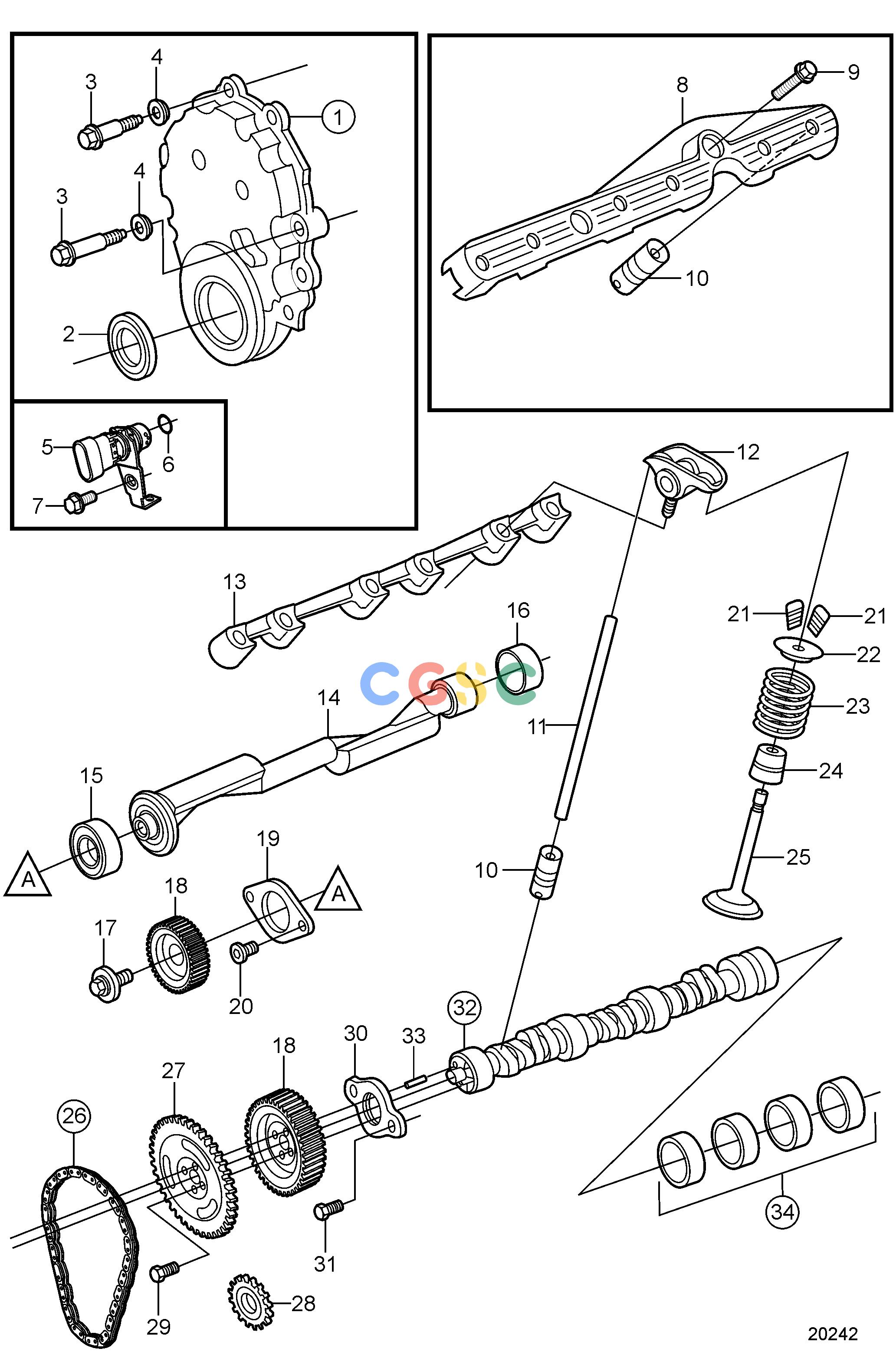

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21351088
|
[1] |
Cover
|
|
| 1. |
|
|
|
|
| 2. |
3862262
|
[1] |
Seal
|
|
| 3. |
3855736
|
[2] |
Screw
|
|
| 3. |
3855737
|
[6] |
Screw
|
|
| 4. |
3855739
|
[8] |
Grommet
|
|
| 5. |
3858979
|
[1] |
Sensor
|
|
| 6. |
3859009
|
[1] |
O-ring
|
|
| 7. |
3858983
|
[1] |
Bolt
|
|
| 8. |
3855825
|
[2] |
Guide
|
|
| 9. |
3855817
|
[4] |
Bolt
|
|
| 10. |
3855811
|
[12] |
Valve tappet
|
|
| 11. |
3856118
|
[12] |
Push rod
|
|
| 12. |
3861873
|
[12] |
Rocker arm
|
|
| 12. |
|
|
|
|
| 13. |
3861874
|
[2] |
Support
|
|
| 14. |
3857715
|
[1] |
Shaft, balance
|
|
| 15. |
3850519
|
[1] |
Bearing
|
|
| 16. |
3854315
|
[1] |
Bearing
|
|
| 17. |
3854320
|
[1] |
Bolt
|
|
| 18. |
3854314
|
[1] |
Gear
|
Set
|
| 19. |
3854317
|
[1] |
Retainer
|
|
| 20. |
3853172
|
[2] |
Screw
|
|
| 21. |
3855823
|
[24] |
Valve cotter
|
|
| 22. |
3855816
|
[12] |
Valve cap
|
|
| 23. |
3855815
|
[12] |
Valve spring
|
|
| 24. |
3855814
|
[6] |
Valve stem seal
|
Inlet
|
| 24. |
3862362
|
[6] |
Valve stem seal
|
Exhaust
|
| 25. |
3855810
|
[6] |
Valve
|
Std
|
| 25. |
3855808
|
[6] |
Valve
|
Std
|
| 26. |
3859021
|
[1] |
Kit, timing chain, gears
|
|
| 26. |
|
|
|
|
| 27. |
|
|
|
|
| 28. |
|
|
|
See Crankshaft section
|
| 29. |
3854330
|
[3] |
Bolt
|
|
| 30. |
3854329
|
[1] |
Retainer
|
|
| 31. |
3854323
|
[2] |
Bolt
|
|
| 32. |
3854328
|
[1] |
Camshaft
|
|
| 33. |
3857717
|
[1] |
Pin
|
|
| 34. |
3856778
|
[1] |
Bearing
|
|
